7. INSTALLATION PROCEDURE

1. Insert the attached remote bush into the remote pipe and push it up until it will go no further.

2. Assemble the remote unit and secure it using the four cap screws (C-5x25).

3. Insert two connectors into the scale unit.

4. Secure the remote blind plate using the two screws (B-4x8).

5. Attach the meat platter.

NOTE: Care must be taken when handling the remote unit because of the display tube and PC board

installed in it.

CAUTION: Never place the scale upside down. Doing so will cause an error in weigh operation.

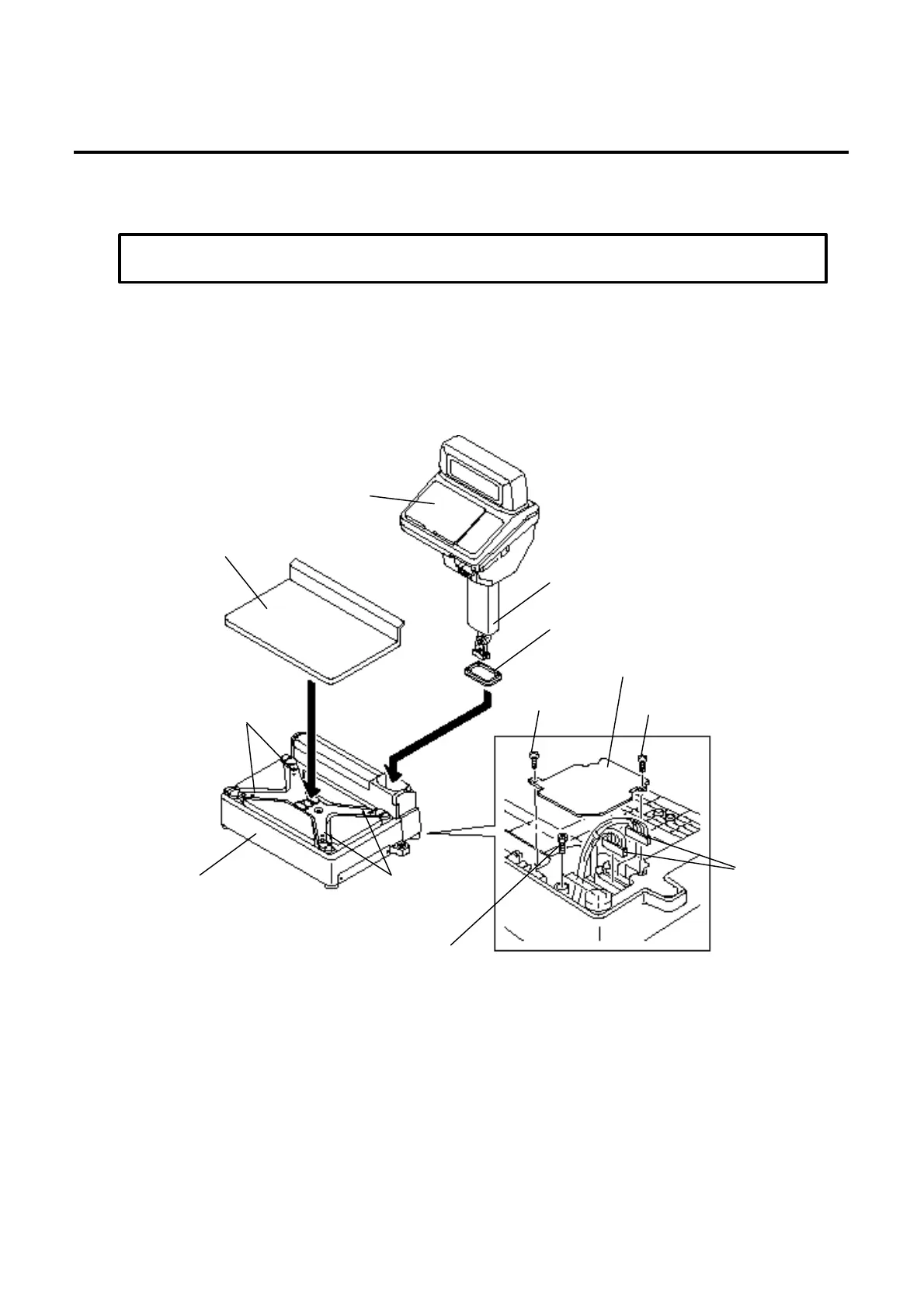

Remote Pipe

Remote Bush

Remote Unit

Meat Platter

Scale Unit

Stopper Screw

Screw (B-4x8)

Remote Blind Plate

Screw (B-4x8)

Cap Screw

(C-5x25)

Connector

Stopper Screw
