11. PROGRAMMING PROCEDURES
11.21 FREE FORMAT SETTING
11-32
11.21 FREE FORMAT SETTING
Menu Page: 3
Item No.: 1
When using 57-mm wide labels, up to three print formats can be changed freely. Moreover,
characters can be rotated and magnified, and print items are selectable.
Enter the coordinate of each print item’s lower left corner using the lower left corner of a label as the
origin. When a print item is located beyond the label width, an error will occur.

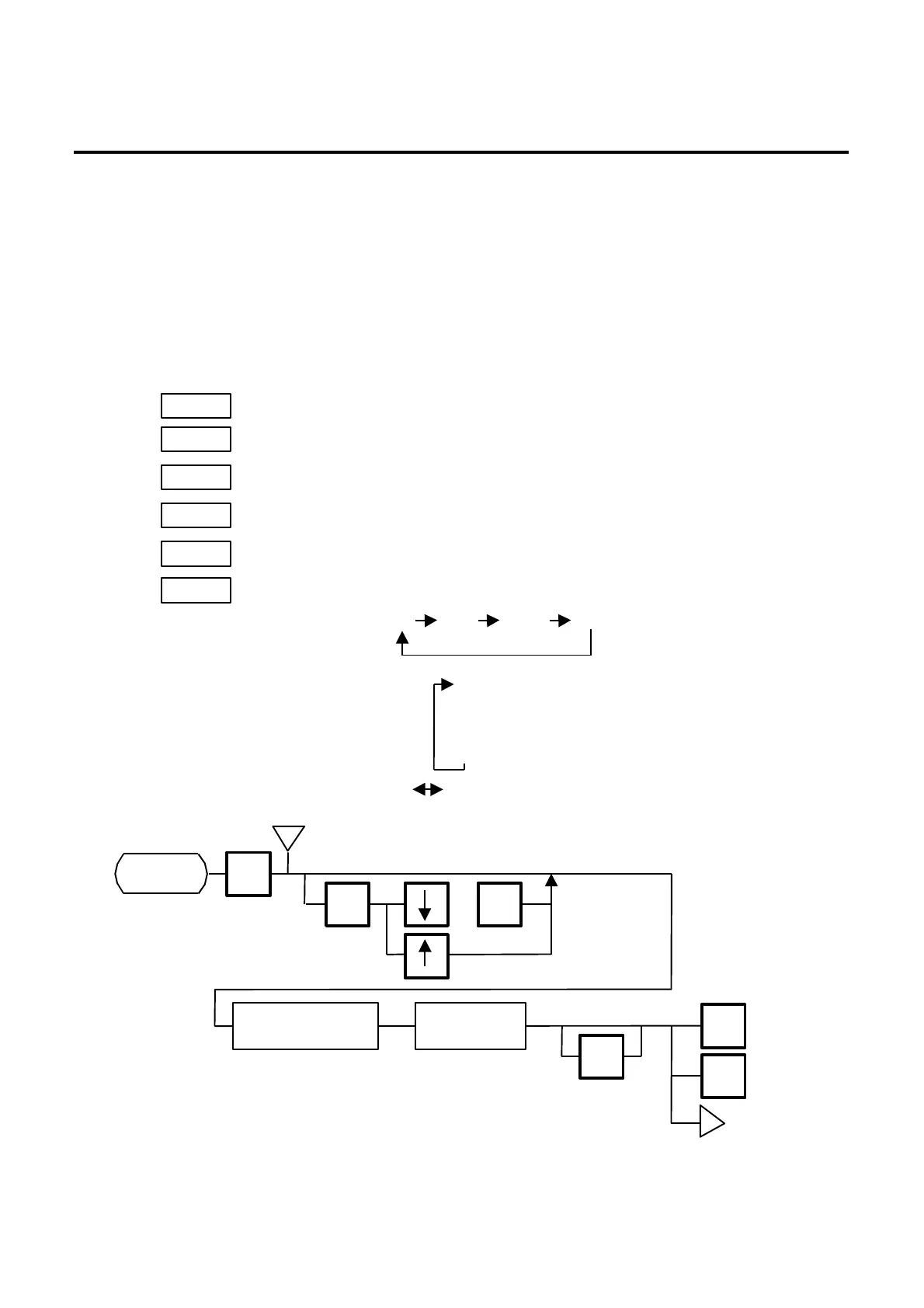

Key functions
① : Moves downward (Data is stored.)
② : Moves downward (Data is stored.)
③ : Moves upward (Data is stored.)
④ : Moves to the right
⑤ : Moves to the left
⑥ : Selects a setting
a. ROT (Rotation) : 0° 90° 180° 270°
b. MAG (Magnification) : 0: normal
1: × 2 (width)
2: × 2 (height)
3: × 4 (width: x 2, height: x 2)
c. PRT (Print) : ON OFF
↓
ENTER
↑
→
←
◇
or
1
<MENU>
Page 3
ENTER
PROG.
ESC.
<MENU>
Page 3
Main
<MENU>
t
t
Select a print item
to be re-located.
1
Change the
coordinate.
TEST
Select data format
Tset print
(See NOTE 4.)
