11.14 IN-LINE/LOCAL
Menu Page: 2
Item No.: 3
When the SL-9000 is used as a satellite in an in-line system, the “ID #” and “Transmission delay time”
can be set by the following procedure.
NOTES: 1. The TMCC baud rate is fixed to 4800 BPS.
2. After setting the ID #, turn the power switch OFF and ON again.
3. This setting is not available in case that the Initial set #13-6 is set to 1 (LAN: allowed).
g Table 5: Transmission Delay Time Table
TR-Time (ms) TR-Time (ms)
1 20 - 39 6 120 - 139
2 40 - 59 7 140 - 159
3 60 - 79 8 160 - 179
4 80 - 99 9 180 - 199
5 100 - 119

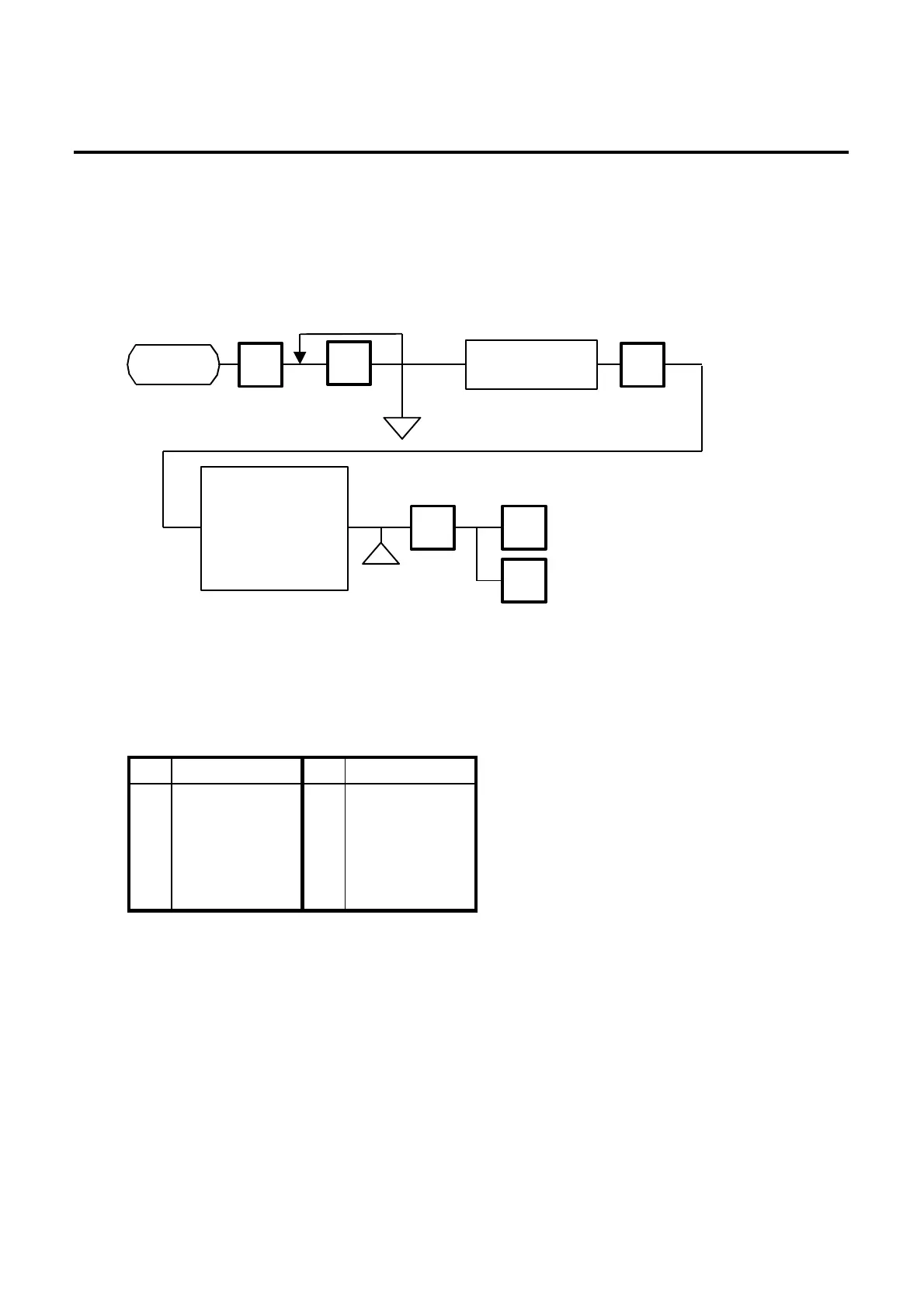

3
<MENU>
Page 2
PROG.
ESC.
<MENU>
Page 2
Main
<MENU>
l
ENTER
The transmission
delay time can be
set when in-line
system is selected
for TMCC.
(Refer to Table 5)
Select mode
TMCC
Set ID numbers
(Range: 0-255)
ENTER
OFF-line
l
◇
The default is 3.
