3/6/2018 Proprietary and Confidential - Technicolor 7
Cable port (Item C)
The CGA4131 complies with DOCSIS 3.0, 3.1 standards along with Packet Cable™
specifications to deliver high-end performance and reliability.
USB port (Item D)
USB port is used to connect USB devices.
Power inlet (Item E)
The power inlet (Power) allows connecting the power cord.
Bottom panel
The following images depict the bottom panel view of the CGA4131 TCH2-GA-TBR.

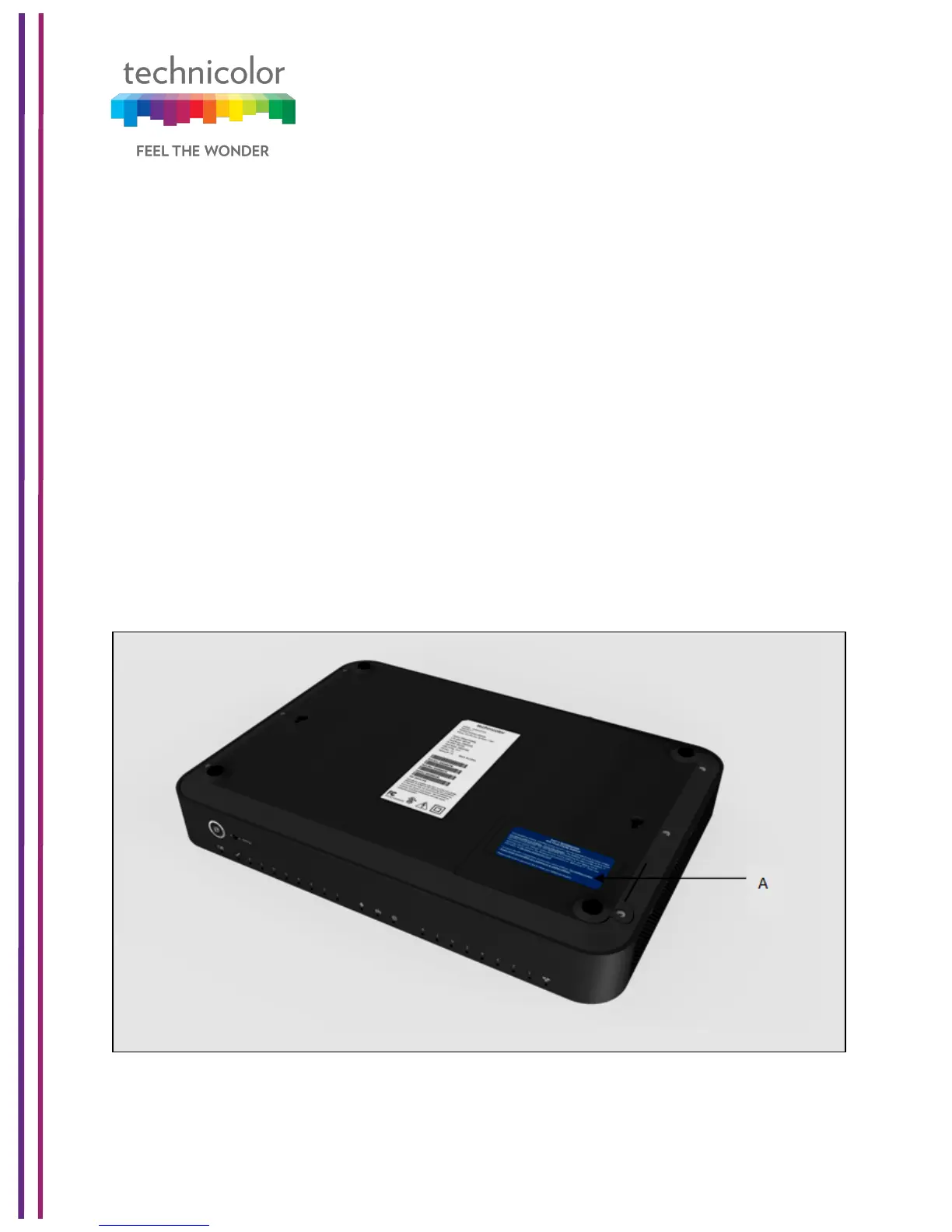

Figure 1.5 shows Bottom panel with Battery Compartment with door on (Item A).
Battery Slot (Item A)
Accommodates devices’ backup battery (optional)
Figure 1.5
