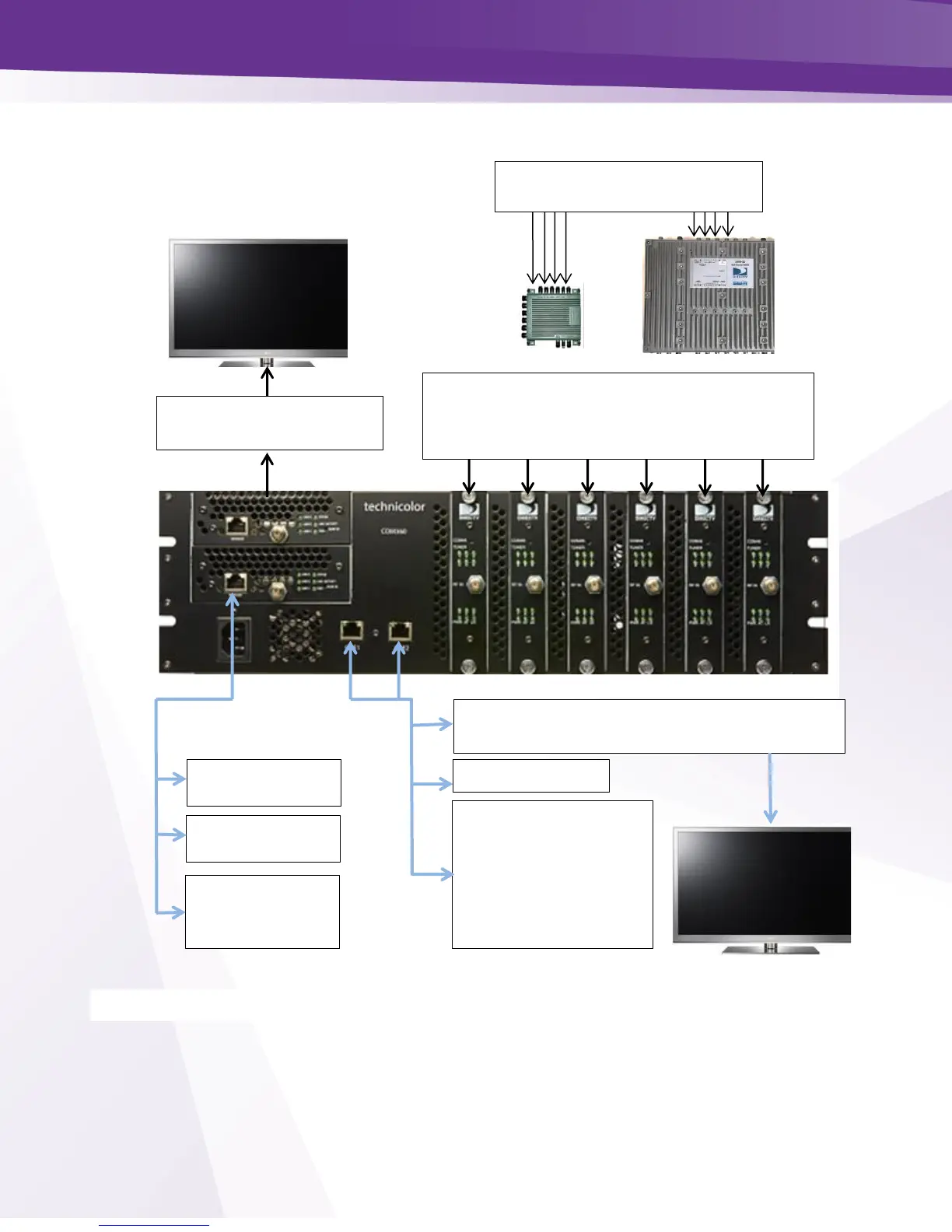

Refer to Figure 1 below for a diagram illustrating a complete COM2000 system
.
Pro:Idiom Enabled
Television
Pro:Idiom encrypted signal to IP Distribution
Network - Multicast IGMP Switches
External QAM
VLAN Router
Local Admin PC
Technicolor
Remote Access
Web Server
Management
Ports 100Mbps
GIGe
Ports /
Switch
From Satellite Distribution to
SWiM Switches
External Sources
ATSC-8
Hard Drive
PC / VLC
EAS
ZyCast Media Ser
ver
Pro:Idiom Enabled
IP Television
RF signal to COM46 input.
Each COM46 card requires a SWiM 8 input
-55 to -25dBm all transponders
Pro:Idiom encrypted
signals to RF Distribution
Figure 1 - COM2000 System Overview
11
13
