16.14 Loading Data from the Tuners
From the factory, the ATSC-8 tuners will not be tuned to any channels or streaming any data,
however you may have a unit set up which has already been tuned and you’d like to see what
each tuner is playing.
As shown in Figure , from the ATSC page, you can click the LOAD button to have the device
send a report back to the COM2000 interface to see what the current configuration is set to.
Once you have run the load function, return to the ATSC page to see the results.

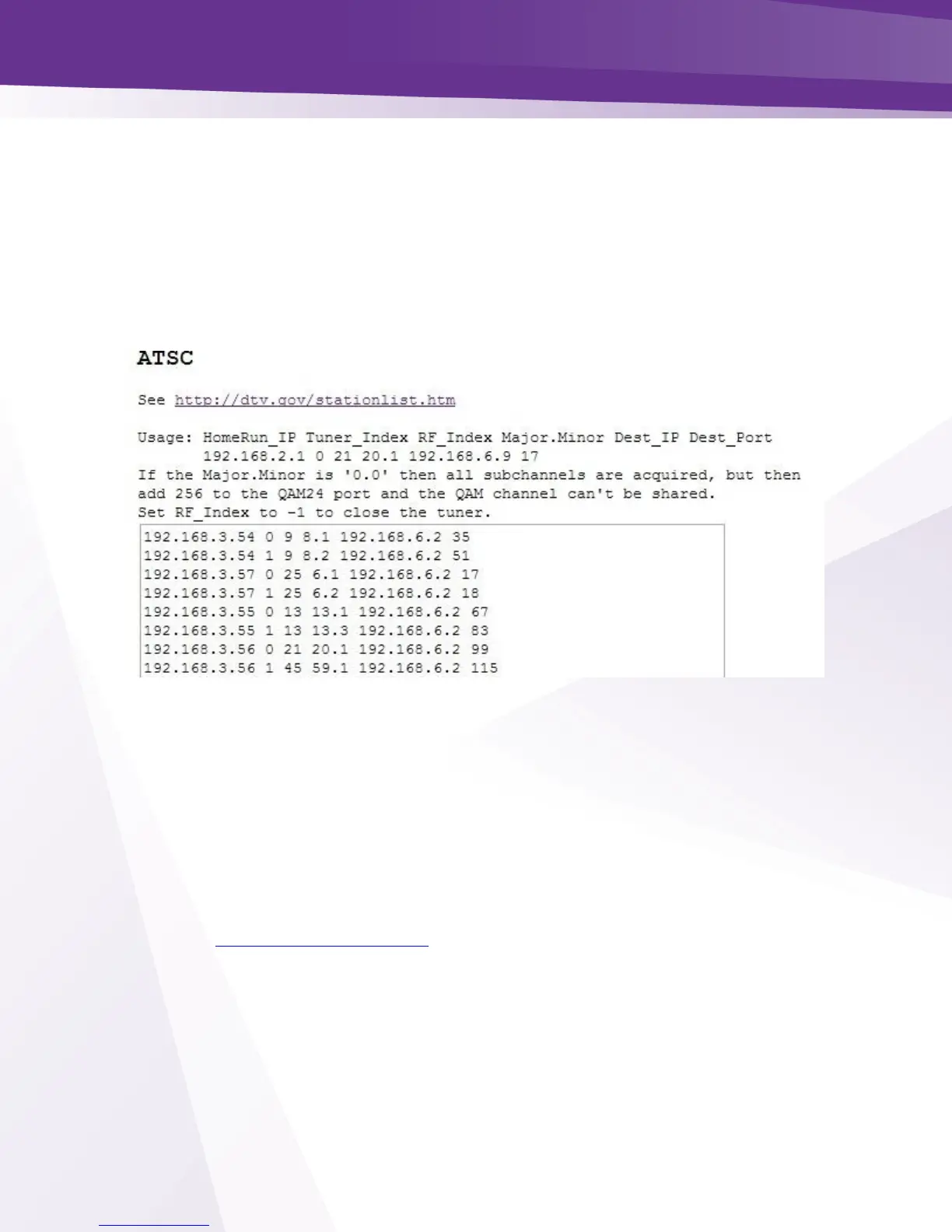

Figure 100 - ATSC Load Function
Figure above shows which tuner is tuned to each RF frequency, as well as which QAM IP
address and port number each channel has been assigned.
16.15 Changing the Tuning Table
The tuning table can easily be changed by creating or editing the command lines for each of the
8 available tuners. You can verify frequencies and virtual channel numbers in your specific area
by using the http://dtv.gov/stationlist.htm website. Note that some channels will be on the same
frequency as the virtual channel number, but most channel numbers will have a different
frequency listing. For example, channel 8 in Indianapolis, is actually broadcast on channel 9.
