Page 46
7.9 COM46 Software Reset
The information shown in Figure 29 below is one of the subsections available on the Advanced
Edit page.

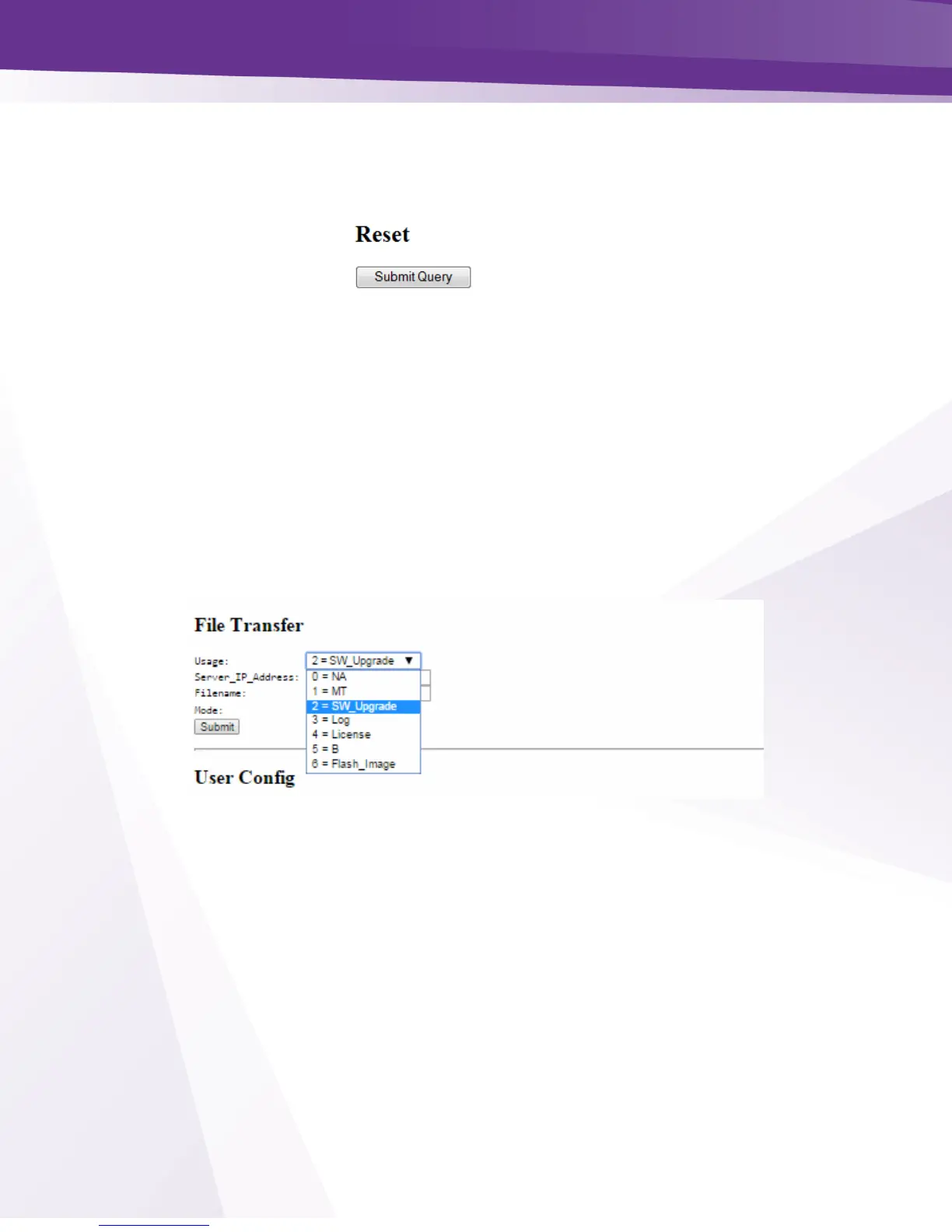

Figure 29 - Reset Interface
This section allows you to initiate software reset on the card identified in the “CardIP” field. This
is sometimes helpful in situations where a card has become non-responsive. Activating this feature
is the equivalent to pushing the recessed reset button on the face of the COM46 card, and has a
similar effect as pressing the small reset button on a traditional set-top box.
7.10 COM46 File Transfer Utility
The information shown in Figure 30 below is one of the subsections available on the Advanced
Edit page.
Figure 30 - File Transfer Interface
