From our previous discovery, we showed both the known IP addresses and the AutoIP
addresses for each of the 4 addressable tuners in the ATSC-8. When making the requested IP
address change, each device receives 2 commands to change the IP with the second command
resulting in the change. As shown in Figure , the 4 tuners will have an IP address of
192.168.3.54, 192.168.3.55, 192.168.3.56 and 192.168.3.57. You can verify by again using the
DISCOVER button from the ATSC page. *Note that although the above screen shows the Auto-
IP addresses being changed, in fact they are not. A new DISCOVER command will show only
the variable addresses that have actually been changed.

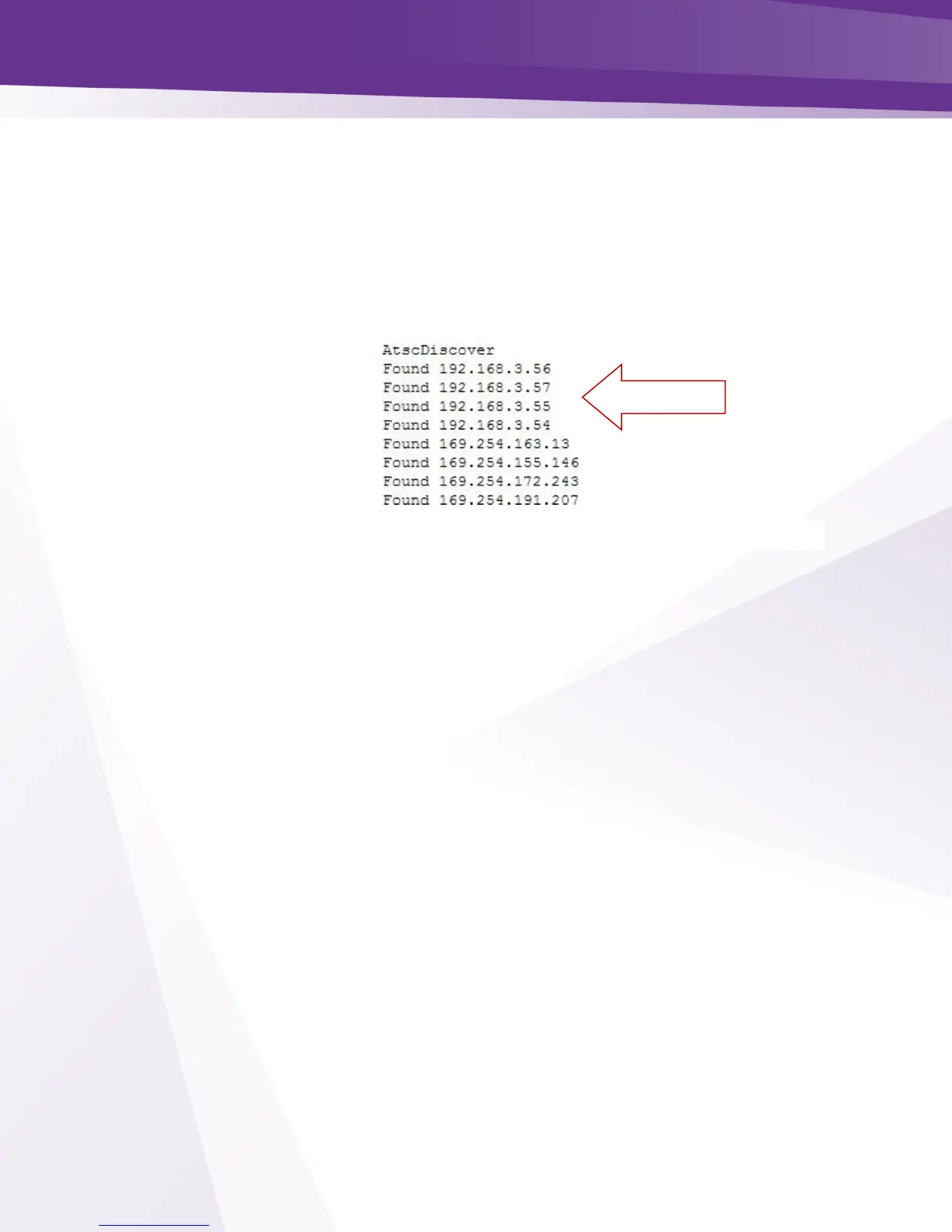

Figure 99 - ATSC Discover
