RID - This field reports the DIRECTV Receiver ID, or RID. This value is the first of two
parameters required to obtain authorization on the DIRECTV network.
CAM_ID - This field reports the DIRECTV CAM ID. This value is the second parameter
required to obtain authorization on the DIRECTV network. You can click on the hyperlink in
this column to be taken directly to that card’s CAM Log (see Section 6.2.4 for more
information on reading a card’s CAM log).
Serial_Number – This field contains the unique electronic serial number of the board
assigned at the time of manufacture.
Authorized – This field reports whether the COM46 card’s CAM has been authorized. A
value of ‘1’ indicates that the card has been authorized, thereby enabling the card to receive
DIRECTV programming. A value of ‘0’ indicates that the card has not been authorized.
Paired – This field reports the pairing status of the CAM card. In order to be capable of
receiving an authorization to the DIRECTV network, the RID and CAM data must first be
paired. If this has not happened, then the card cannot be authorized until the pairing is
resolved. A value of ‘1’ indicates that the RID and CAM are successfully paired; a value of ‘0’
indicates that they are not.
SW_Version – This field reports the software version that currently resides on the COM46
card. All cards that have a similar web interface to the one described in this document will
have a version number of at least ST03.02.21.
Up_Time – This field gives an indication of how much time has elapsed since the card was
last rebooted or powered up.
Upgrade – By checking this box for a particular card, you will make each of the fields at the
bottom of the screen active for that card. This allows you to upgrade multiple cards at a time.

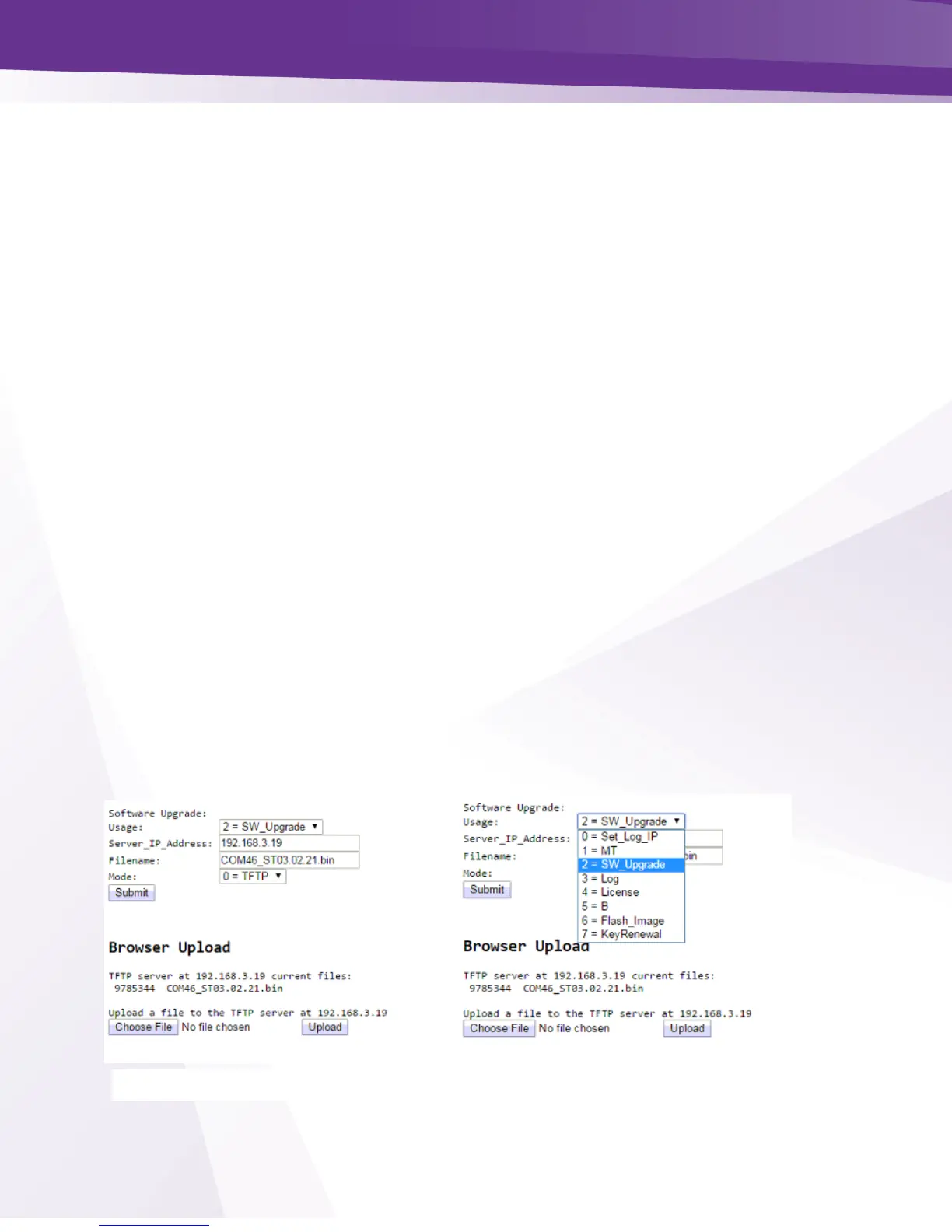

Figure 39 below shows in detail the upgrade section available on the PairingInfo page.
Figure 39 - COM46 Multi Card Upgrade
