Technifor XF510Cr User Manual

AOperating instructions for the machine
B
Ref. DCD01/3074 - XF510Cr-Sr-Dr_en_C
9/31

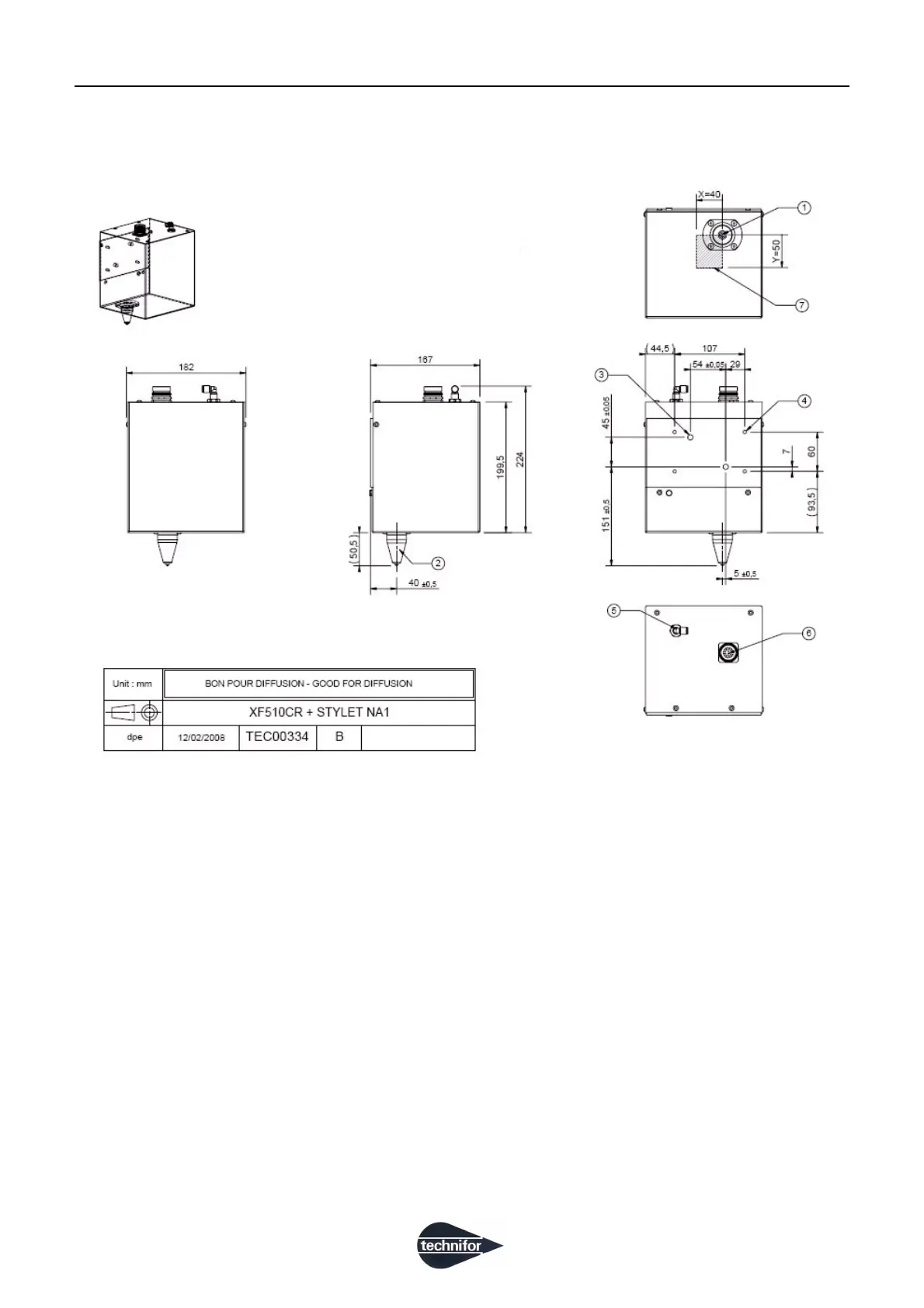

4. Dimensional drawings
 XF510Cr
1 : Origin
2 : Stylus NA1
3 : Head positioning: 2 Ø8E8 (max. depth 8 mm (0.315 in))
4 : Head attachment: 4 M6 (max. depth 8 mm (0.315 in))
5 : Pneumatic connection for Ø4x6 tube
6 : Electrical connector
7 : Marking area: 40 mm (1.575 in) x 50 mm (1.969 in)
