B
Ref. DCD01/3074 - XF510Cr-Sr-Dr_en_C
7/31
BOperating instructions for the machine
1. Description of the machine
The XF510Cr/Sr/Dr is a numerically controlled scribing marking machine.
Integrated in a special machine or on a production line, this compact head is the ideal solution for marking parts of
various shapes and sizes, whether flat or curved.
It is integrated on a mounting plate with M6 fixing screws and two positioning holes (Ø 8E8).
This machine works by moving the stylus along the X and Y axes of a grid.
The Control Unit uses its internal software to process the marking commands. This combination of technologies
allows for rapid marking of alphanumeric characters and logos.

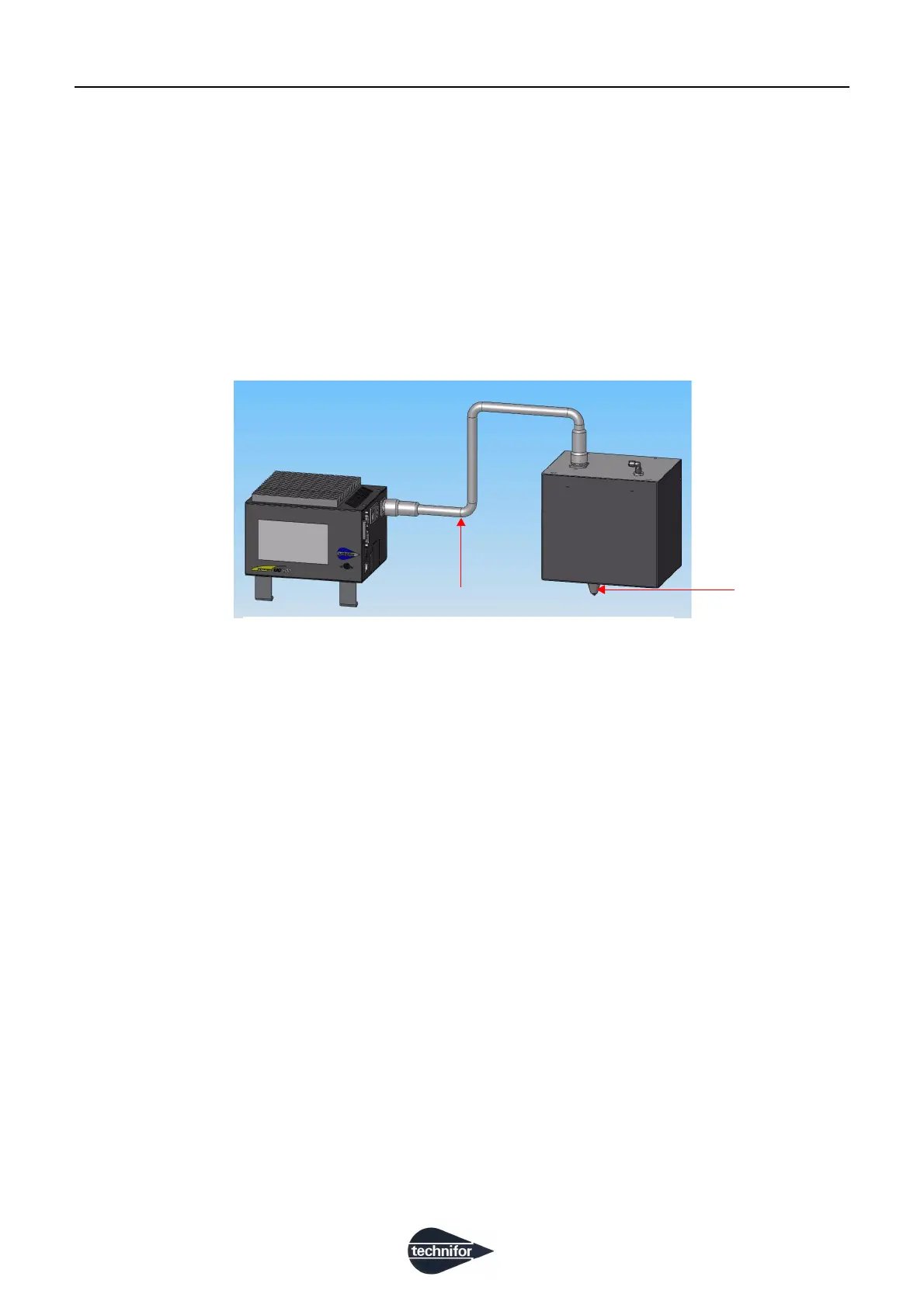

1 : Head/CCU connecting cable
2 : Stylus
1
XF510r marking head Control Unit: UC500
2
