EXCITE/EXCITE+ LINE - ASSEMBLY KIT VISIO/VISIOWEB-UNITY3.0
Installation Manual UNITY 3.0- Rev. 1.0
e-mail: support@technogym.com
Pag. 11
3. PASSIVE EQUIPMENT: UNITY 3.0 INSTALLATION INSTRUCTIONS
The following procedure describes the installation steps of UNITY 3.0 on the New Recline
equipment. This procedure is applicable to EXCITE, EXCITE+ passive equipment.
For the following procedure, switch o the equipment and disconnect the power cable from the wall
outlet.
ESTIMATED TIME: 1h. N° of TECHNICIANS NEEDED: 1.
All Assembly Kits include the UNITY 3.0 assembled with black frame. In addition, the kit contains
the grey frame. Before mounting the display, ask the customer if he wants the black or grey frame. If
necessary, replace the frame.
3.1 DISASSEMBLING THE DISPLAY

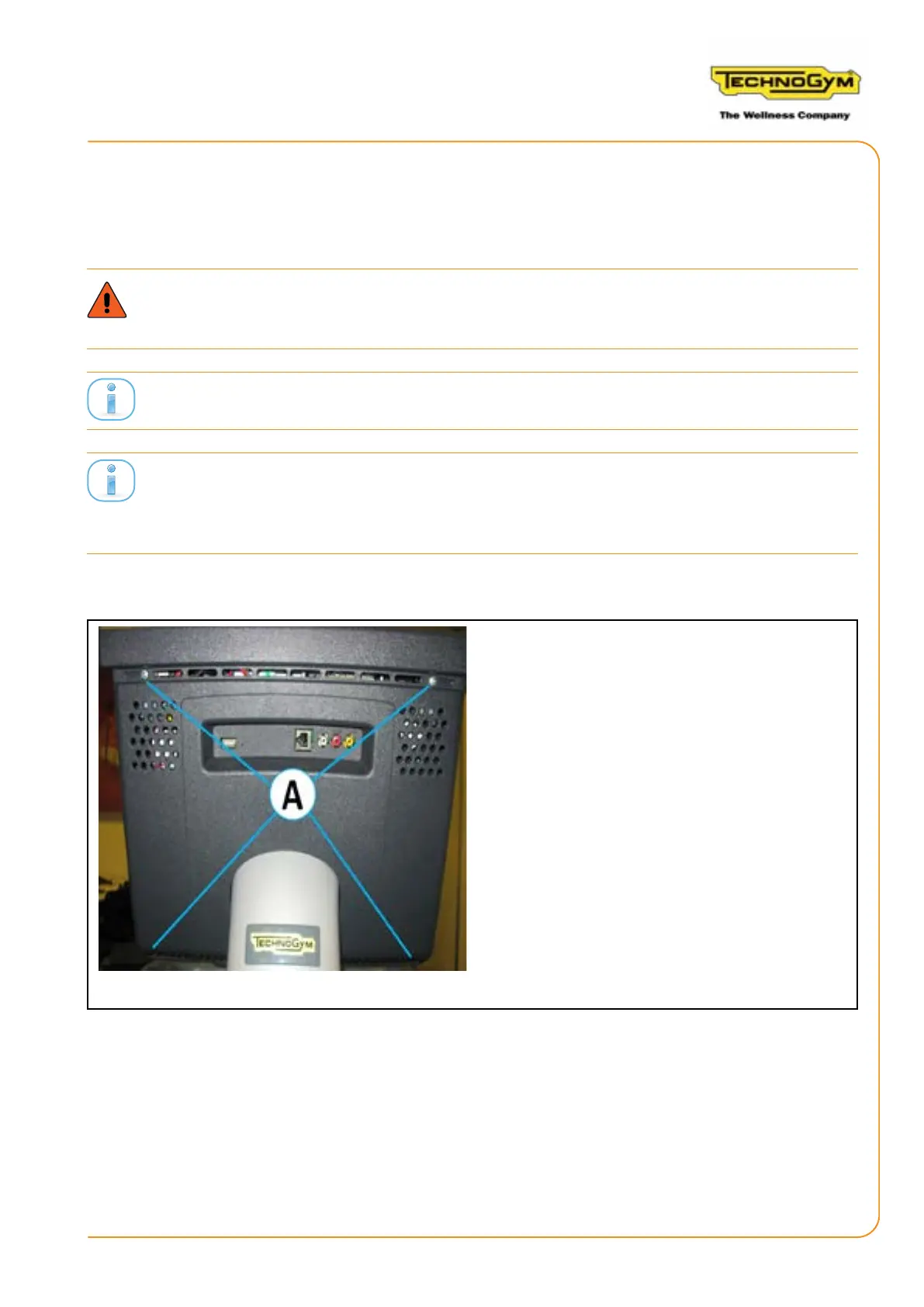

1. Remove the 4 screws (A), on the rear of the
display, using a medium Phillips screwdriver.
To Next Page
