EXCITE/EXCITE+ LINE - ASSEMBLY KIT VISIO/VISIOWEB-UNITY3.0
Installation Manual UNITY 3.0- Rev. 1.0
e-mail: support@technogym.com
Pag. 25

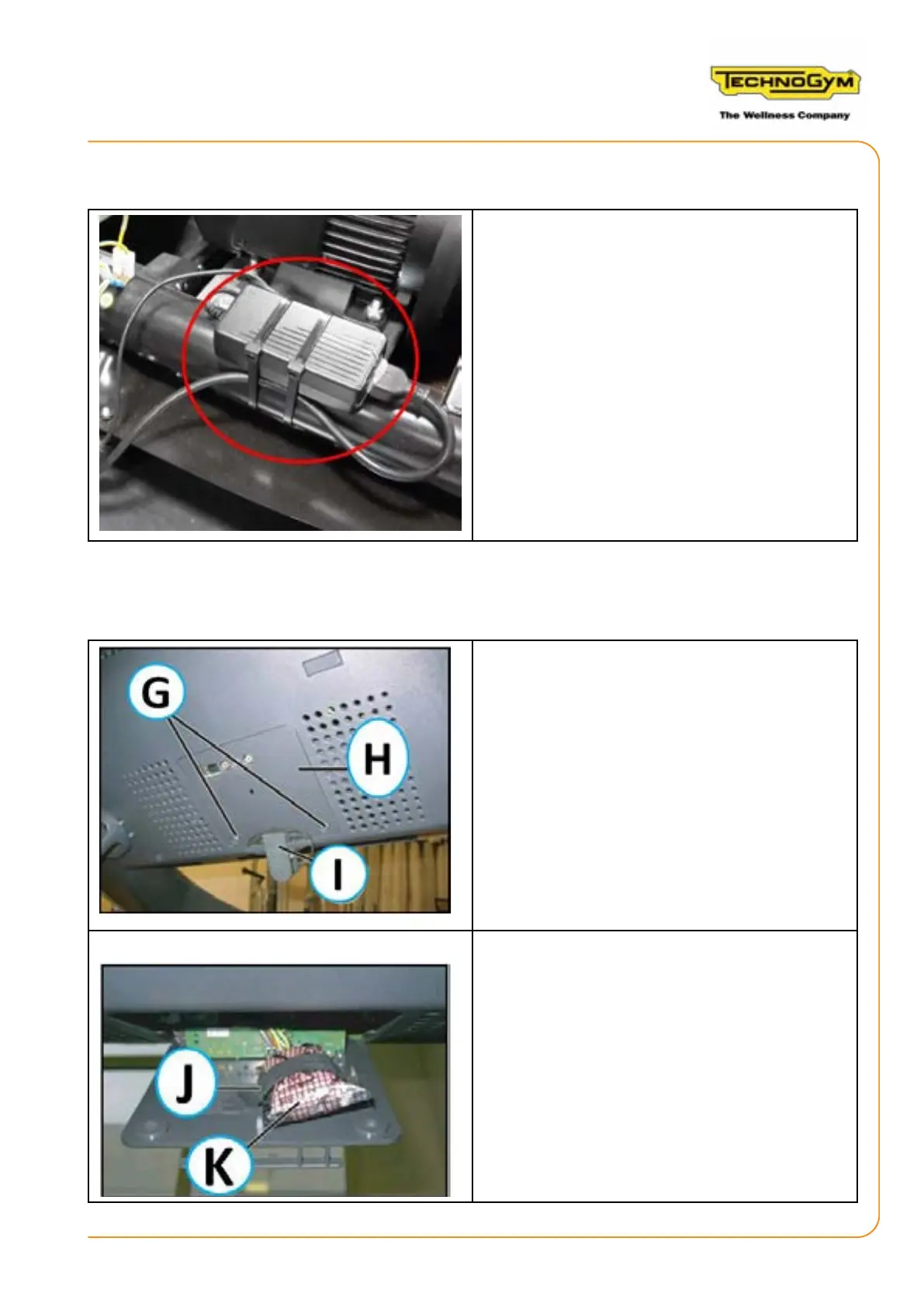

4.4 DISASSEMBLING THE EXTRA POWER SUPPLY
1. Cut the two cable ties and remove the extra
power supply from the equipment.
4.5 DISASSEMBLING THE HS/HR CARDIO RECEIVER (CHEST BELT/HAND
SENSOR)
1. Release the emergency cable (I) from its hou-
sing.
2. Back o the 2 screws (G) using a medium
Phillips screwdriver.
3. Remove the inspection plug (H).
4. Remove the adhesive tape (or the cable tie)
(J) and the nylon bag (K), from the cardio re-
ceiver.
5. Remove the sponge.
