EXCITE/EXCITE+ LINE - ASSEMBLY KIT VISIO/VISIOWEB-UNITY3.0
Installation Manual UNITY 3.0- Rev. 1.0
e-mail: support@technogym.com
Pag. 32
4.7 CABLES CONNECTION

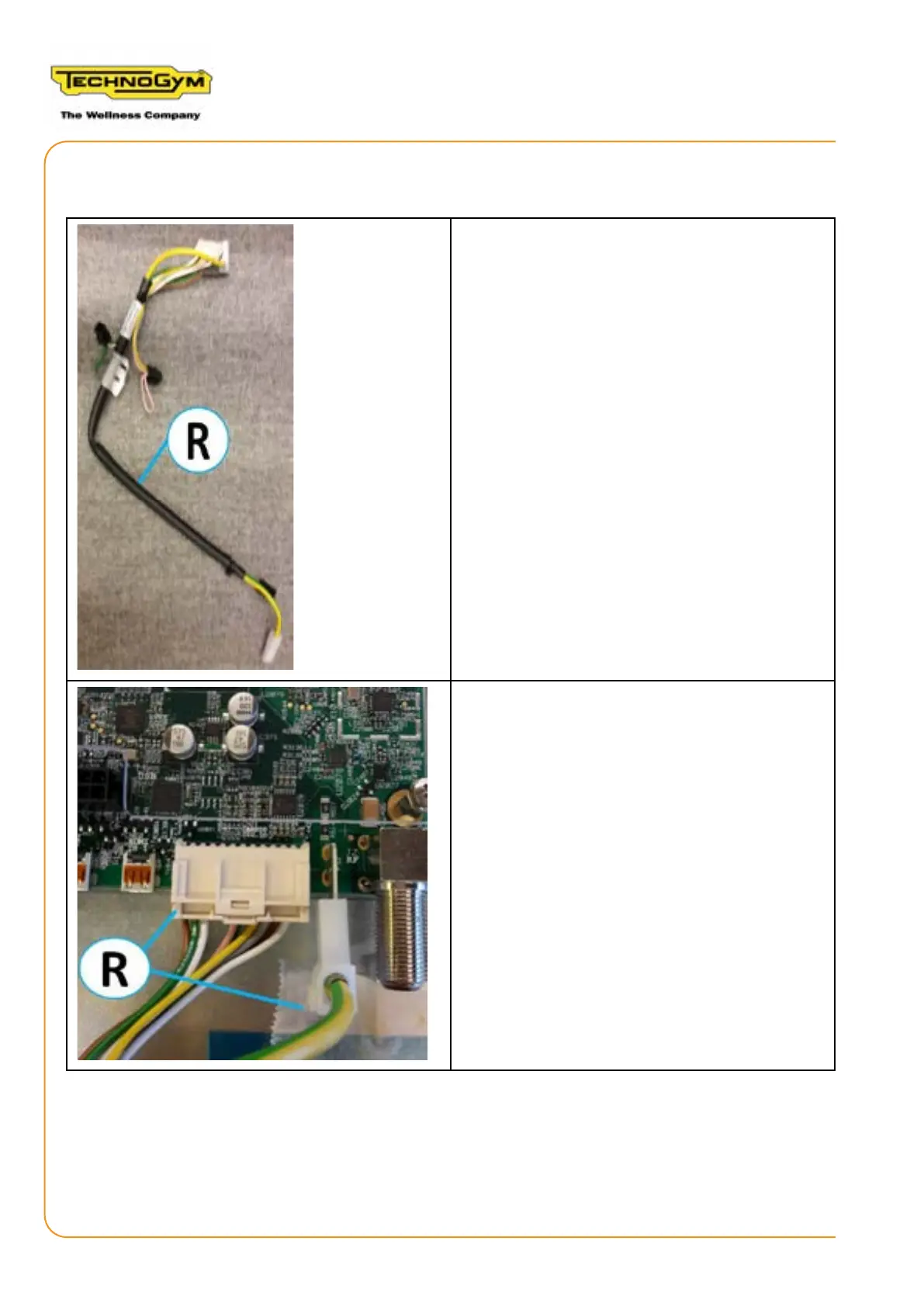

1. Remove the cable 0WCU0244xx from the
cardio receiver, using a at screwdriver, and
replace the cable with the joystick+cardio adap-
ter cable 0WCU0690xx (R), provided in the kit.
2.Connect the 24-pole connector of the cable
(R) 0WCU0690xx to the connector CN21 (CAR-
DIO DIG.IO) of the CPU board.
3.Connect the ground of the cable (R) to the
metal sheet beside the connector CN21.
