EXCITE/EXCITE+ LINE - ASSEMBLY KIT VISIO/VISIOWEB-UNITY3.0
Installation Manual UNITY 3.0- Rev. 1.0
e-mail: support@technogym.com
Pag. 33

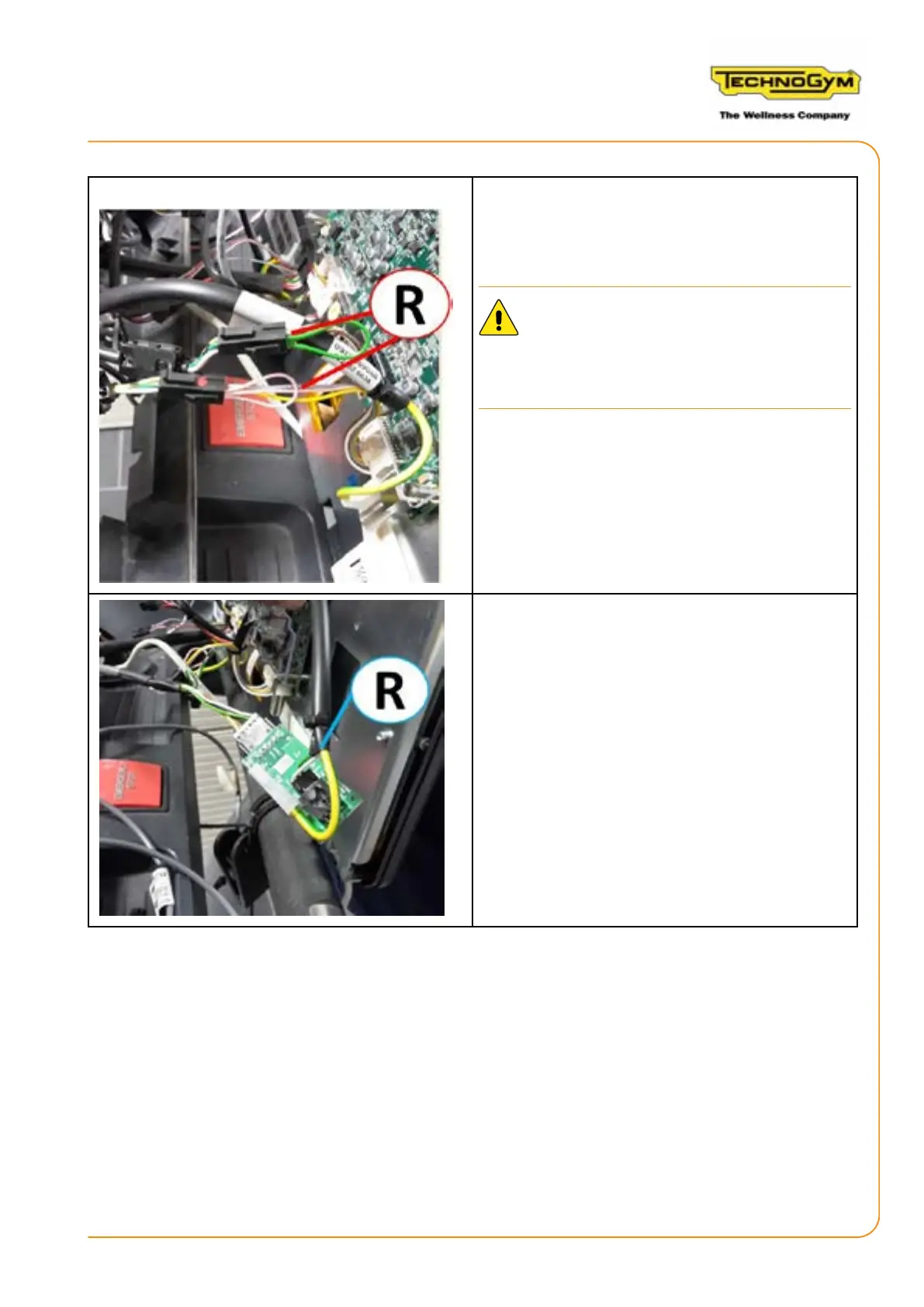

4.Connect the two joystick cables to the two
ying connectors of the cable (R) 0WCU0690xx.
WARNING: The right joystick must be con-
nected to the connector with red circle. The
left joystick must be connected to the black
cable.
5.Connect the at connector of the cable (R)
and the ground of the cable (R), to the cardio
receiver board.
