EXCITE/EXCITE+ LINE - ASSEMBLY KIT VISIO/VISIOWEB-UNITY3.0
Installation Manual UNITY 3.0- Rev. 1.0
e-mail: support@technogym.com
Pag. 38
4.8 REASSEMBLING THE DISPLAY
To reassemble the guards, carry out the steps (from point 1 to point 5) described at the paragraph
“4.6 replacement of the high kit-low kit connection cable”, in reverse order.
To reassemble the display, carry out the steps described at the paragraph “4.2 disassembling the
DISPLAY”, in reverse order.
4.9 REASSEMBLING THE CARDIO RECEIVER
To reassemble the cardio receiver, carry out the steps described at the paragraph “4.5 disassem-
bling the hs/hr cardio receiver (chest belt/hand sensor)”, in reverse order.

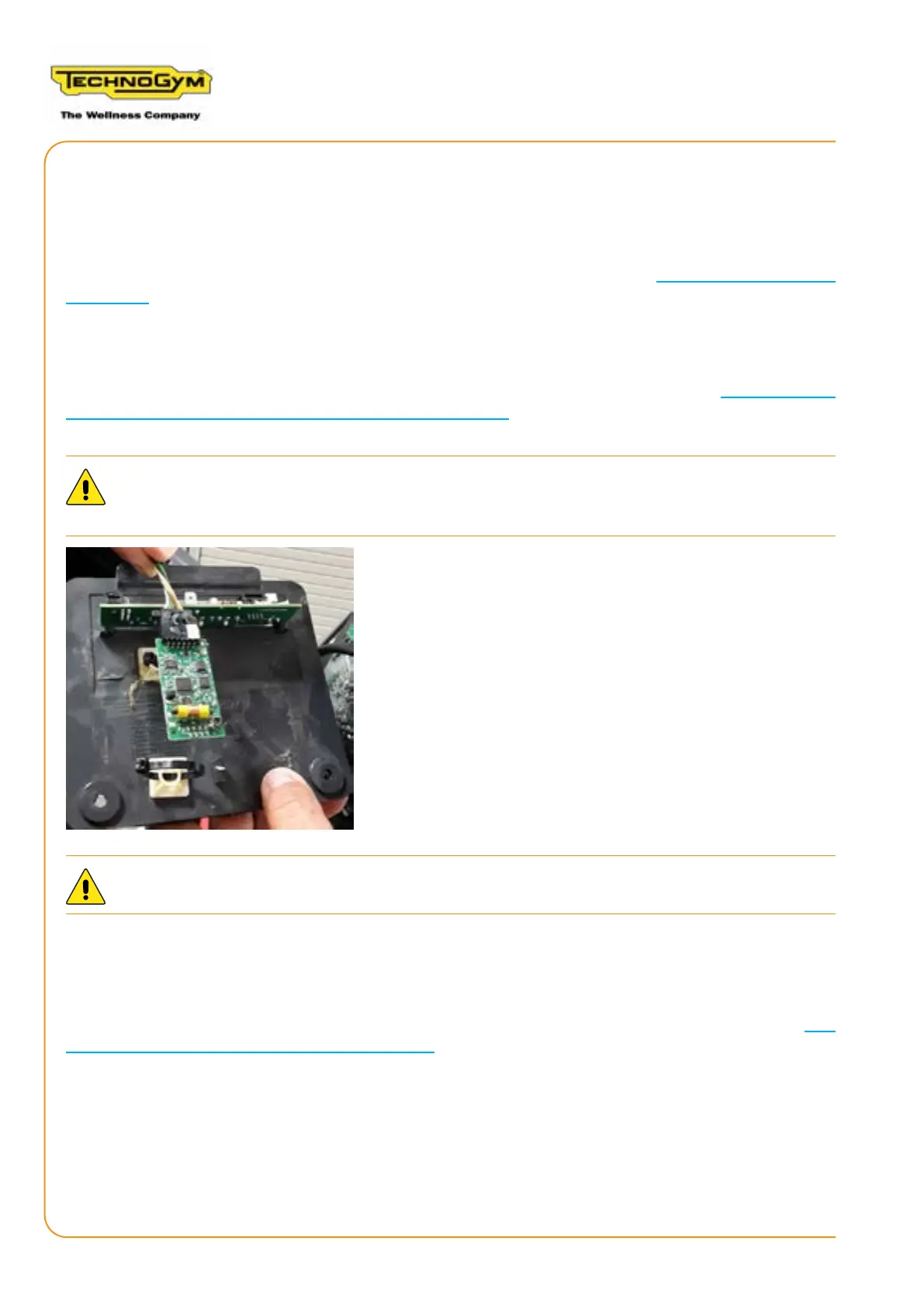

WARNING: Reposition the board in the inspection plug with the antenna directed towards the user, as
shown in the gure below.
WARNING: During the reassembly, fold the sponge on the Board carefully and without pressing.
4.10 REASSEMBLING THE UPPER GUARD OF THE LOW KIT
To reassemble the upper guard of the low kit, carry out the steps described at the paragraph “4.1
disassembling the upper guard of the low kit”, in reverse order.
4.11 UPDATE SW UNITY 3.0
1. Connect the power cable to the power outlet and switch on the equipment.
2. Update the UNITY 3.0 SW, using the UNITY upgrade USB key, as soon as synchronized with
