Personal Selection TÜV: Service & Maintenance Manual - rev. 1.0
Page 5.3

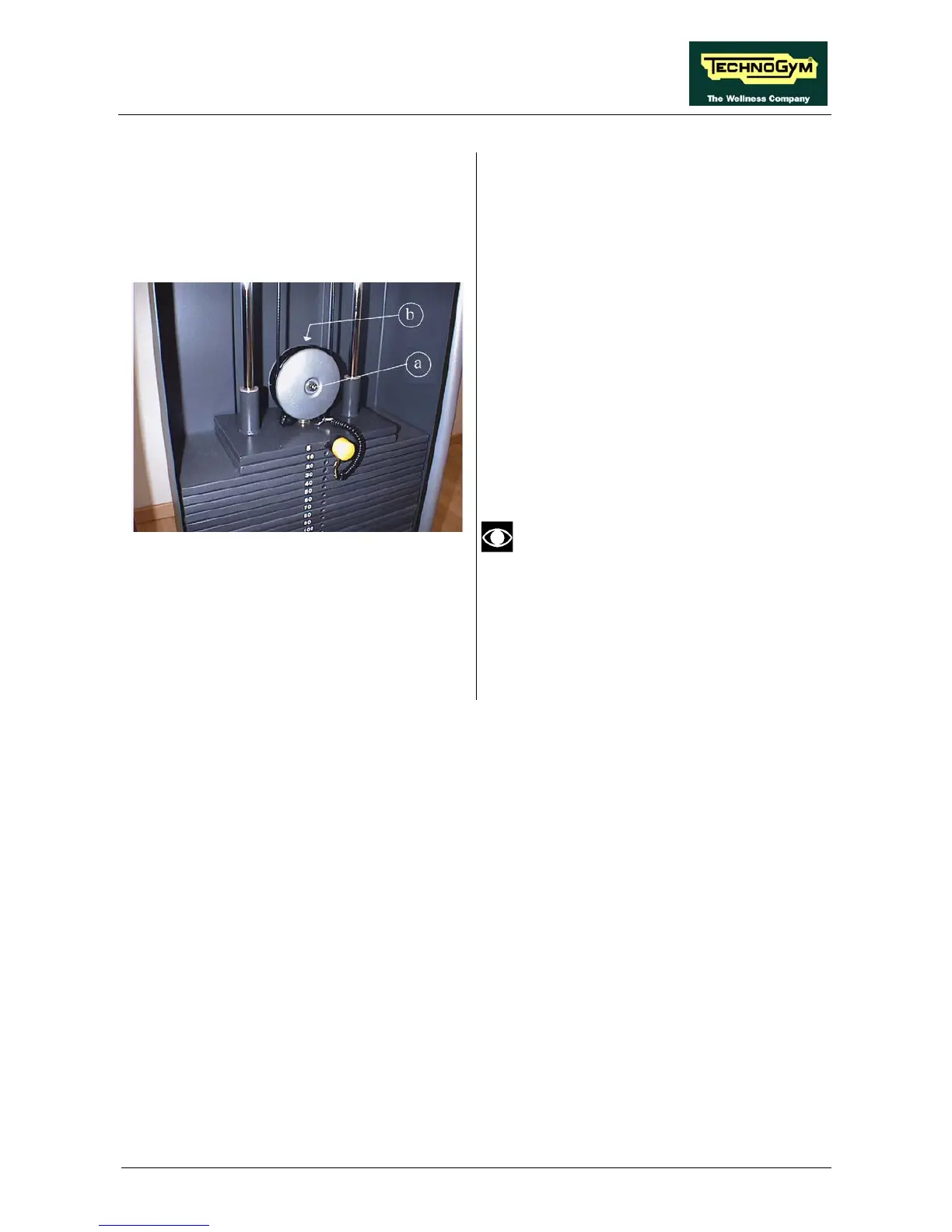

Photo 5.2-2
1. Set the minimum weight: the only selected
weight will be the cross.
2. Loosen the screw a using a 8-gauge
hexagonal T-wrench, holding the nut b in
place with a 17-gauge wrench.
3. Working on both pulley covers, turn the
pulley group counter-clockwise to increase
the cable tension until the cable is taut and
the cross rises.
4. Then turn the pulley cover clockwise to
reduce the cable tension until the cable, still
taut, rests on the weight stack.
5. Then tighten the screw and its nut loosened
previously.
Check the tension of the cable by
carrying out a couple of repetitions with
the minimum weight, and then slowly
resting the cross on the weight stack.
The cross must rest firmly on the weight
stack, and the cable must be slightly
taut.
