6. HOW TO DISASSEMBLE THE …
6.1. FRONT WEIGHT STACK CASING

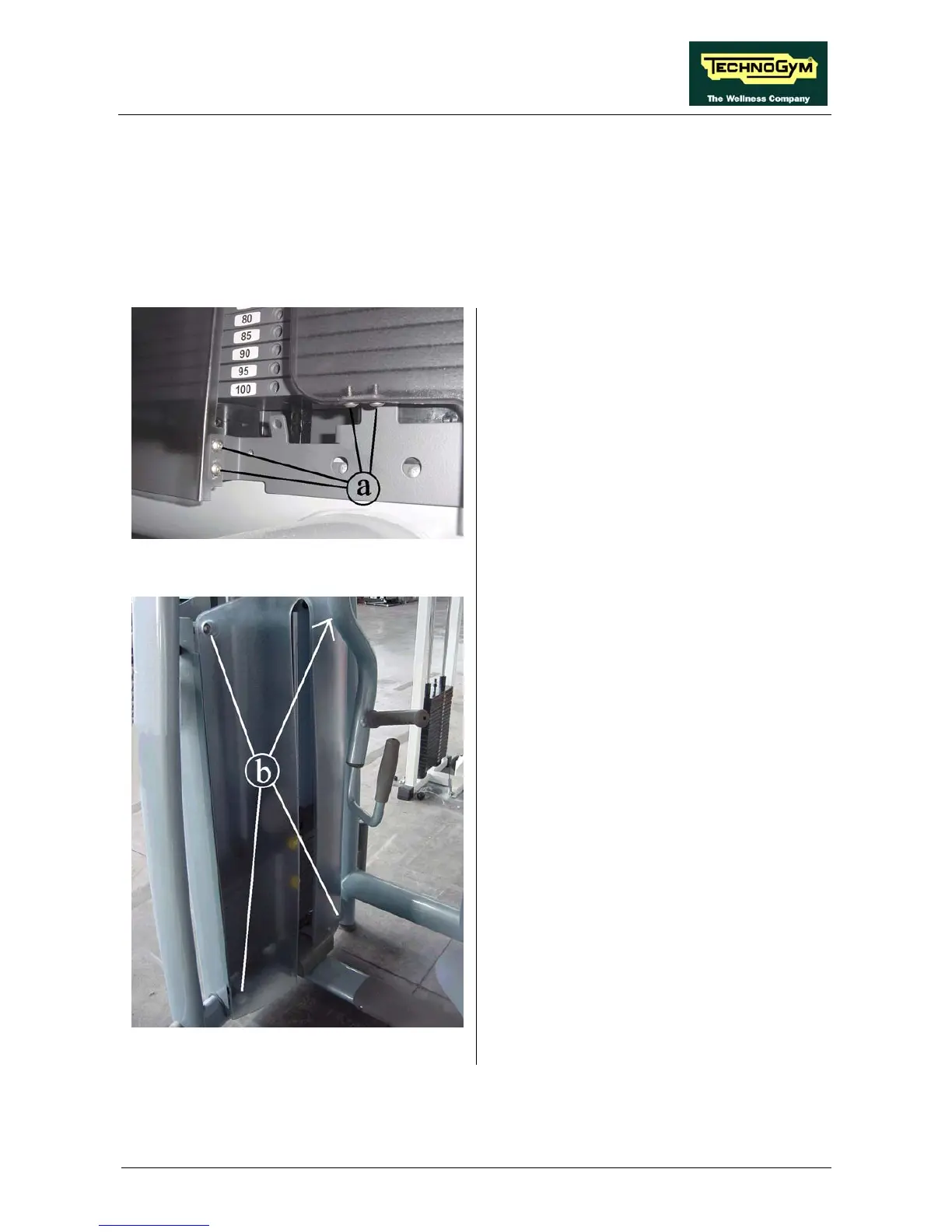

Photo 6.1-1
1. Back off the 4 screws a which are fixing the
front casing to the encoder support bracket,
using a 4-mm hex wrench.
Photo 6.1-2
2. Back off the 4 screws b, using a 5-mm hex
wrench.
3. Remove the front weight stack casing.
Reassemble all the components, carrying out the
procedure in reverse order.
