5.4. THE LEVERS OF DUAL-AXIS MACHINES ARE NOT
ALIGNED
This operation applies to Low Row, Upper Back and Vertical Traction.
To align the levers of dual-axis machines, you may adjust the position of the stop buffers against
which the machine levers rest, as illustrated below:

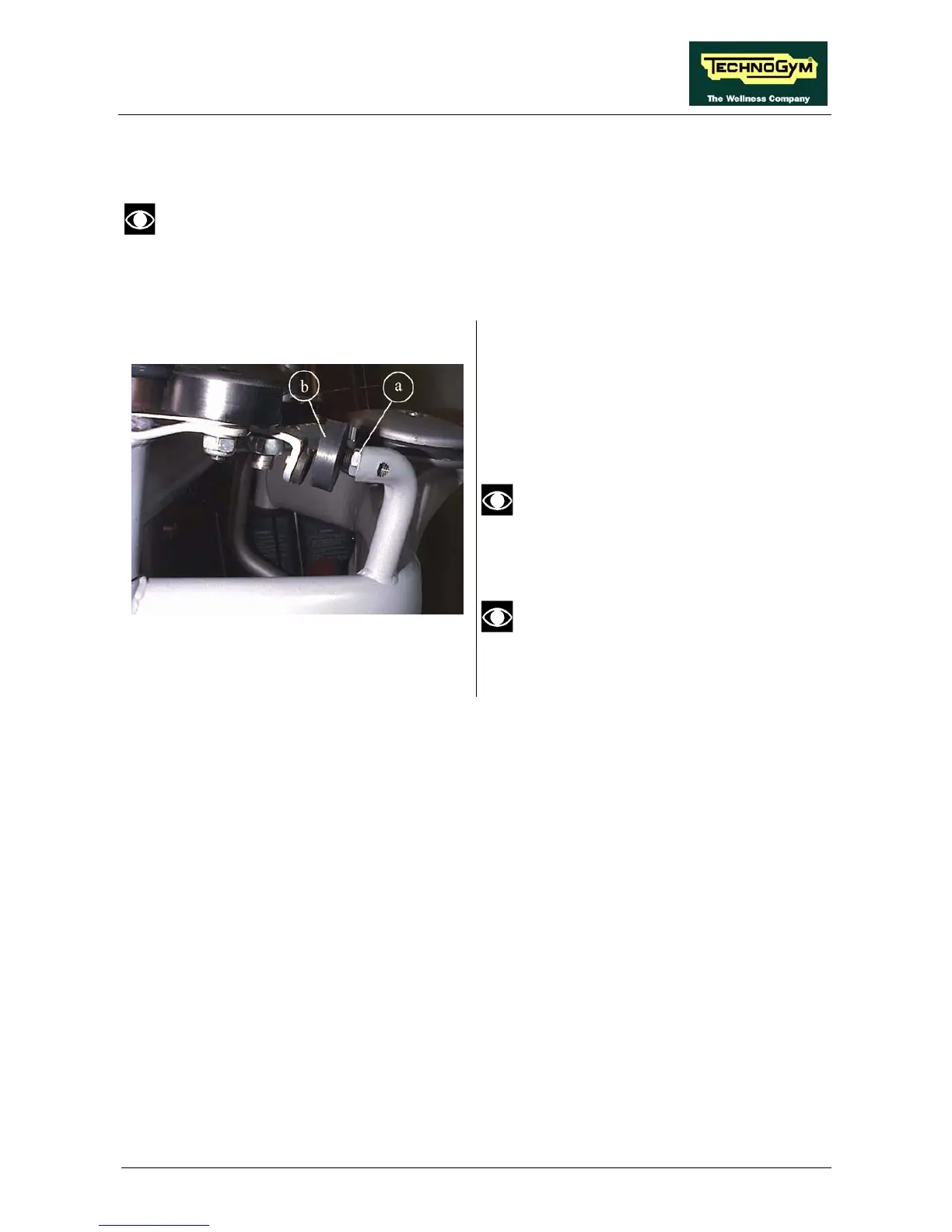

Photo 5.4-1
1. Loosen the counter-nut a on both sides, using
a 17-gauge wrench.
2. Adjust the position of the 2 stop buffers b,
tightening or loosening them until the levers
are aligned.
Use a lever for a more precise check.
3. When the adjustment is complete, tighten the
counter-nuts a once again.
This procedure may also be carried out
to adjust the starting position of the
levers on the other machines.
