Personal Selection TÜV: Service & Maintenance Manual - rev. 1.0
Page 6.11
6.7. RELEASE LEVER
This operation applies to Leg Curl, Leg Extension Lower Back.

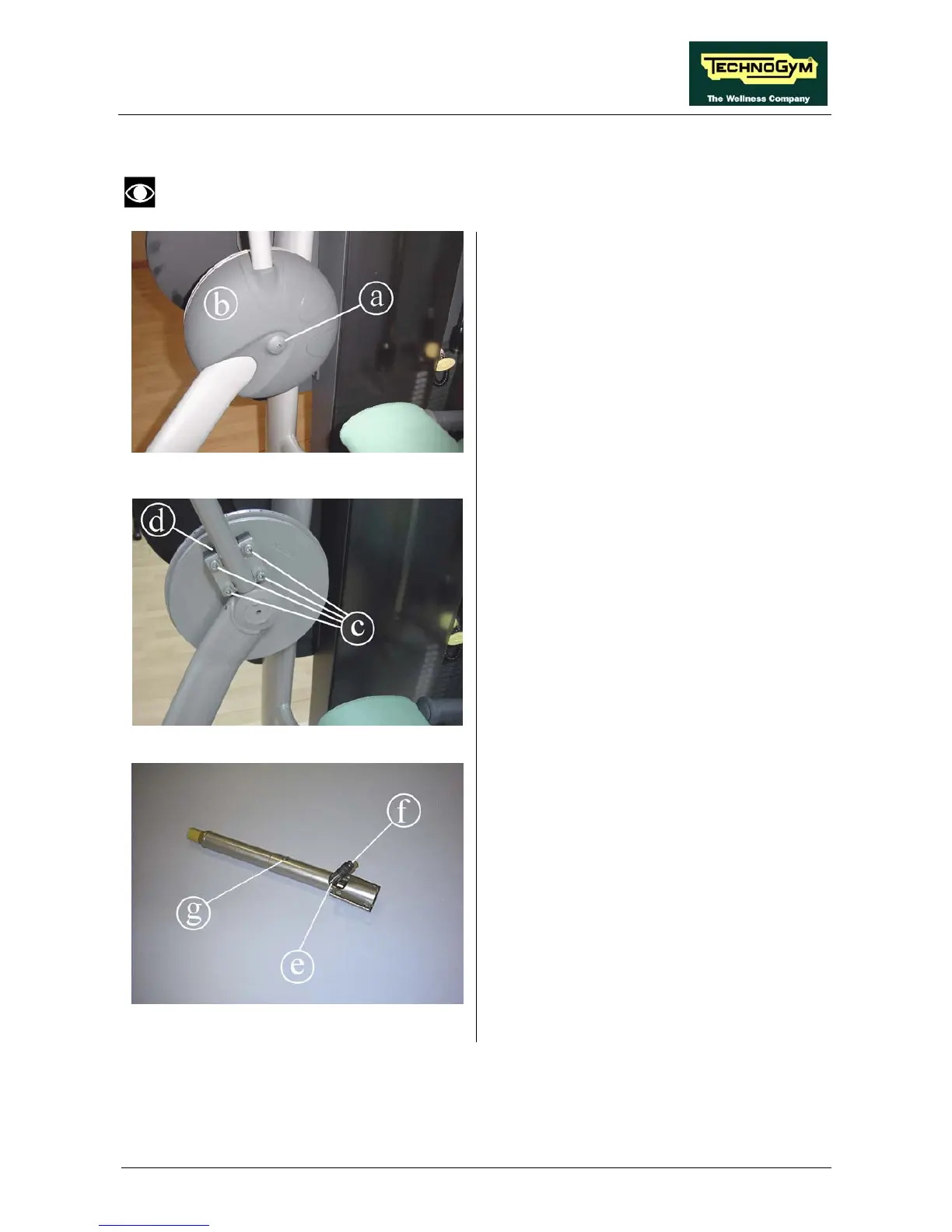

Photo 6.7-1
1. Unscrew the screw a using a 5-gauge
hexagonal T-wrench and remove the plastic
guard b, sliding it upward.
Photo 6.7-2
2. Use a 6-gauge hexagonal T-wrench to
unscrew the 4 screws c, making sure that the
spacer d do not fall out.
3. Remove the release button.
Photo 6.7-3
With the release button on a workbench:
4. Remove the threaded pin e using a Medium
flat head screwdriver.
5. Remove the pin f.
6. Unscrew the screw g using a 4-gauge
hexagonal T-wrench.
7. Open the button, sliding the inner part up or
down.
