Personal Selection TÜV: Service & Maintenance Manual - rev. 1.0
Page 6.16
6.9. DISASSEMBLING UNLOCKING LEVER ON ABDUCTOR -
ADDUCTOR

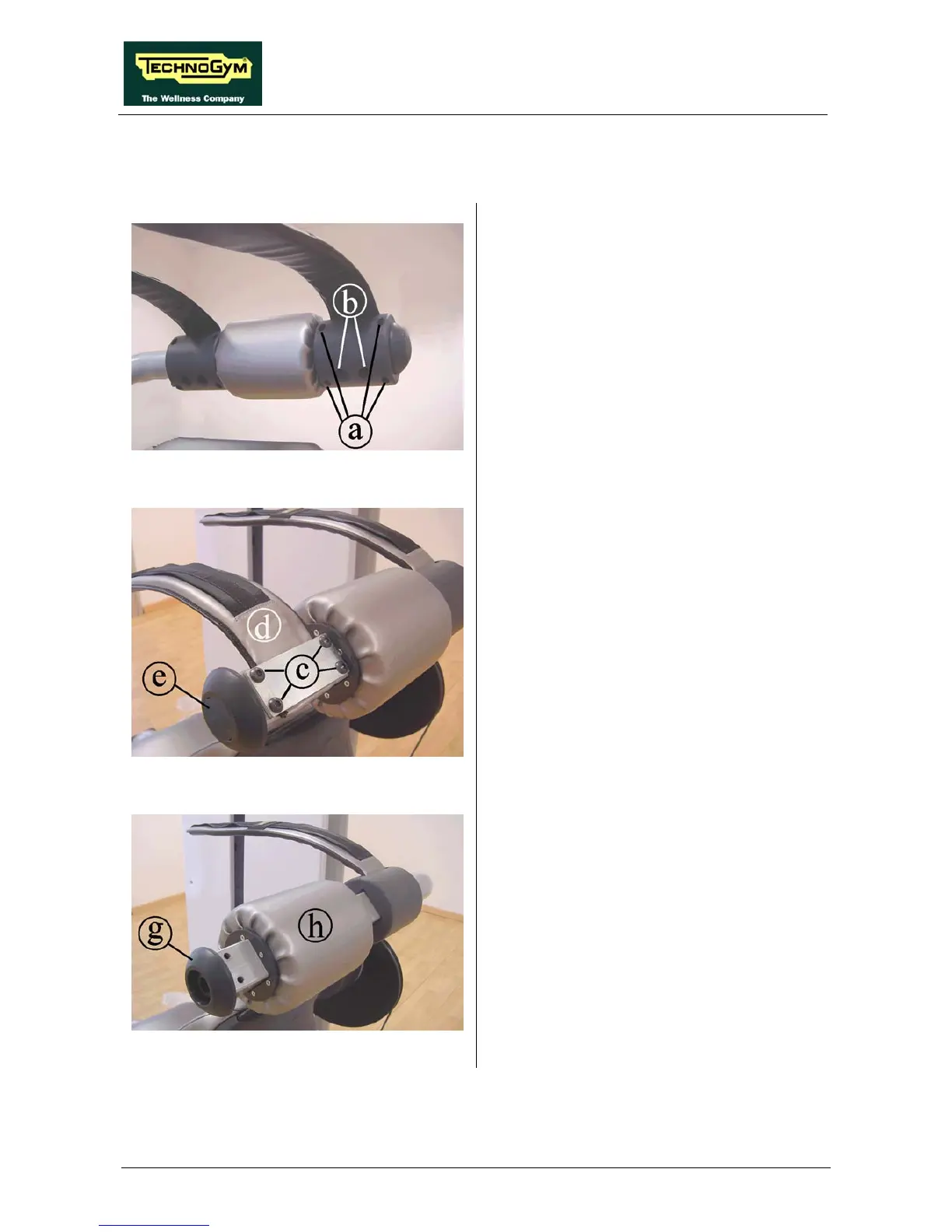

Photo 6.9-1
1. Back off the 4 screws a using a medium
Phillips screwdriver and remove the upper
plastic housing.
2. Back off the 2 screws b using a 5-mm hex
wrench and remove the lower plastic
housing.
Photo 6.9-2
3. Back off the 4 screws c using a 5-mm hex
wrench, remove the shoulder rest upholstery
d and its fixing plate.
4. Remove the cap e using a small flat
screwdriver.
Photo 6.9-3
5. Back off the plastic cap g using a 17-mm hex
wrench.
6. Pull out the roller upholstery h from the lever
tube.
7. Carry out the steps from 1 to 4, on the right
shoulder rest too.
To reassemble the shoulder rest lever, carry out
the above steps in reverse order.
