6.5. LEG PRESS SEAT

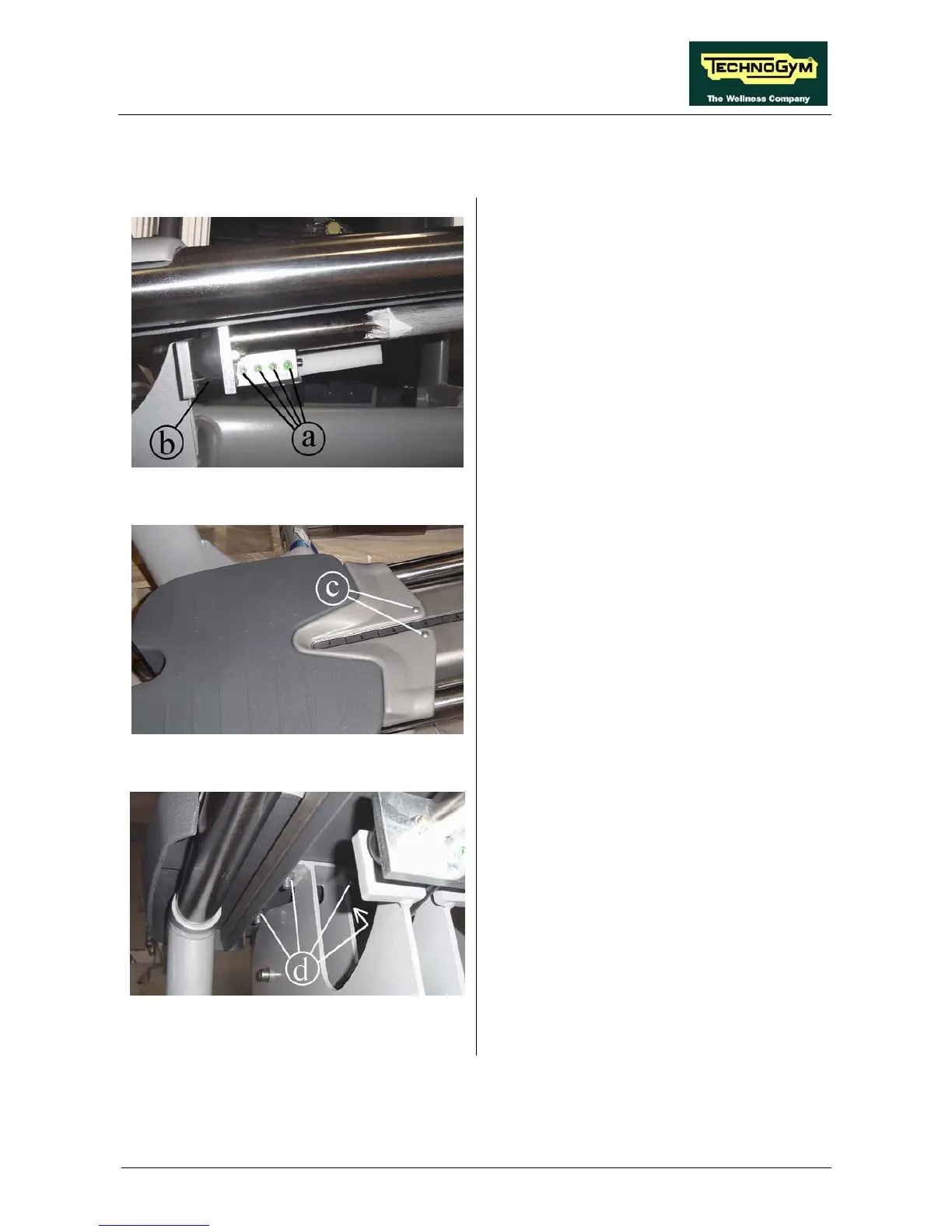

Photo 6.5-1
1. Loosen the 4 dowels a, using a 4-gauge
hexagonal T-wrench.
2. Remove the cable b.
Photo 6.5-2
3. Unscrew the 2 screws c, using a 4-gauge
hexagonal T-wrench, locking down the nuts
on the opposite side, using an 8-mm wrench.
Photo 6.5-3
4. Unscrew the 4 nuts d using a 17-mm tube
wrench.
5. Remove the footboard pulling it out from the
top.
