8.2. ROUTING OF THE WEIGHT STACK CABLE

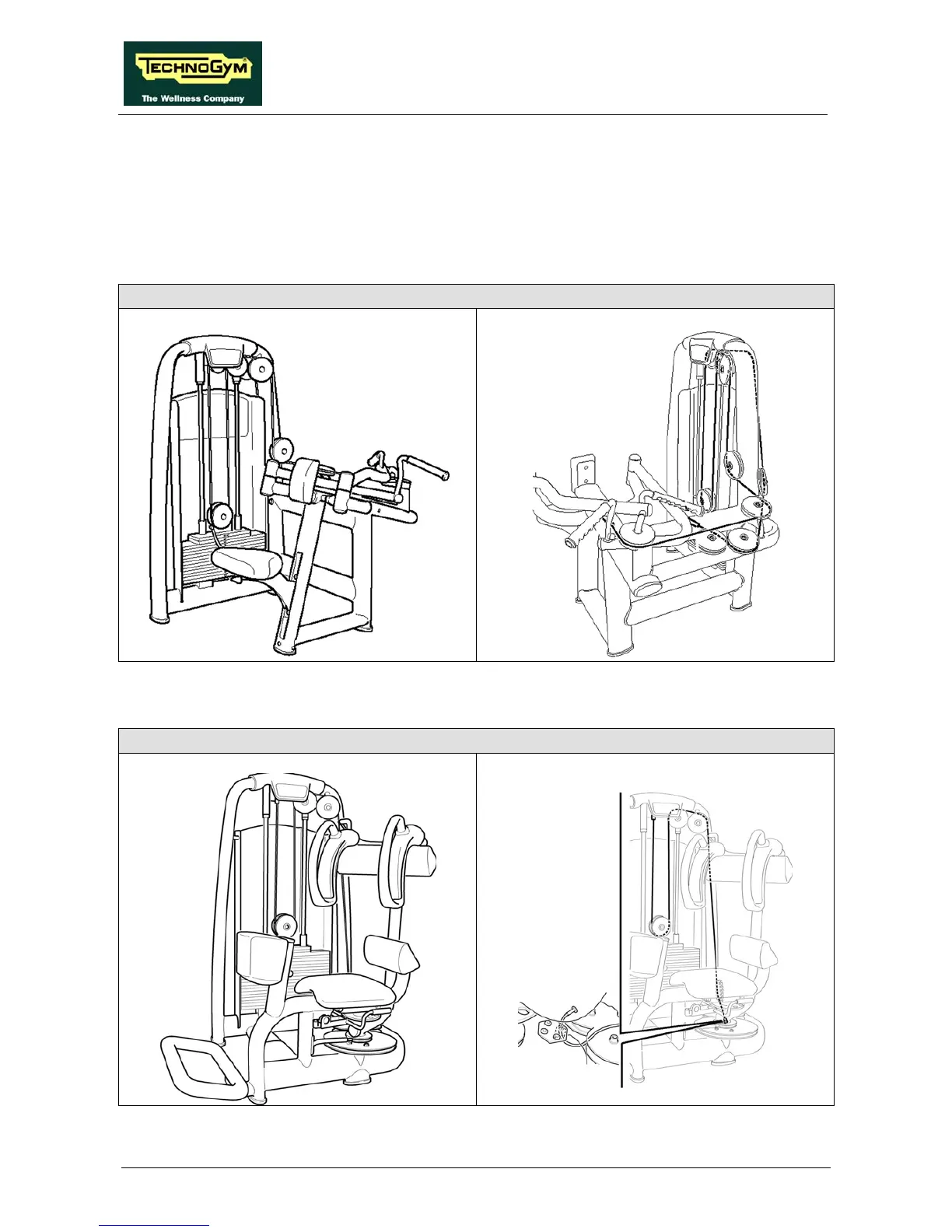

The following pages illustrate the routing of the weight stack cables through the pulleys for each
machine, for use as reference when replacing the machine cables.
8.2.1. D6946 – UPPER BACK
D6946 – UPPER BACK
8.2.2. D6950 – ROTARY TORSO
D6950 – ROTARY TORSO
