6.4. SEAT ON TALL MACHINES
This operation applies to Low Row, Upper Back e Vertical Traction.

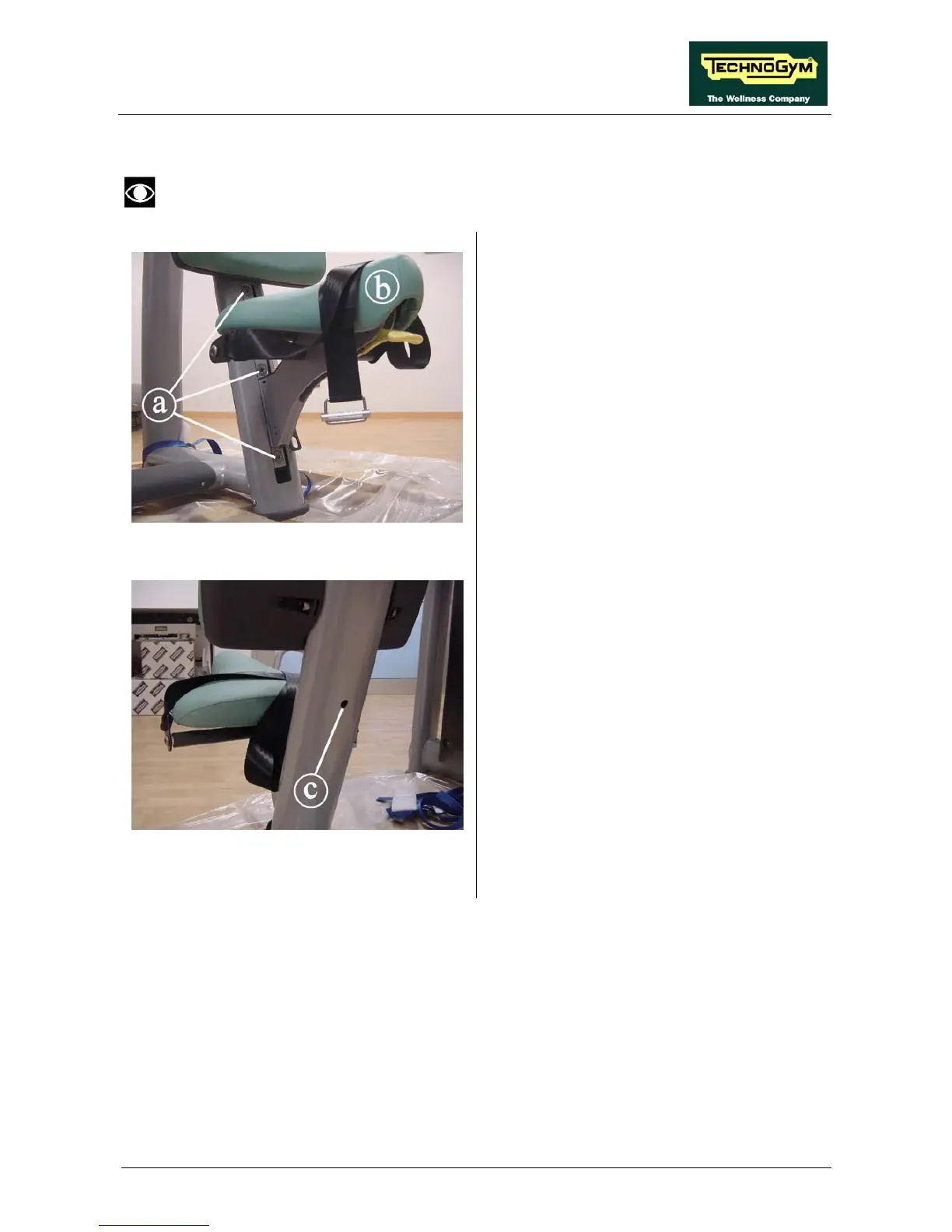

Photo 6.4-1
1. Move the seat into position 1 (all the way
down) so that the gas spring is as fully
extended as possible.
2. Unscrew one of the three screws a using an
8-gauge hexagonal T-wrench.
Photo 6.4-2
3. Screw the removed screw into the hole c to
fasten the seat sliding group to the machine
frame.
4. Unscrew the other 2 screws a using an 8-
gauge hexagonal T-wrench.
5. Remove the seat b.
Continued on next page →
