Personal Selection TÜV: Service & Maintenance Manual - rev. 1.0
Page 6.6

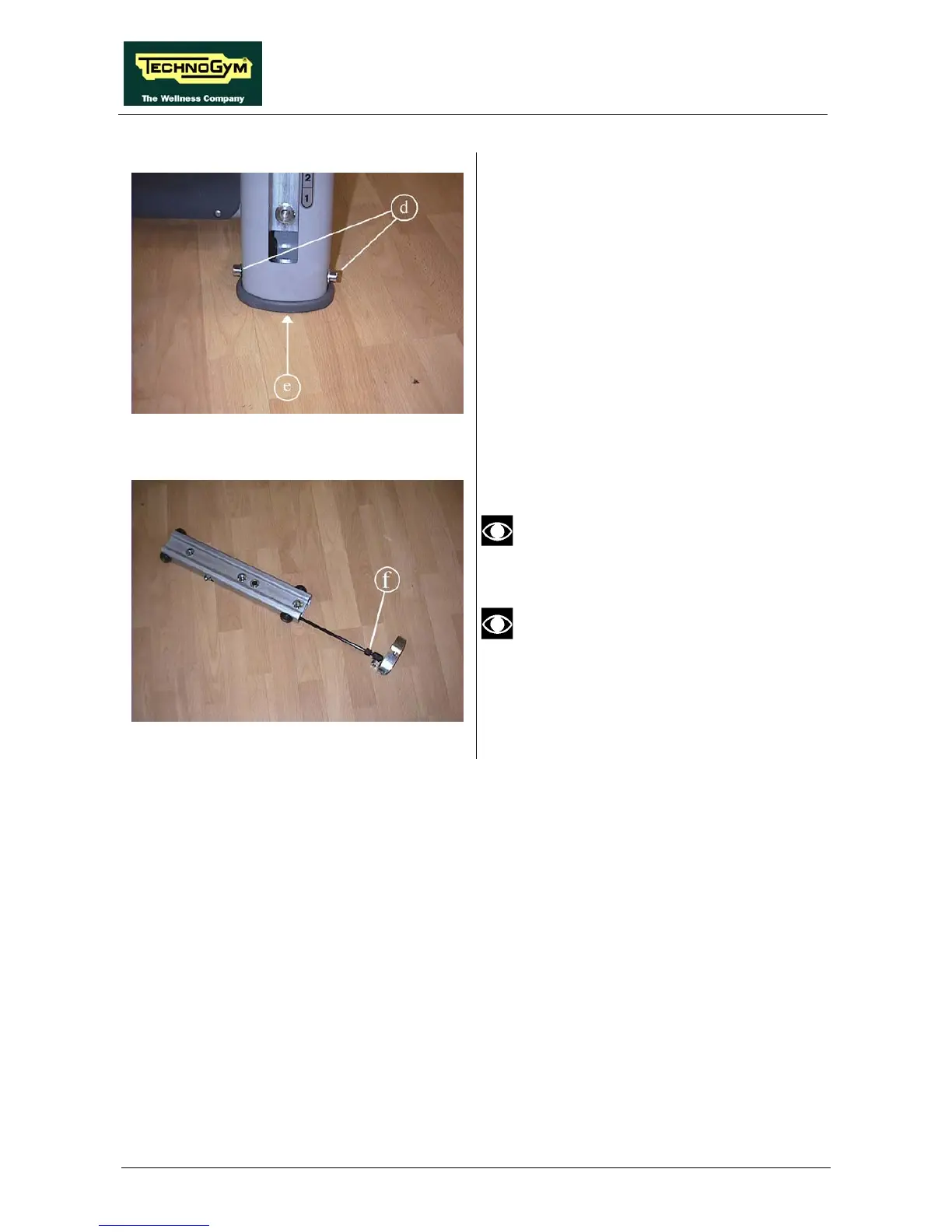

Photo 6.4-3
6. Unscrew the 2 screws d using an 8-gauge
hexagonal T-wrench.
7. Lift the machine on the weight stack side and
unscrew the screw e of the foot using an 8-
gauge hexagonal T-wrench; remove the foot.
8. Slide the seat sliding group downward, aided
with a rubber mallet if necessary to help you
pull it out.
Photo 6.4-4
Make sure to insert again the spacer “f”
that allows to limit the range of motion
of the seat group.
Make sure that the spacers between the
wheels and frame of the sliding group
have enough play to allow the group to
slide.
To reassemble the seat, proceed as follows:
1. Insert the sliding group into the machine frame.
2. Fasten the group in place with the screws d.
3. Insert the foot.
4. In a slot for the screws a, insert one at least 9 cm long, and screw it in by at least 4÷5 threads.
5. Press your foot against the screw just inserted to compress the gas spring, thus allowing you to
insert the screw in the hole c to lock the carriage.
6. Then proceed with assembling the seat.
