Personal Selection TÜV: Service & Maintenance Manual - rev. 1.0
Page 6.10

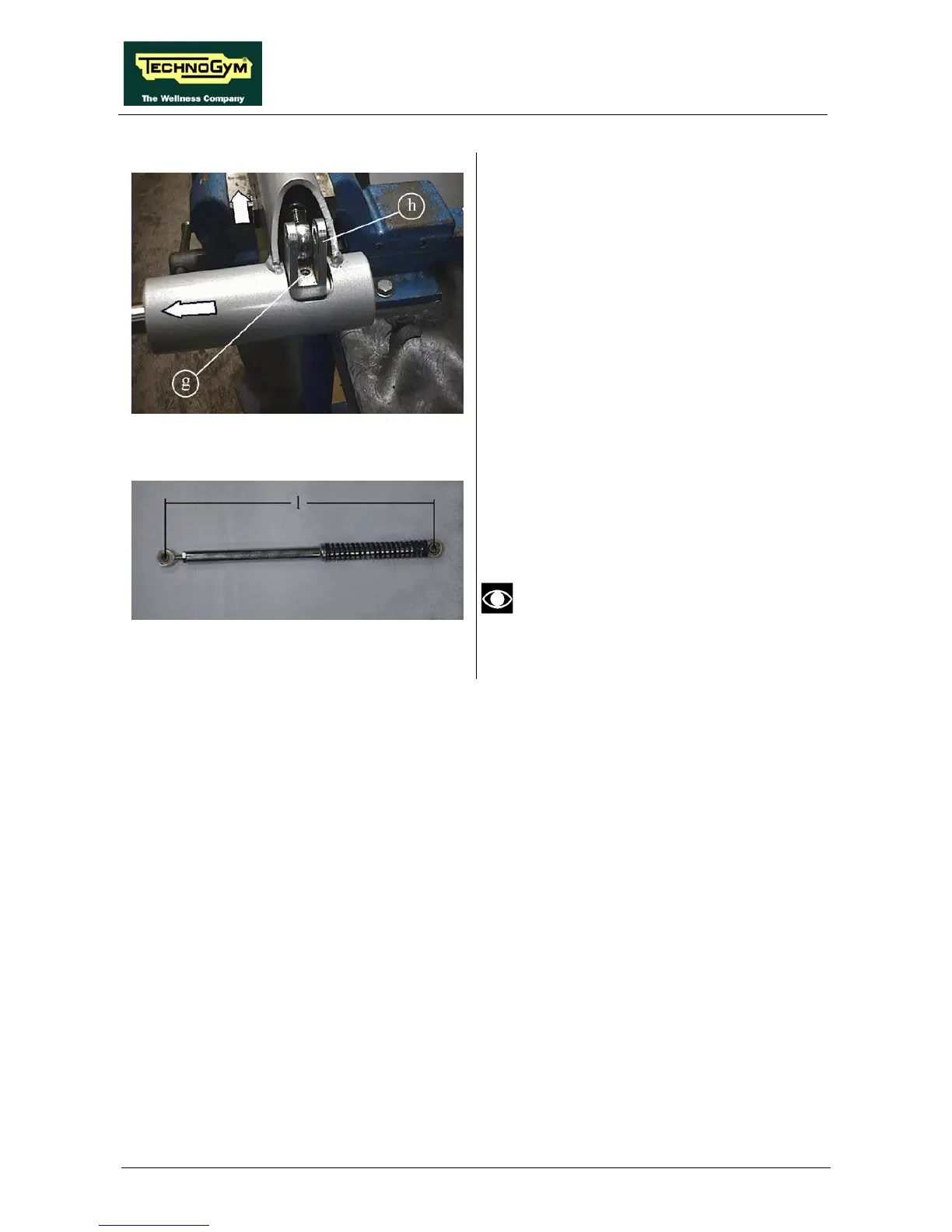

Photo 6.6-4
9. Adjust the previously inserted peg remover
tool to stretch the spring taut and move the
tie-rod until you can see the dowel g.
10. Loosen the dowel g using a 4-gauge
hexagonal T-wrench.
11. Slide the shaft to the side, allowing you to
remove the fork h holding the tie-rod.
Photo 6.6-5
12. Remove the peg remover tool from the ball
joint of the tie-rod, holding the other end of
the rod with a rag to absorb the shock due to
the thrust of the compressed spring.
13. Remove the tie-rod.
The adjustment of the distance I in the
figure alongside is 423 mm for Vertical
Traction.
