The version at present in production is composed by the following pieces:

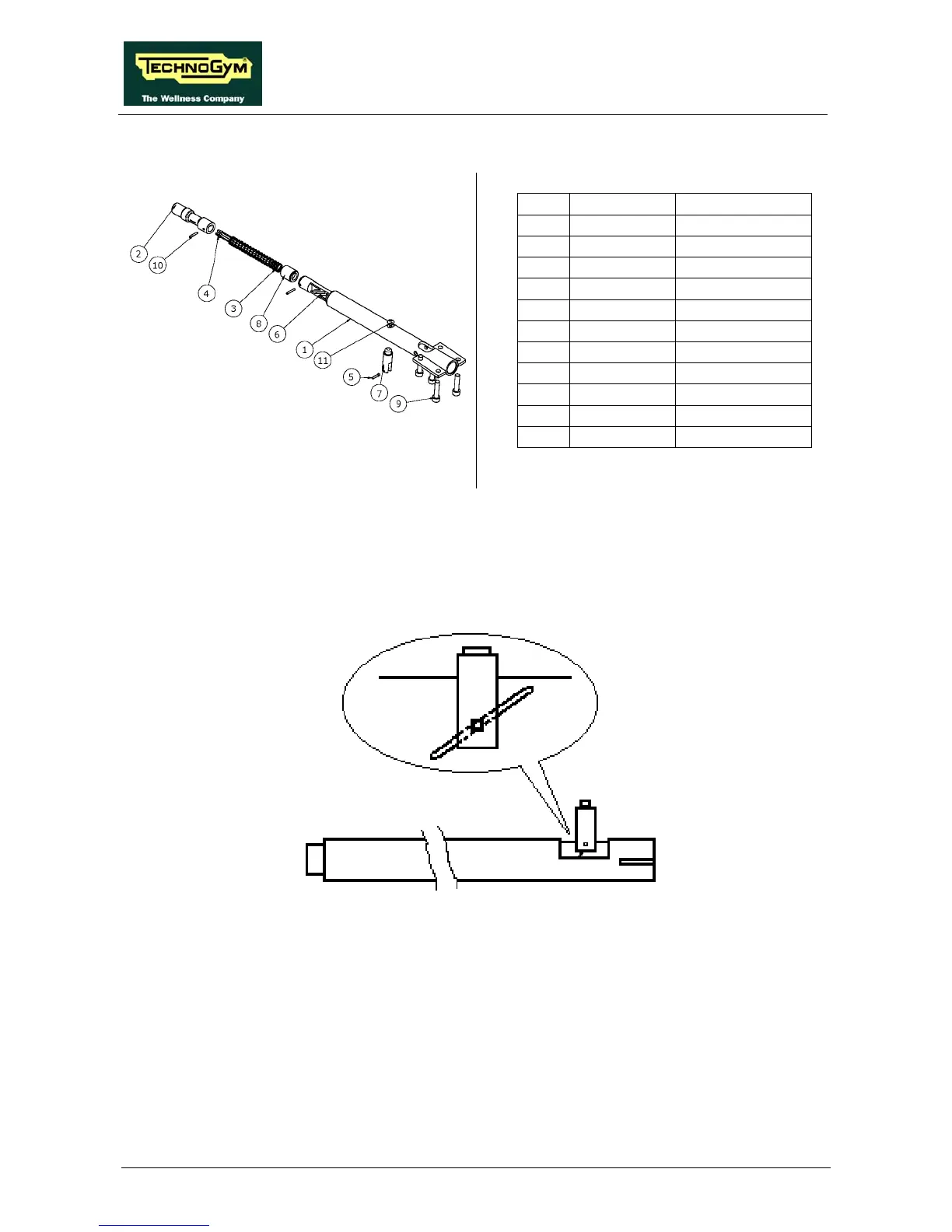

Photo 6.7-4
Ref. Code Description
1 0D000766-* Housing
2 0G000117-# ROM button
3 0M022 Return spring
4 0N447 Adjustment shaft
5 0P000661AB Threaded pin
6 0P6176 Link pin
7 0P6216AA Selector pin
8 0V368 Spring retainer
9 0Z103 Screw M8x35
10 0ZS00027 Spiral pin 3x20
11 0ZV00034 Screw M5x6
To reassemble the button, make sure that:
1. The Phillips screw 11 is fastened in such a way to block the piece 8.
2. The threaded pin 5 is fastened to the piece 6 in such a way that the slot of the latter is positioned
as shown in the drawing below:
Photo 6.7-5
3. To reassemble it on the machine, insert it into a hole in the bell.
