© Technosoft 2011 28
IDMx40 Technical Reference

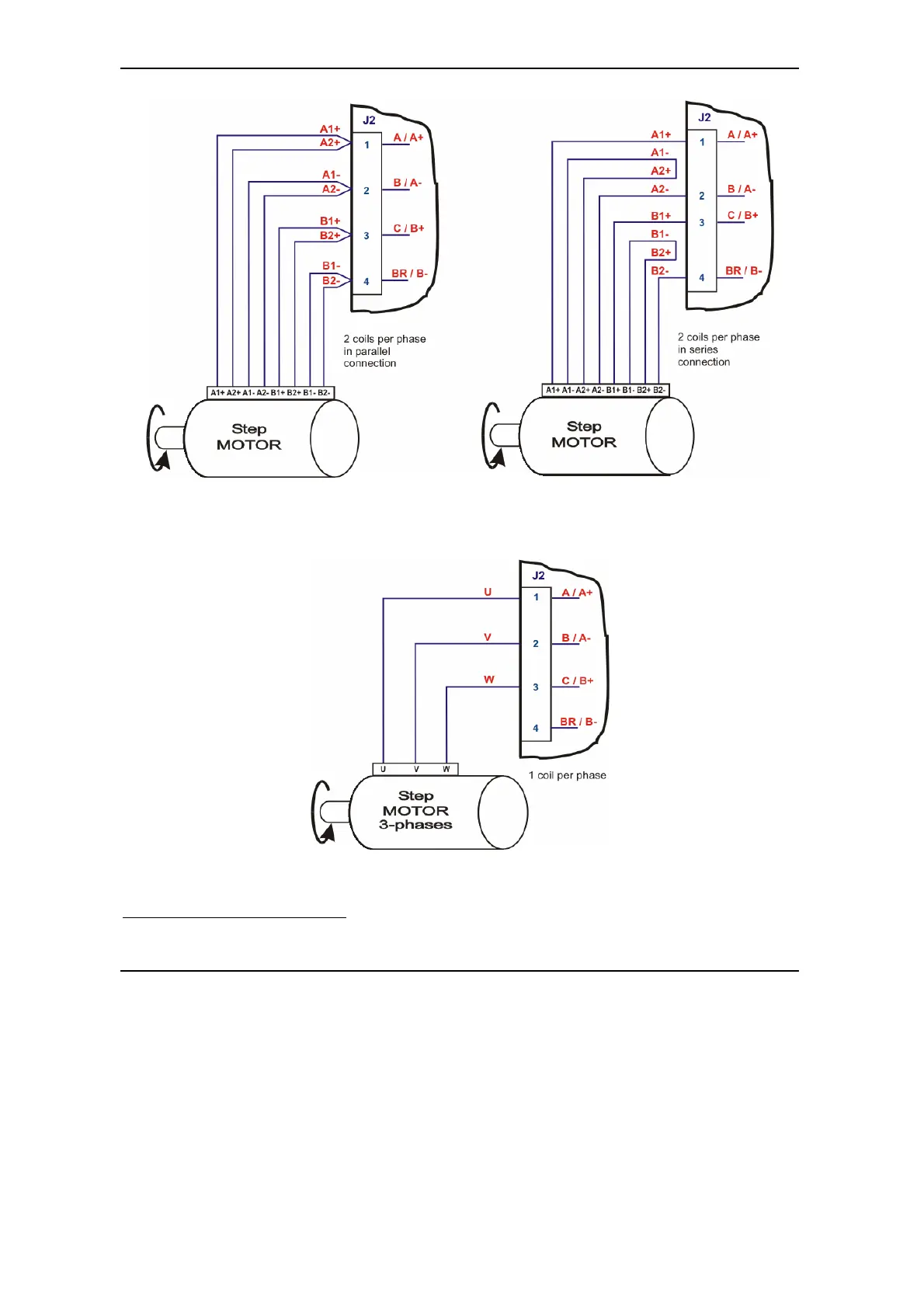

Figure 3.11 J2 – Connection of a 2-
phase motor with 2 coils per phase in
parallel
Figure 3.12. J2 – Connection of a 2-
phase motor with 2 coils per phase in
series
Figure 3.13. J2 – Connection of a 3-phase motor
22
22
Available only for IDMx40 CAN executions
