User Manual
2
Chapter 2: Overview
2.1

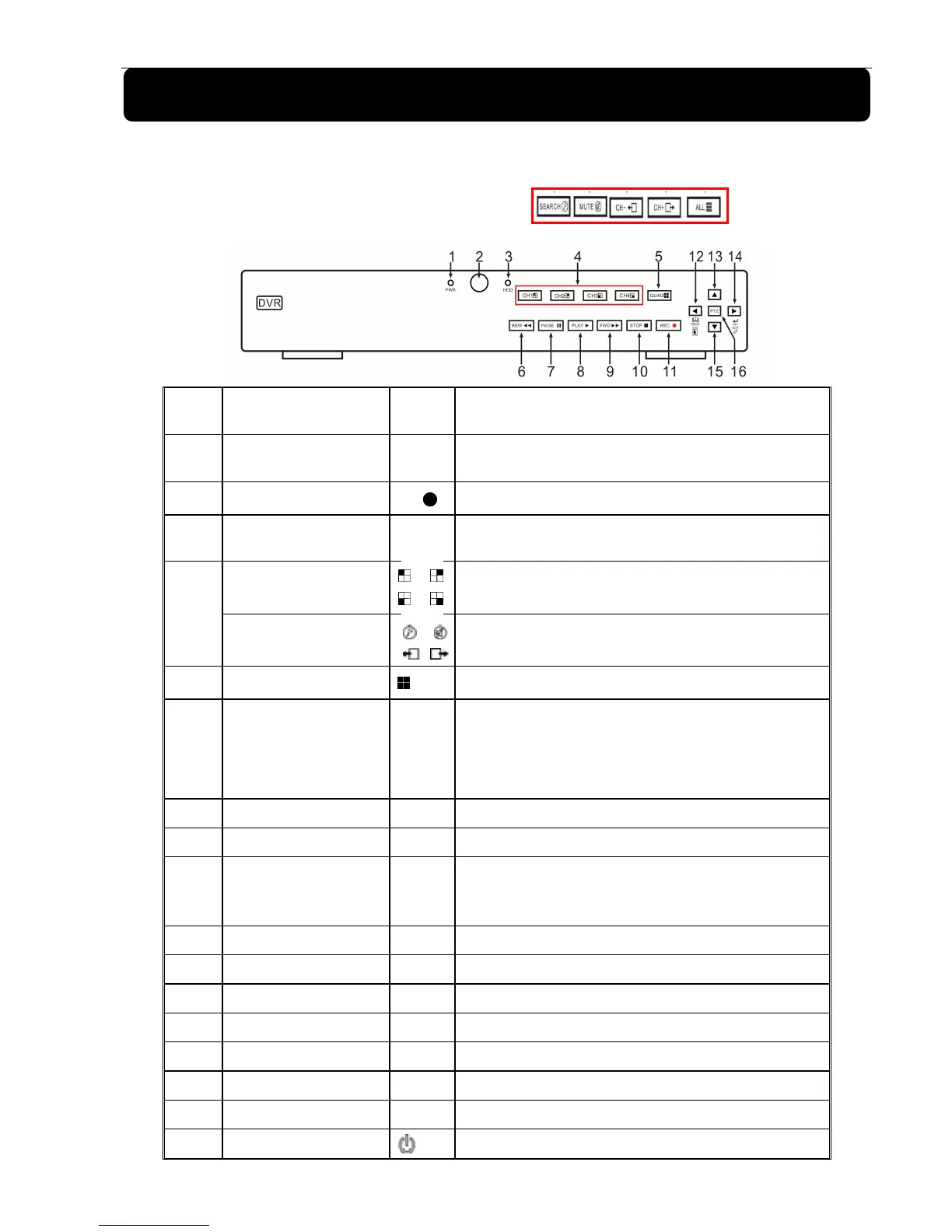

8CH (1U) DVR Front Panel
Front Panel
Reminder: DVR is the abbreviation of Digital Video Recorder Equipment.
Item
Key title or
Indicator
Remar
k
Function & Description
1 Power Indicator PWR
If the “Green” indicator is on the system is getting
power normally.
2 IR Receiver
Receives IR signal from Remote Controller
3 HDD Indicator
HDD When the “Red” indicator flashes it means the hard
drive is being read or written to.
4
Channelselect :CH1
CH2 CH3 CH4
CH select key
SEARCH MUTE
CH- CH+
Record search Open or close audio input Switch
to previous channel Switch to next channel
5 QUAD
On Live or Playback mode, switch to Quad display.
6 REW
Move to left; Rewind function;
decrease PTZ rotation speed and parameter value;
On preview mode, holding pressing the button to
switch GUI operation device
7 PAUSE
Pause / play frame by frame manually
8 PLAY
Enter into Pop-up Menu; Play record file.
9 FWD
Right key, F. Forward key; increase PTZ rotation
speed and
Parameter value.
10 STOP
Stop playing or stop manual record
11 REC ● Press the button to start manual record.
12 MENU/ESC
Enter into Main menu, exit or stop playing
13 Up key
Move up
14 SEL/EDIT
select [Enter] / [Edit] operation
15 Down key
Move down
16
PTZ：
Enter into PTZ control interface
17 Power button
Power on/off
