User Manual
8
5.2 Main Menu
5.2.1. Display
5.2.1.1 Live mode
Go to <Main menuDisplayLive> option and enter into the <Display> setting interface shown as
Picture 5-3.
Explanation：
：：
：
1、 The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu
windows and being prompted to save and then clicking [ok] button.
2、 If you want to cancel the modification, click [Exit] button to exit the menu.
3、 When clicking [DEFAULT] button, all system default values will be reset to default value.
4、 System default value indicates the value pre-set at the factory.
5.2.1.2 Output mode
Go to [Main menuDisplayOutput] to enter into the output set interface shown as Picture 5-5.

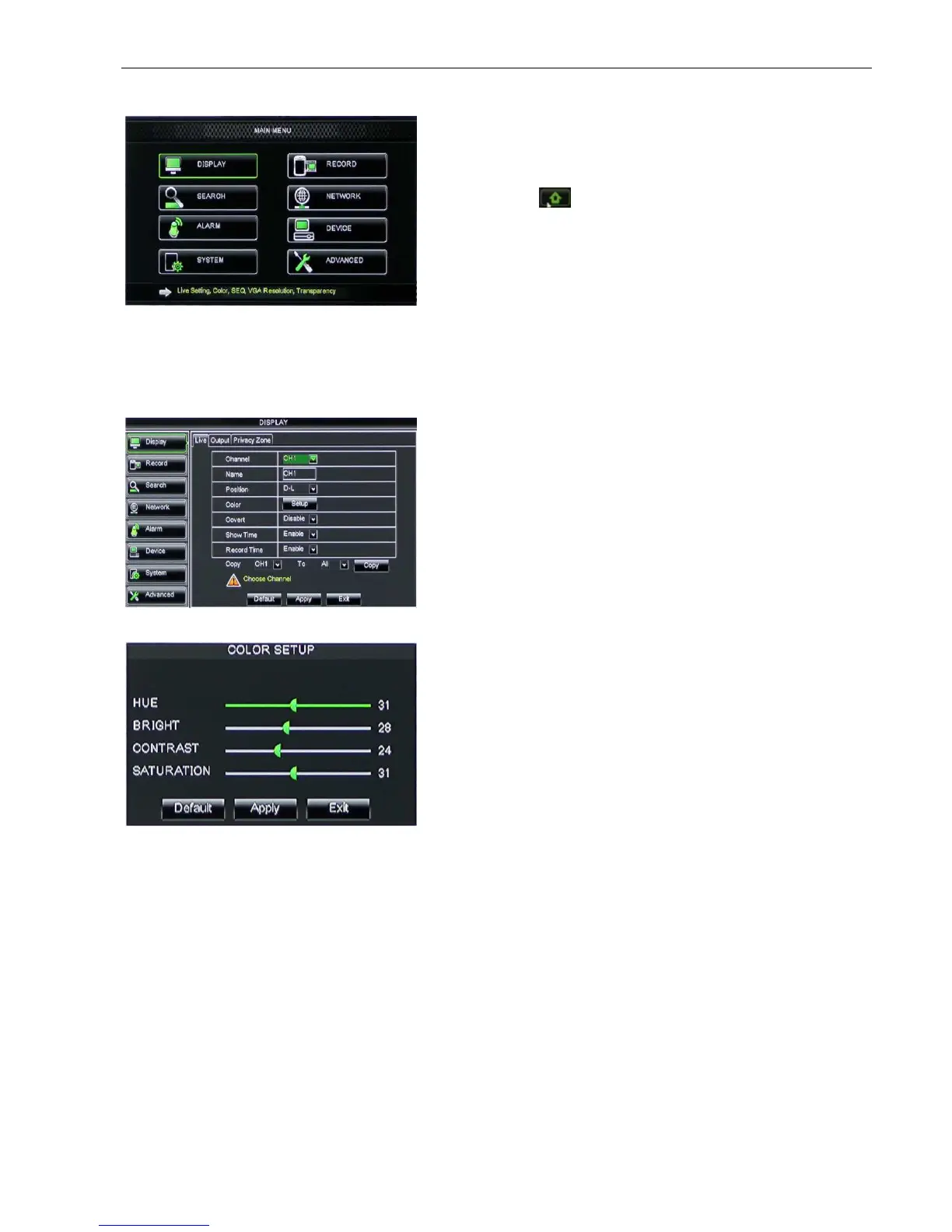

On <Live> mode, click [Menu] button on the
front panel or Remote controller to enter into Main
menu interface shown as Picture 5-2. And also you
can click [ ] icon to enter the main menu
screen. In Main Menu mode, you can control
device management settings, such as Display,
Record, Network, Search, Device, System and
Advanced setting etc.
Channel: allow you setup the channel you desired.
Name: allow you setup the channel name, and system
support up to eight characters or four Chinese
characters.
Position: allow you setup the display position of each
channel.
Color: Click [Setup] option to enter into the [Color setup]
interface shown as Picture 5-4.
Covert: allow you enable [Live] surveillance screen
Show time: allow you enable system time appear in the
<Live> screen.
Record time: When set to “Enable”, you are allowed to
record system time into the record history.
Copy: allow you copy all data of one channel to any other
one
Above picture 5-4 is the Color Menu where you can
adjust image brightness, saturation, contrast and hue
parameters of each channel.
