Section 6 – Weight and Balance
WEIGHTS AND C.G.
2
nd
Edition, Rev. 0
3. WEIGHTS AND C.G.

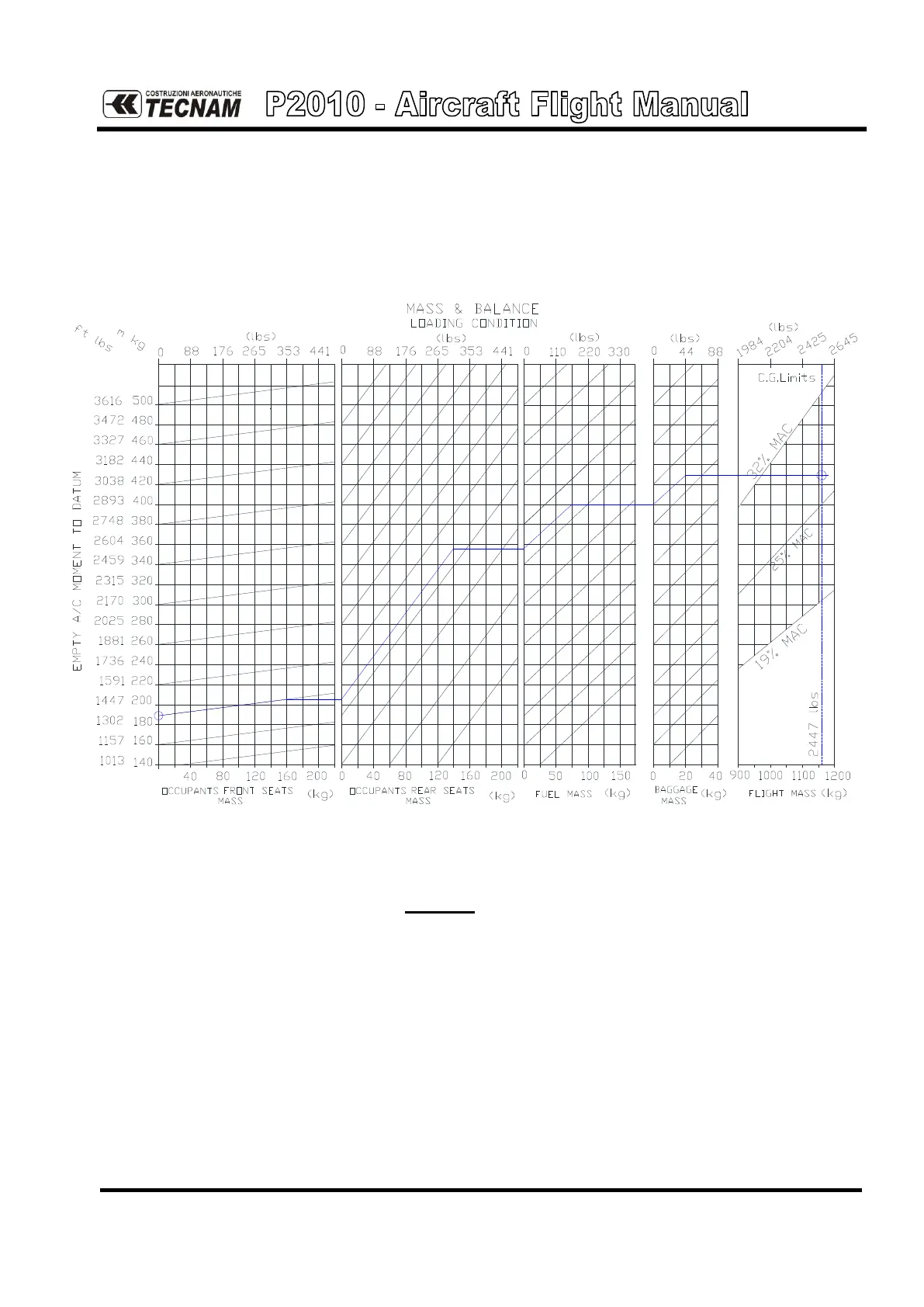

C.G. position can be defined by means of the chart below.
The pilot is responsible for ensuring the correct useful load loading.
Figure 1
Example
A/C empty mass moment 188 kg*m (1360 lb*ft)
A/C empty mass 765 kg (1687 lb)
Occ. front seats 160 kg (353 lb)
Occ. rear seats 140 kg (309 lb)
Fuel 75 kg (165 lb)
Baggage 20 kg (44 lb)
A/C T.O. weight 1160 kg (2557 lb)
