AFMS N°D07 FOR GARMIN GFC700 AUTOPILOT AND VARIABLE PITCH PROPELLER EQUIPPED
AEROPLANES
Section 7 – Airframe and Systems description –
INTERNAL LIGHTS
11.2 INTERNAL LIGHTS
On the cabin ceiling are located four map lights, two in the front area (pilot) and two in the
rear area (passengers).
In the central area of the cabin ceiling is located a spot light used to illuminate the pedestal
during night flight operations. All ceiling lights are dimmable by a dedicated dimmer.
FWD

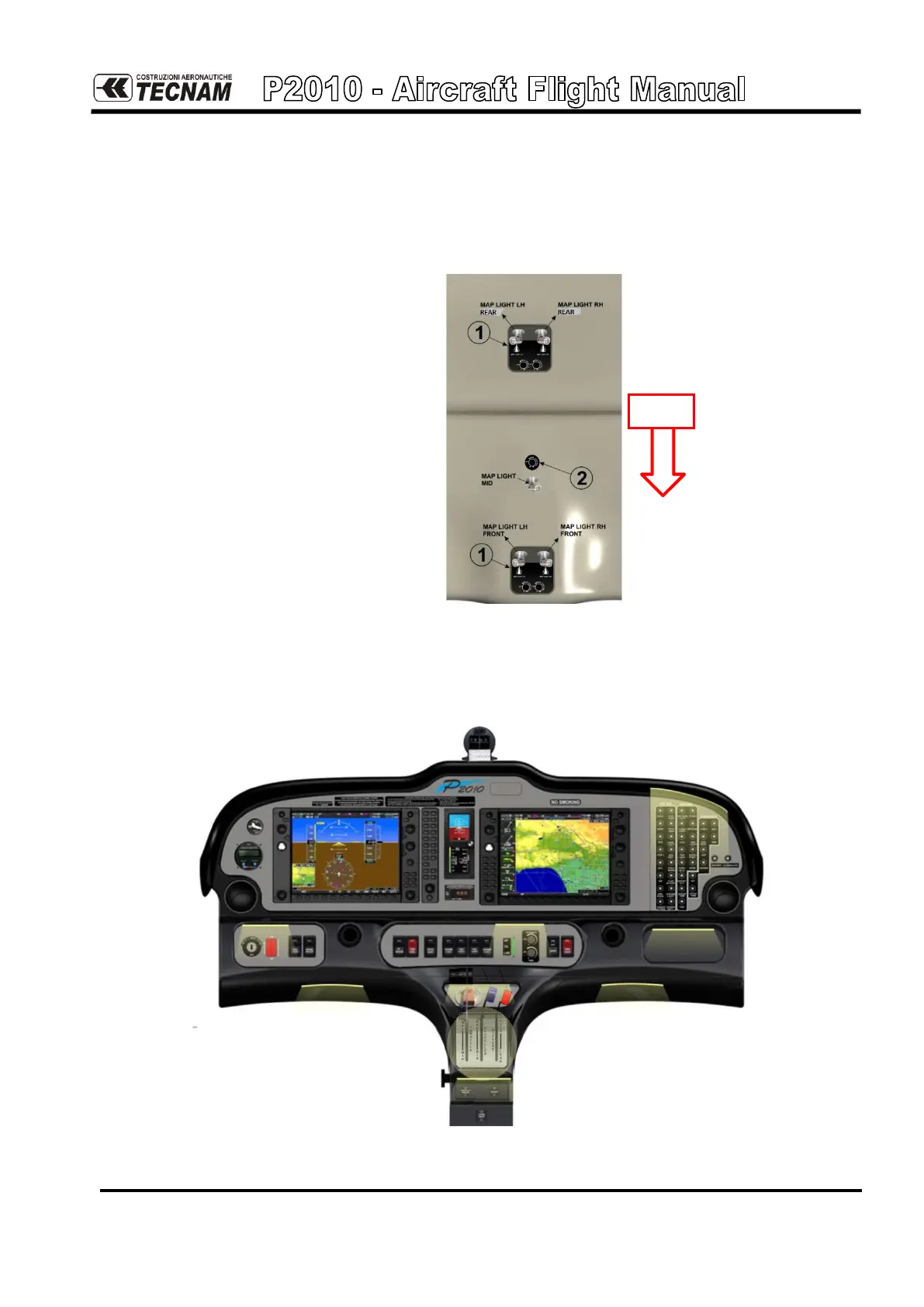

FIG.7-18. CABIN CEILING LIGHTS LAYOUT
The instrument panel can be illuminated by 8 incandescence light strips, all dimmable.
FIG.7-19. INSTRUMENT PANEL LIGHTS LAYOUT
