Tecnam P2010 - Airspeed Indicator System Calibration

AFMS N°D07 FOR GARMIN GFC700 AUTOPILOT AND VARIABLE PITCH PROPELLER EQUIPPED
AEROPLANES
Page APV5 - 3
Section 5 – Performance-
AIRSPEED INDICATOR SYSTEM CALIBRATION
Ed. 1, Rev.0
3. AIRSPEED INDICATOR SYSTEM CALIBRATION
Normal Static Source
Graph shows calibrated airspeed V
IAS
as a function of indicated airspeed V
CAS
.

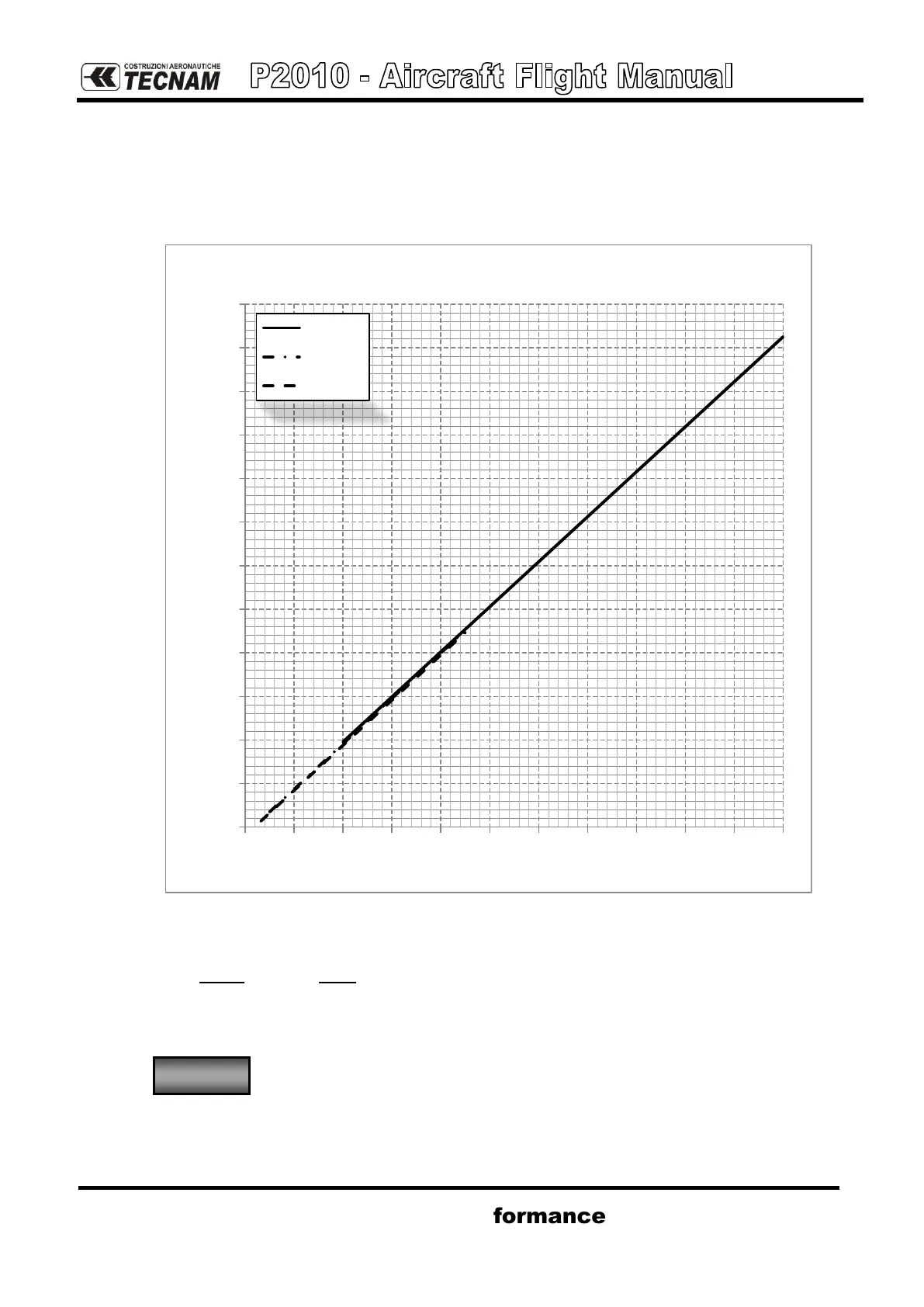

Fig. 5-1. Calibrated vs Indicated Airspeed
Example:
Given
Find
KIAS 75.0
Flap: UP
KCAS 74.7
Indicated airspeed assumes 0 as an instrument error
50
60
70
80
90
100
110
120
130
140
150
160
170
50 60 70 80 90 100 110 120 130 140 150 160
Indicated Airspeed [KIAS]
Calibrated Airspeed [KCAS]
Airspeed Indication System Calibration
Flap UP
Flap T/O
Flap LN
NOTE
