Tecnam P2010 - Page 136

To Next Page

To Previous Page

Page 7 - 6

Section 7 – Airframe and Systems description

AIRFRAME

Edition, Rev. 0

Left wheel brake

Right wheel brake

Left wheel brake

Right wheel brake

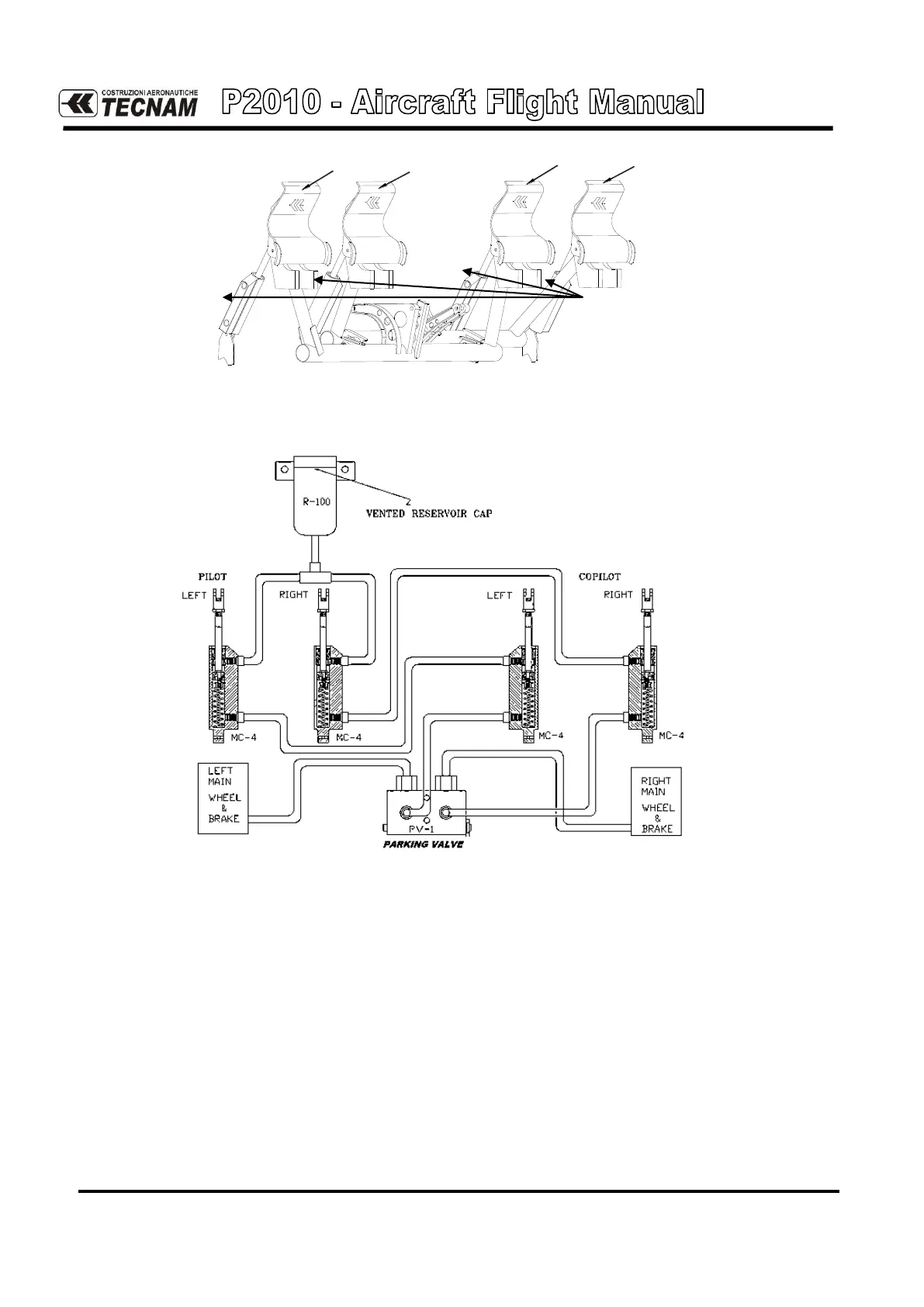

Fig. 7-5. RUDDER PEDALS AND BRAKE MASTER CYLINDERS (PILOT AND CO-PILOT SIDE)

Fig. 7-6. BRAKE SYSTEM SCHEMATIC

Master Cylinders
