Section 7 – Airframe and Systems description
LIGHTS
11.2. INTERNAL LIGHTS
On the cabin ceiling are located four map lights, two in the front area (pilot) and two
in the rear area (passengers).
In the central area of the cabin ceiling is located a spot light used to illuminate the
pedestal during night flight operations. All ceiling lights are dimmable by a dedicat-
ed dimmer.

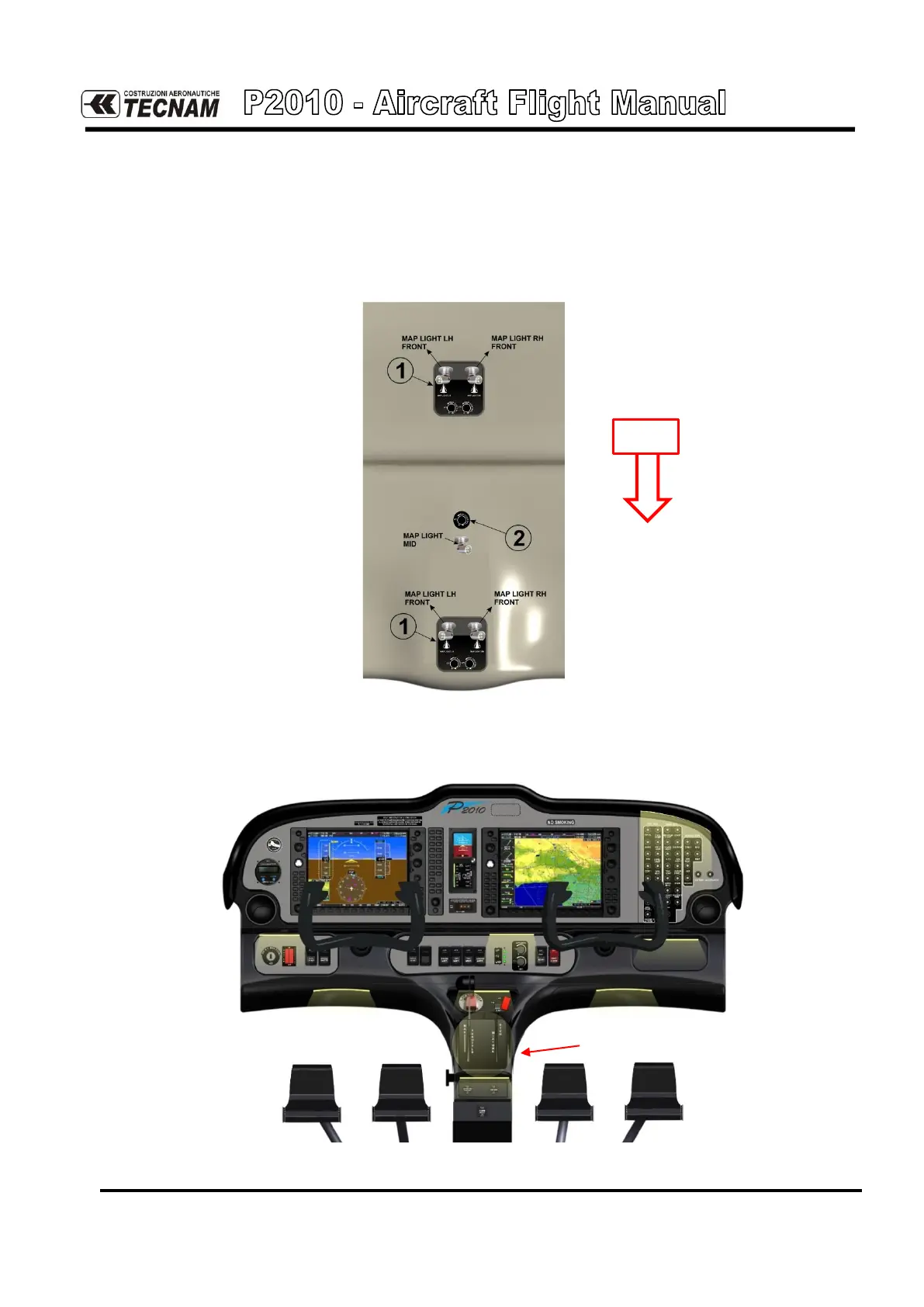

FIG.7-18. CABIN CEILING LIGHTS LAYOUT
The instrument panel can be illuminated by 8 incandescence light strips, all dimma-
ble.
FIG.7-19. INSTRUMENT PANEL LIGHTS LAYOUT
