AFMS N°D07 FOR GARMIN GFC700 AUTOPILOT AND VARIABLE PITCH PROPELLER EQUIPPED
AEROPLANES
Section 2 – Limitations -
LIMITATIONS PLACARDS
19 LIMITATIONS PLACARDS
Hereinafter limitation placards, related to the operating limitations, are placed in
plain view on the pilot.

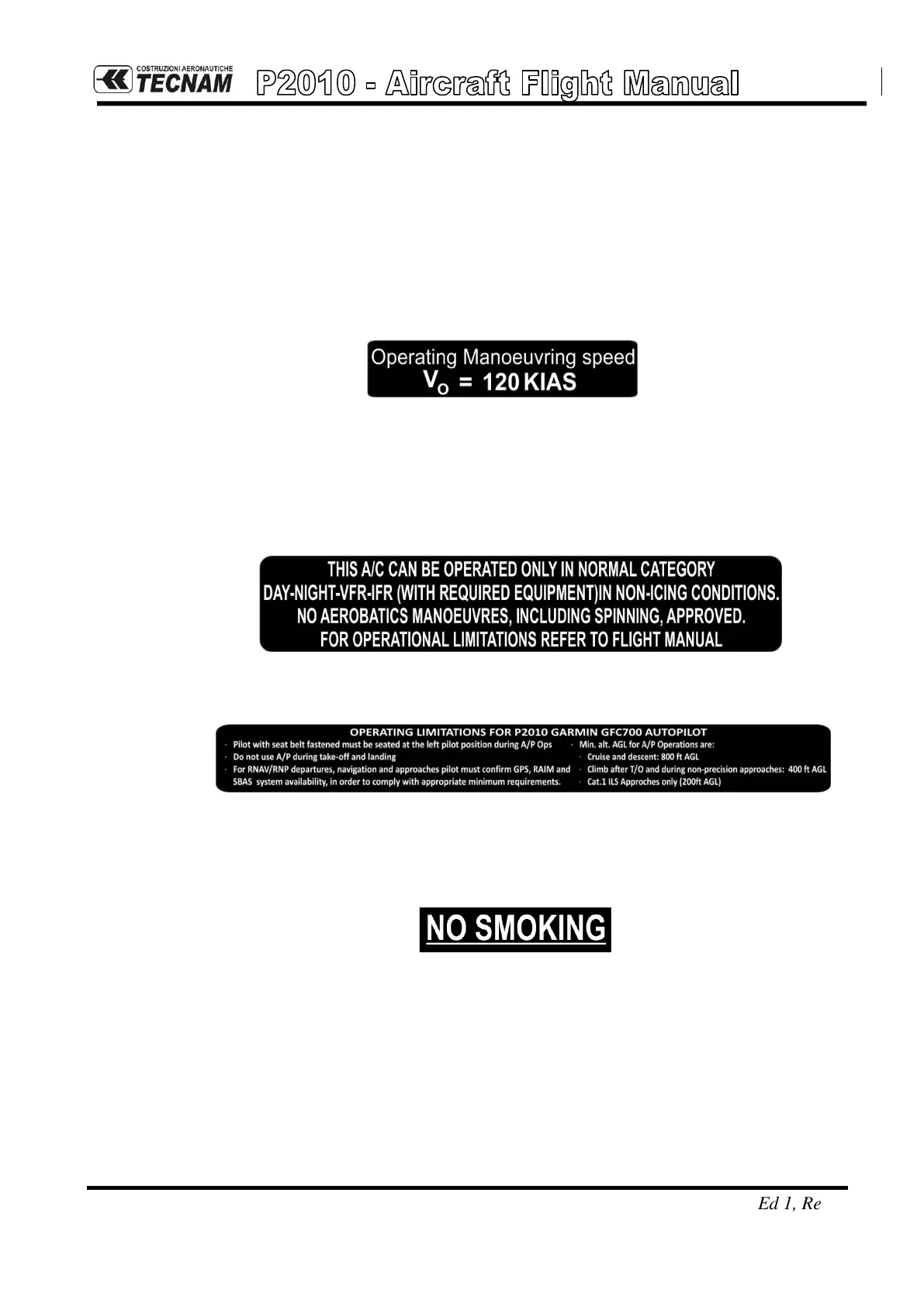

19.1 SPEED LIMITATIONS
On the left side instrument panel, above on the left, it is placed the following
placard reporting the speed limitations:
19.2 OPERATING LIMITATIONS
On the central side of the instrument panel, the following placard is placed re-
minding the observance of aircraft operating limitations according to installed
equipment configuration, see KOEL paragraph 18.
When the Autopilot is installed, next placard is added on the instrument panel to
the right of the preceding one:
19.3 NO SMOKING PLACARD
On the right hand side of the instrument panel the following placard is placed re-
minding the observance for ―no smoking‖:
