AFMS N°D07 FOR GARMIN GFC700 AUTOPILOT AND VARIABLE PITCH PROPELLER EQUIPPED
AEROPLANES
Section 7 – Airframe and Systems description -
ENGINE CONTROLS
4.2
ALTERNATE AIR
Alternate Air knob is located on the central pedestal; when the knob is fully pulled out-
ward from the instrument panel, injectors receive maximum hot air. During normal opera-
tion, the knob is set in OFF position.
4.3
DEFROST AND CABIN HEAT
Two knobs, located on the lower side of the central pedestal, allow Defrost and Cabin Heat
function. The one marked as ―Defrost and Cabin Heat‖ allows hot air to perform wind-
shield defrost and partially cabin heat.
The cabin heat control knob, when fully outward, allows cabin to receive maximum hot air.
When both cabin heat and defrost and cabin heat are pulled, air is partitioned.

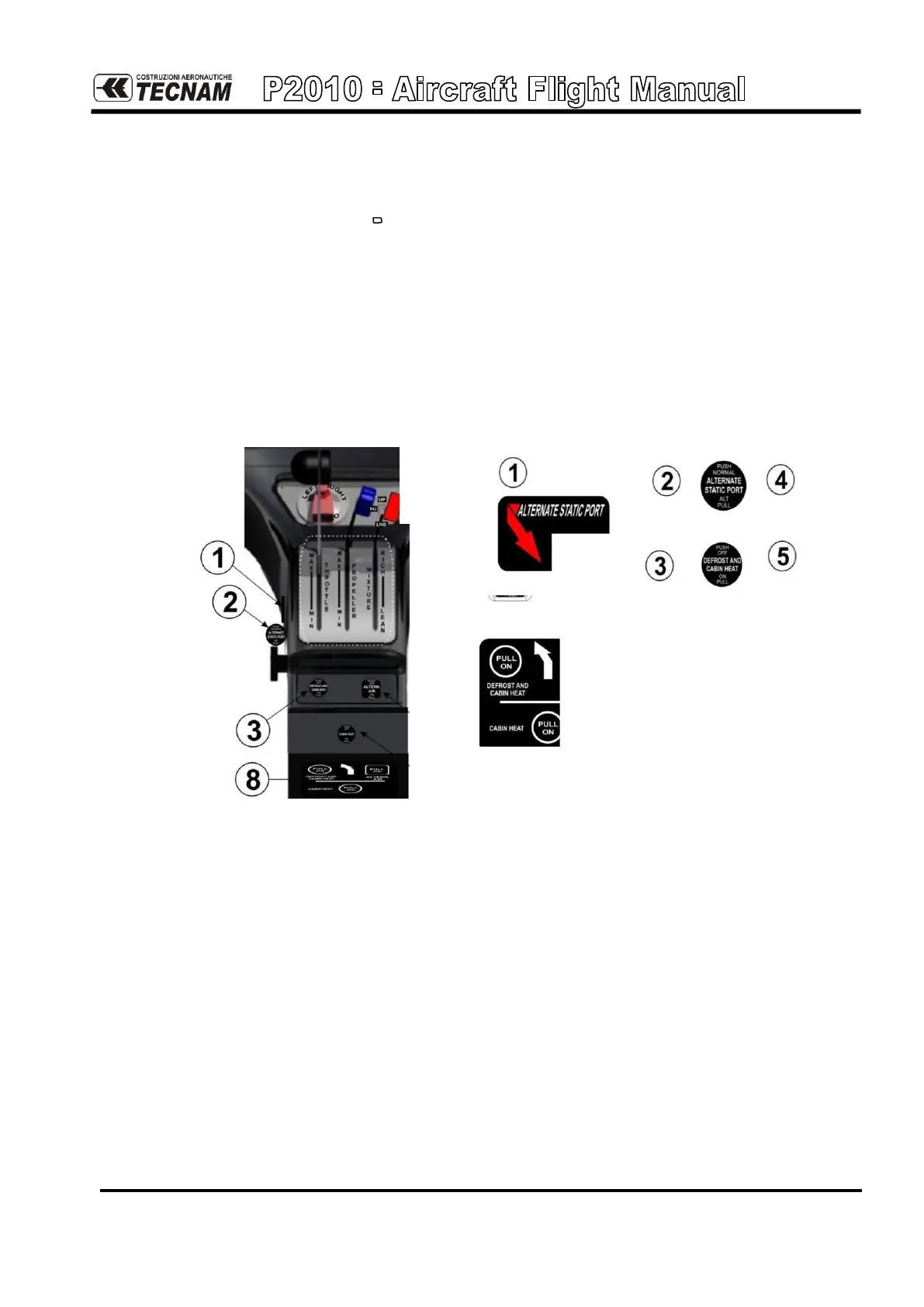

Fig. 7-9. CENTRAL PEDESTAL
