3-13

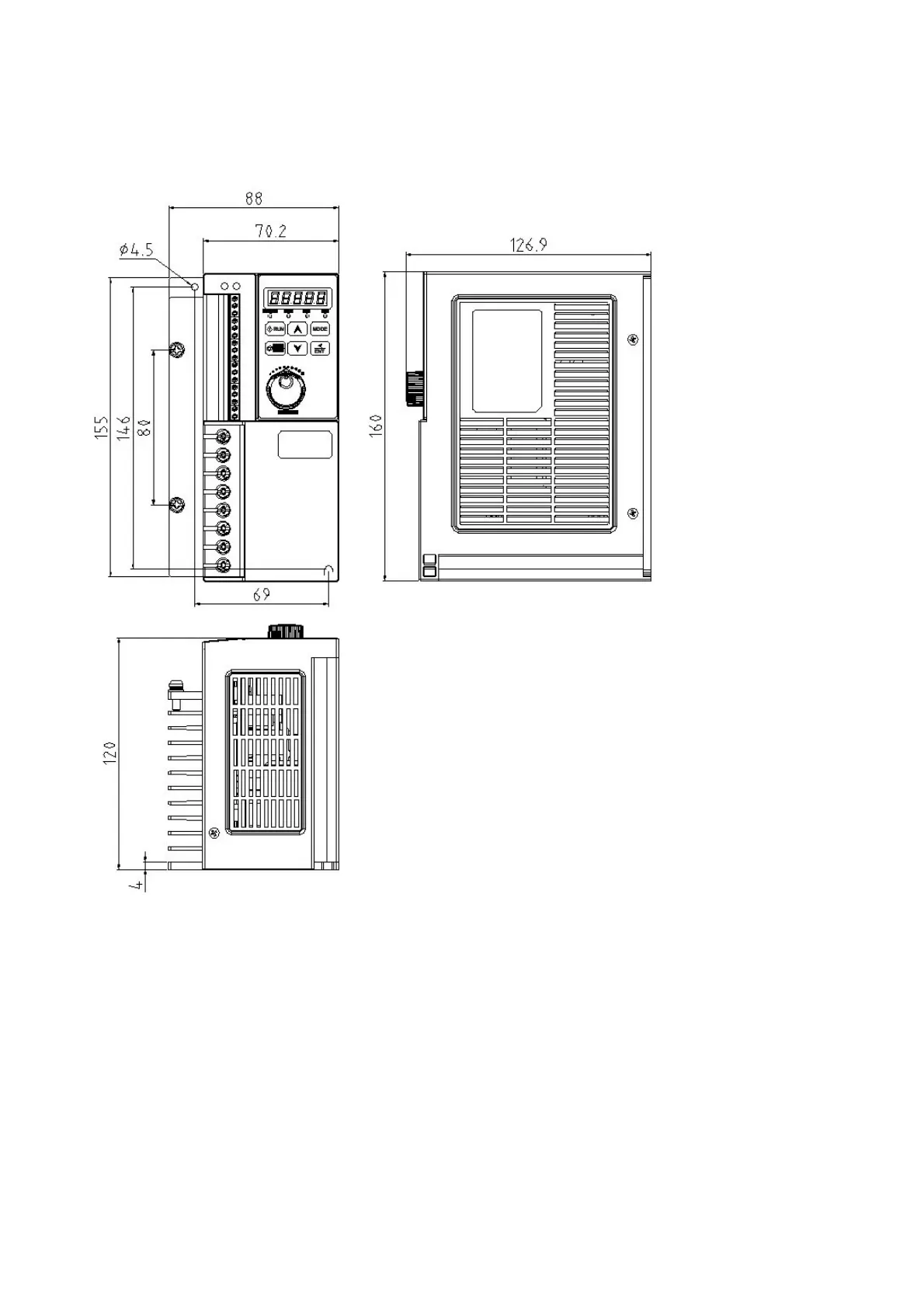

3.7 Outline Dimension (unit: mm)
1)Frame1 : Three phase : S310+-401-H3(With No Fan)
Three phase : S310+--402-H3(With Fan)
unit: mm
No dimensioning tolerance：±0.4mm
Models：S310+-401-H3
Models：S310+-402-H3
