TECO S310+ Series - Chapter 6 Peripheral Components; AC Reactor and DC Reactor Specification at Input Side; Digital Operator and Extension Cable

6-1
Chapter 6 Peripherals Components
6.1 AC reactor and DC reactor specification at input side
Model
AC inductance
at input side
Braking resistor
Specification
Braking
resistor
Duty
Cycle (%)
Braking
torque
(%)
Current
(A)
Inductance
(mH)
(W) (Ω)
Number
used
S310+-401-H3XXX
5.0 8.4 150 750 1
10 123
S310+-402-H3XXX
5.0 4.2 200 400 1
10 116
S310+-403-H3XXX
7.5 3.6 350 250 1
10 125
S310+-405-H3XXX
10.0 2.2 400 150 1
10 124

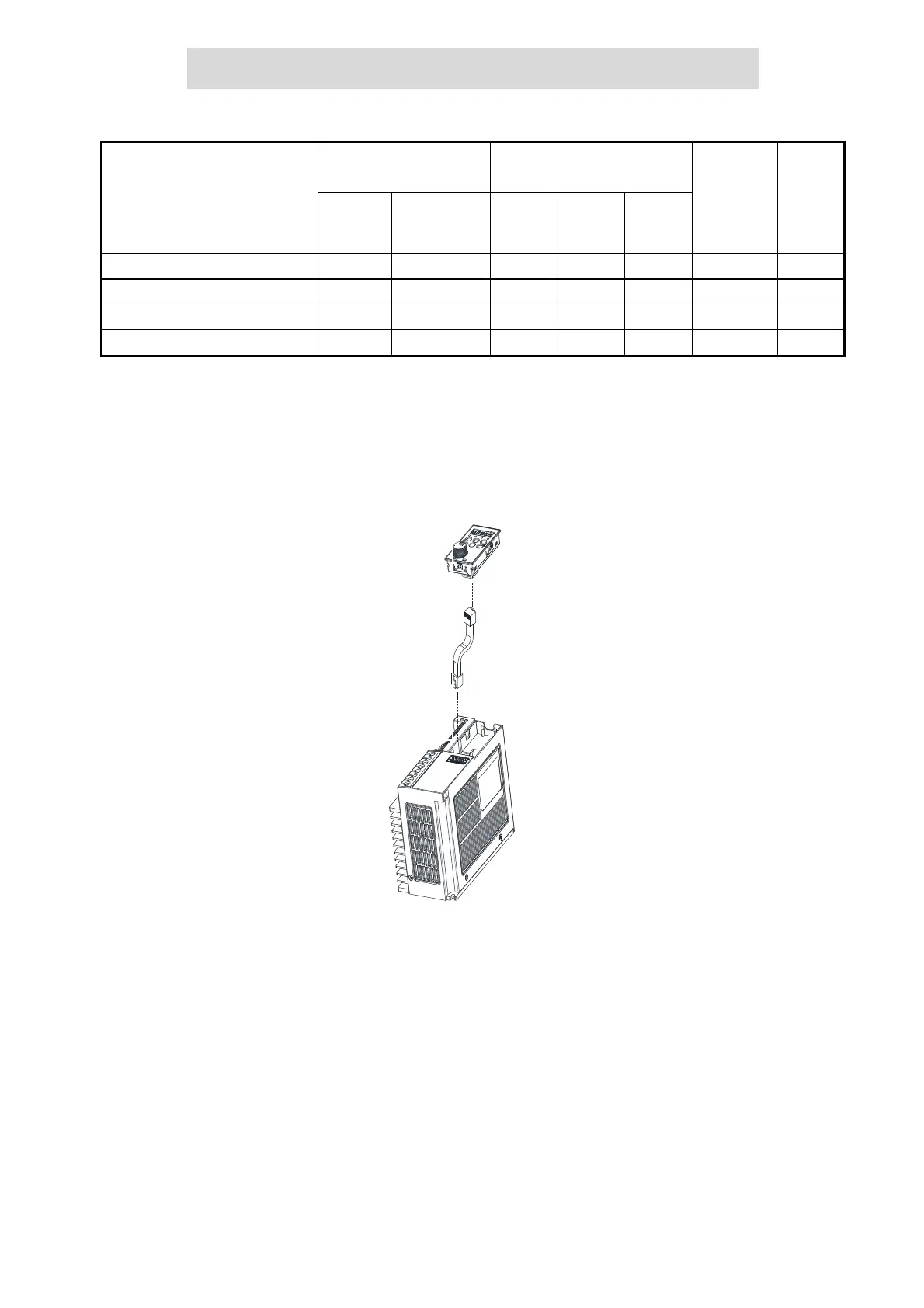

6.2 Digital operator and extension cable
S310+-401/402/403/405-H3:
B. Operation procedure:
1. Turn off the power Supply; the following procedures should be performed after there is no
display on the keypad.
2. Remove the keypad.
3. Connect the inverter and the keypad with REMOTE cable.
C. Keypad Installation Dimension Unit : mm
1. Keypad Installation Dimension
①
②
③
A. Content
1.  Inverter
2.  LED Keypad (S31DOP-02)
3.  Remote Cable for Keypad
Note： Using standard network cable
connection.
