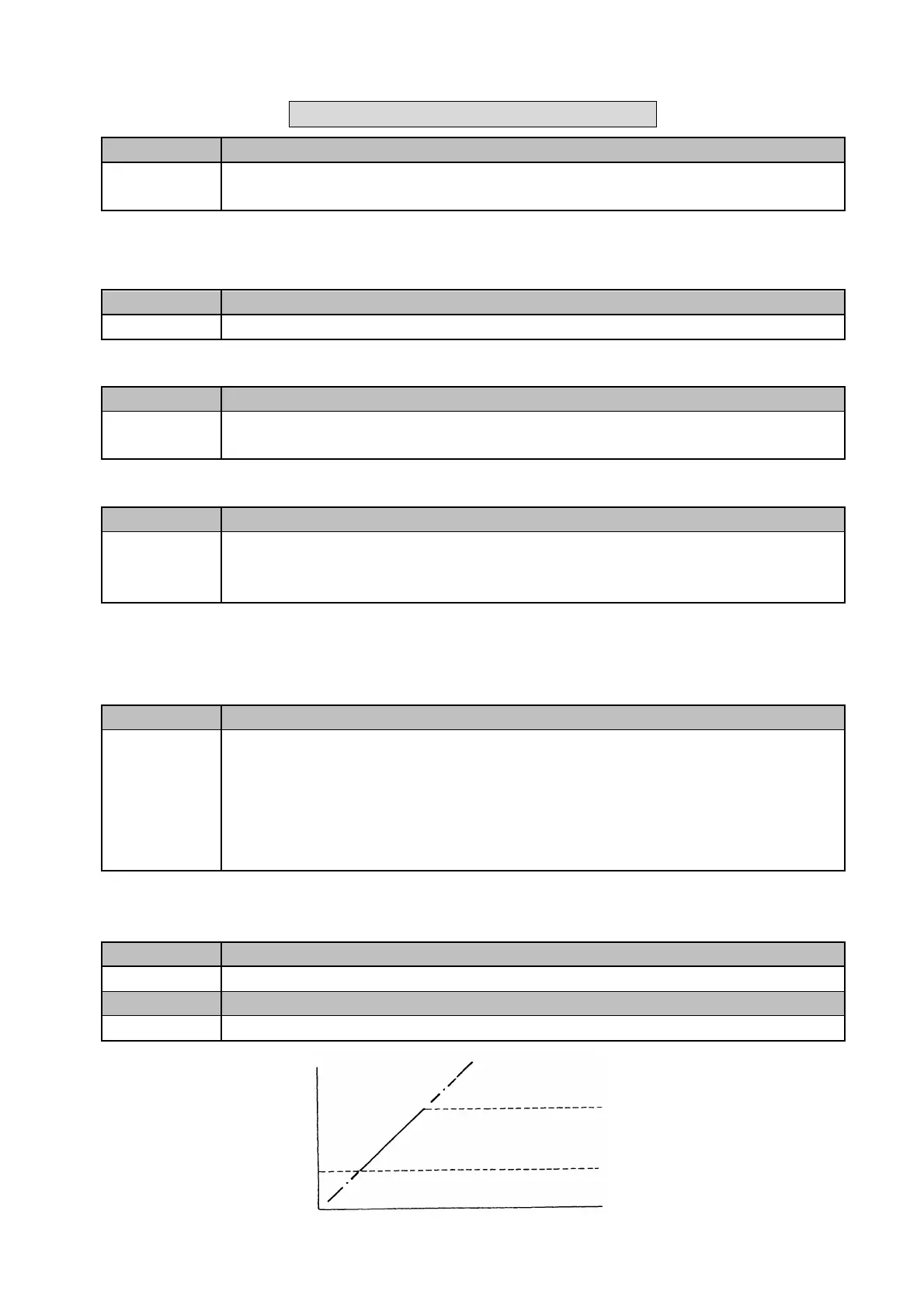

4-18
4.3 Parameter Function Description
Group0- The basic parameters group
00-00 Control Mode
range
【0】：V/F mode
【1】：Vector mode
To select the appropri ate vector control mode o r V/F mode ac cording to the load
characteristi cs.
1) If V/F mode is selected, please set parameters, group5 to comply with the load features.
2）Vector is best suited to control the general load or rapidly-changed torque load.
00- 01 Volts/Hz Patterns (V/F)
range
【1~7】
00-01= 0～6, V / F Pattern.
00-01=7,Flexiable V/F pattern, programmable according to parameters refer to group5.
00- 02 Motor rotation
range
【0】：Forward
【1】：Reverse
You can set 00-02 parameters to make a forward/reverse switch
Note：when 10-01=1：Reverse operation disable，00-02 cannot set to1，keypad display”LOC”。
00- 03 Main Run Command Source Select
range
【0】：Keypad
【1】：External Run/Stop Control
【2】：Communication
1)00-03/00-04=0，the inverter is controlled by the keypad.
2)00-03=1,the inverter is controlled by the external terminals, and the Stop key for emergency stop is operational.
Note:00-03=1,please refer to parameter 04-03 for detailed description in order to ensure safety of operators and
machines.
3)00-03=2，the inverter is controlled by Communication。
00- 05
Main Frequency Command Source Select
range
【0】：UP/DOWN of Keypad
【1】：Potentiometer on Keypad
【2】：External AVI Analog Signal Input
【3】：Communication Contro
【4】：Pulse Input
【5】：Terminal Command UP/DOWN
1) Please refer to description of parameter group 01-00 ～ 01-04 (multifunction input terminals) for the function
Up/Down terminal.
2) The priority in reading frequency is Jog> preset speed>▲▼ on keypad or Up / Down or communication control.
00-07 Frequency Upper limit
range
【0.01~400.00】Hz
00-08 Frequency Lower limit
range
【0.00~499.99】Hz
Internal frequency
00-07(Frequency Upper limit )
00-07(Frequency Lower limit )
Note
To Next Page
