4-19
※Note: When 00-08 = 0 Hz and frequency command is 0 Hz; the inverter will stop at 0 speed.
When 00-08 > 0 Hz and frequency command ≦00-08, the inverter will output the 00-08 preset value.
00-09 Acceleration time 1
range
【0.1~3600.0】 Sec
00-10 Deceleration time 1
range
【0.1~3600.0】 Sec
1) Formula for calculating acceleration and deceleration time: The denominator is base on the rated
frequency of motor.
0-09( 10-05)
acceleration time
0
deceleration time
0-10（or10-06）
00-11
Operation modes for external terminals
range
【0】Forward/stop-reverse/stop
【1】Run/stop-forward/reverse
【2】3 wire control mode -run/stop
【3】4 wire control mode -run/stop
1.) When operation command 00-03 = 1 (external terminal), 00-11 is valid.
2.) When operation command 00-03 = 1 (external terminal control), the stop button for emergency is
available.
3.) That both forward and reverse commands are ON will be treated as STOP.

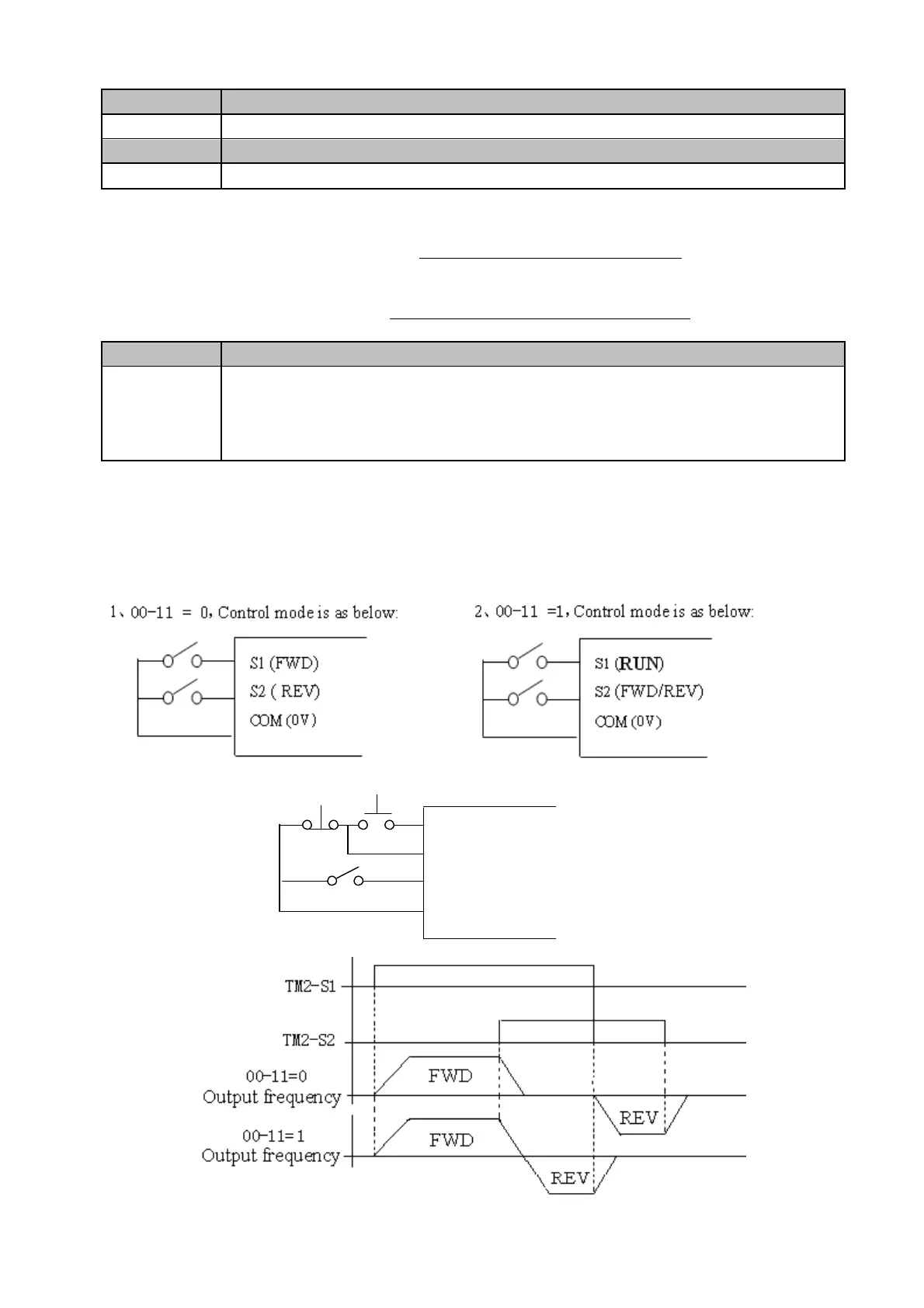

External terminals control connection mode is described below with s1, s2 and s3, set parameters 1-01(S1) =0,
1-02(S2) =1.
3、00-11 = 2, Control mode is as below:
S1 (RUN)
S2 (STOP)
S3 (FWD/REV)
COM (0V)
