4.1.4 Operational examples of Keypad
Operation Instruction of the LED keypad
The instructions for the Power and Alarm LED of the inverter are as follows:
Power indicator light:
On power up, Power LED action, otherwise Power LED Turn off
Alarm indicator light:（note1:）
a. When the inverter have mistakes which cannot be reseted, such as:
CTER,EPR,OH,LV,OV,OC，the Alarm LED flashes quickly
b. When the inverter have mistakes which can be reseted, such as:
OH-C, OV-C, OC-S, OC-d, OC-C, OC-a, OL2, OL1, the Alarm LED flashes slowly

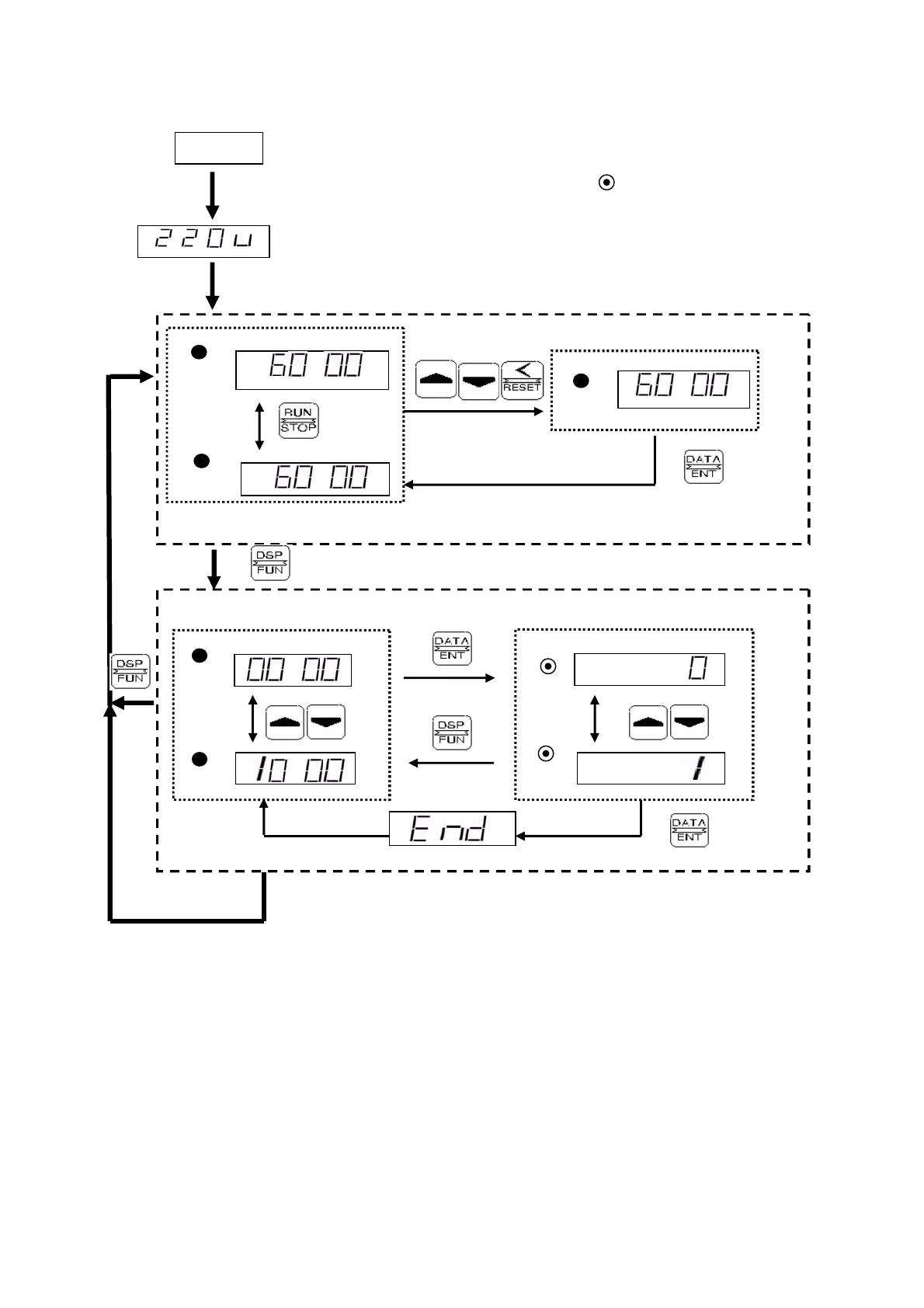

Power On
‧
‧
2 seconds later or after Enter operation signal, Press DSP to modify the display
● :LED fully Lit
:LED flashing
Hz/RPM
Hz/RPM
‧
Hz/RPM
—
—
FUN
FUN
FUN
FUN
If nothing was done in parameter list menu or parameter data menu
for 3 minutes, automatically returns to main menu(frequence menu).
