TECO S310+ Series User Manual

5-3
setting error is beyond the actual
allowable range.
according to the specified
range

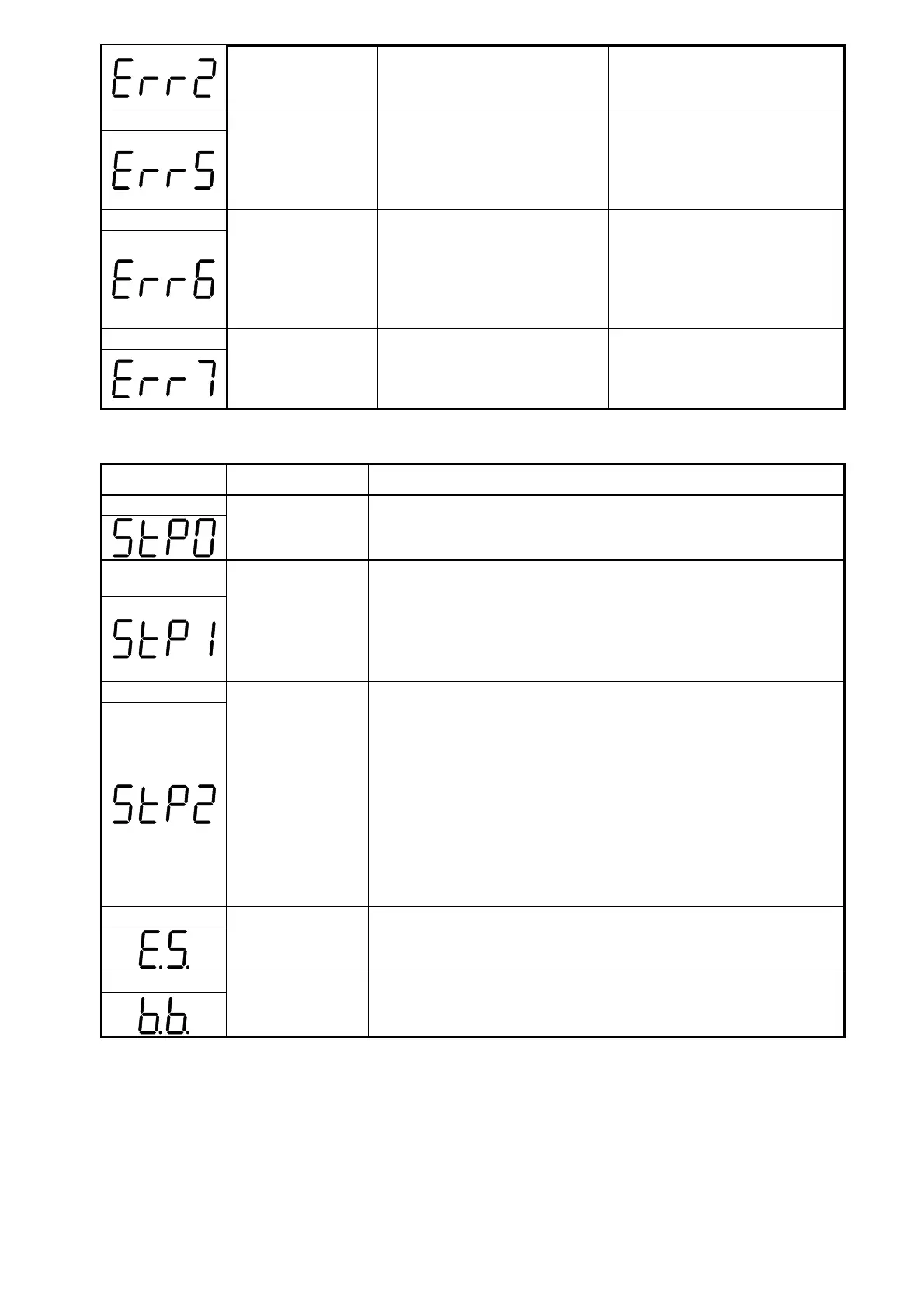

Err5
Modification of
parameter is not
available in
communication
1.
Control command sent
during communication.
2. Attempt to modify the
function 08-02 ~ 08-05
during communication.
1.
Issue enable command
before communication
2. Set parameters
08-02 ~ 08-05 function
before communication
Err6
Communication
failed
1.
Wiring error
.
2.Communication
parameter setting error.
3. Check-Sum error
4.Incorrect communication
protocol
1. Check hardware and
wiring
2.
Check Functions
08-02 ~ 08-05
Err7
Parameter
conflict
1.
Attempt to modify the
function 12-00/12-06.
2. Voltage and current
detection circuit is abnormal
If Reset is not possible,
please Return the inverter.
5.1.3 Special conditions
Display
Fault
Cause
S
t
P0
Zero speed at
stop
Occurs when preset frequency <0.1Hz
StP1
Fail to start
directly
On power up.
1.
If the inverter is set for external terminal control mode
(00-03=1) and direct start is disabled (04-09=1)
The inverter cannot be started and will flash STP1.
The run input is active at power-up, refer to descriptions of
(04-09).
2. Direct start is possible when 04-09=0。
S
t
P2
Keypad Stop
Operated
when inverter
in external
Control mode.
1. With the function of Stop key enabled by
And if the Stop key is pressed while the inverter is set to
external control mode (00-03=1) then, the inverter will stop
according to the setting of 04-01 and the error message,
‘STP2’flashes after stop. Release and re-activate the run
contact to restart the inverter.
2. If the inverter is in communication mode and the Stop key
is enabled, the inverter will stop in the way set bywhen Stop
key is pressed during operation and then flashes STP2. The
Host controller has to send a Stop command then a Run
command to the inverter for it to be restarted.
E.S.
External
Rapid stop
The inverter will decelerate to stop and then flash E.S.,
when input external Rapid stop signal via the multifunctional
input terminal activates.
b.b.
External base
block
The inverter stops immediately and then flashes b.b., when
external base block is input by the multifunctional input
terminals.
5.1.4 The instructions for the Power and Alarm LED of the inverter:
1. When the inverter have mistakes which cannot be reseted, such as: CTER, EPR, OH, LV, OV,
OC, the Alarm LED flashes quickly.
you can cut off the power of inverter, then turn it on again., if Alarm flashes the same as before,
the inverter is faulted, please Return the inverter.
2. When the inverter have mistakes which can be reseted, such as:
