Group7- Protection function group
07- 00 Stall Prevention Function
Range
【xxxx0】：Stall prevention is enabled in acceleration
【xxxx1】：Stall prevention is disabled in acceleration.
【xxx0x】：Stall prevention is enabled in deceleration.
【xxx1x】：Stall prevention is enabled in deceleration.
【xx0xx】：Stall prevention is enabled in operation.
【xx1xx】：Stall prevention is disabled in operation.
【x0xxx】：Enable over voltage Prevention in deceleration.
【x1xxx】：Disable over voltage Prevention in deceleration.
07- 01 Stall Prevention Level During Acceleration
Range
【50 ~ 200】 %
07- 02 Stall Prevention Level During deceleration
Range
【50 ~ 200】%
07- 03 Stall Prevention Level In Run Mode
Range
【50 ~ 200】%
07- 04 Over voltage Prevention Level in Run Mode
Range
【80~100】%OV
1) In acceleration, the inverter will delay the acceleration time if the time is too short resulting in the
over current in order to prevent the inverter trips.
2) In deceleration, the inverter will delay the acceleration time if the time is too short resulting in the
over voltage of DC VUS in order to prevent the inverter trips with ‘OV’ displayed.
3.)Some mechanical characteristics (such as press) or unusual breakdown (seize due to insufficient
lubrication, uneven operation, impurities of processed materials, etc.) will cause the inverter to trip,
thus inconvenience users. When the operating torque of the inverter exceeds the setting of 07-03,
the inverter will lower the output frequency following the deceleration time , and return to the normal
operation frequency after the torque get steady.

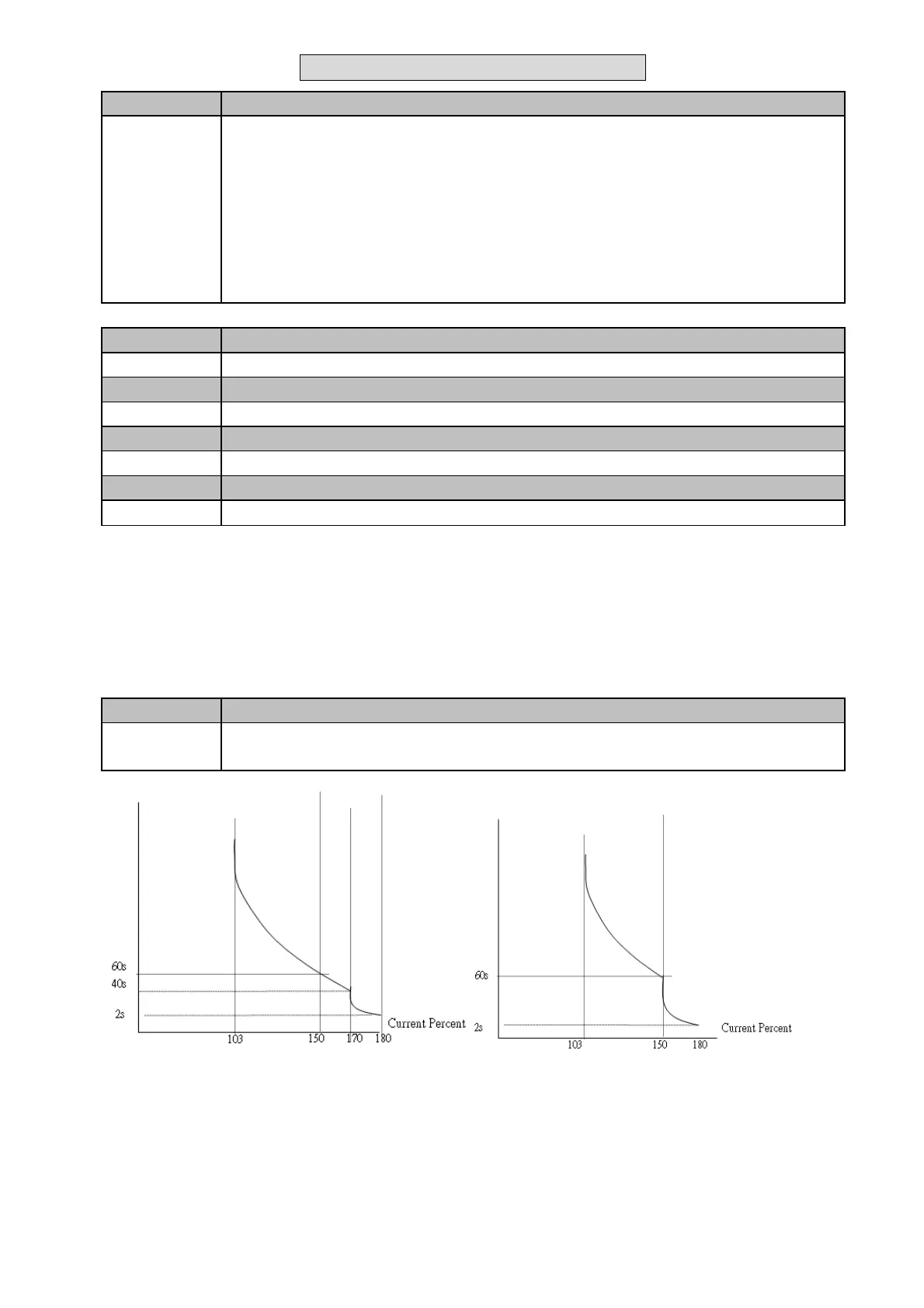

07- 05 Electronic Motor Overload Protection Operation Mode OL1
Range
【0】：Enable motor Protect by relay
【1】：Disable motor Protect by relay
401 402 OL1 curve 403 OL1 curve
