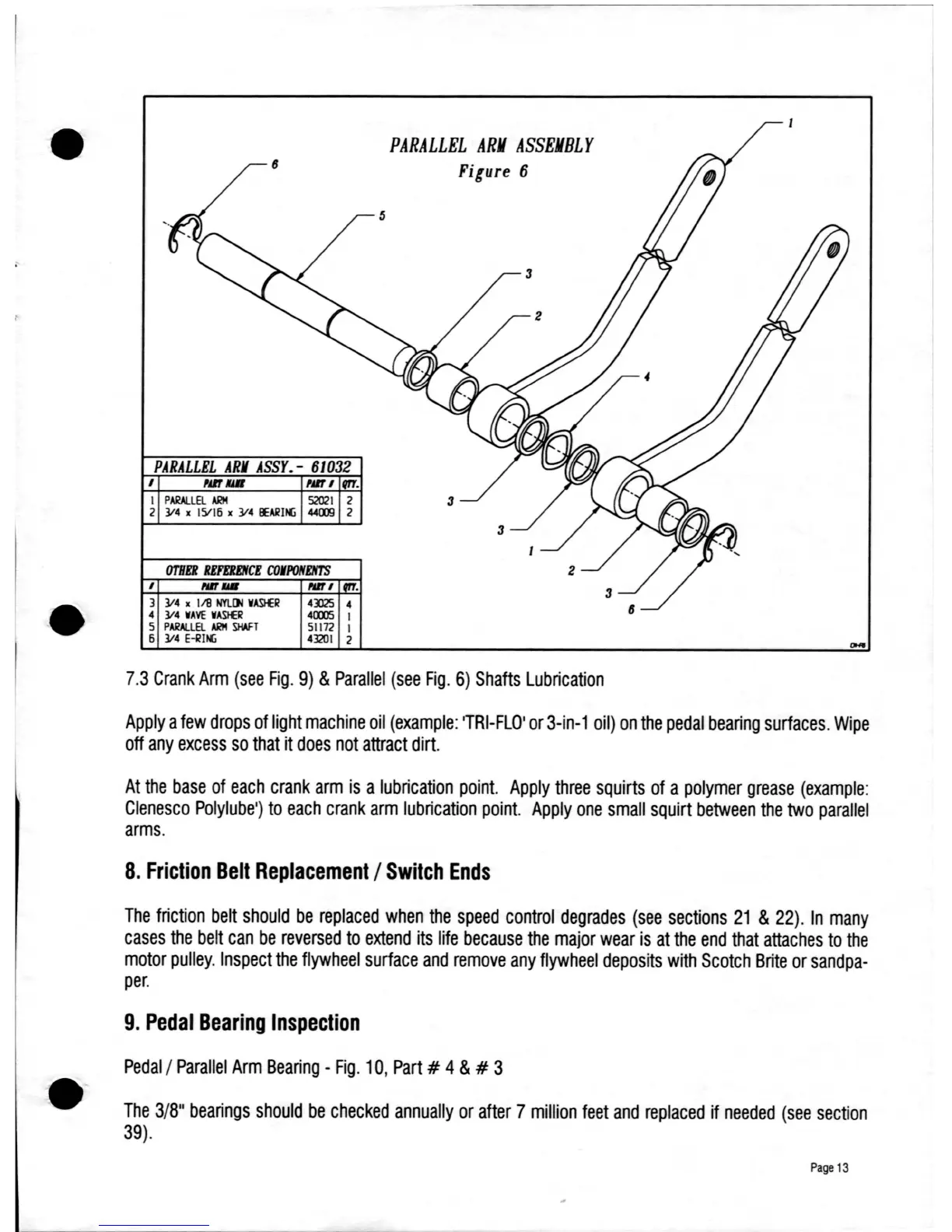

PARALLEL ARM ASSEMBLY
Fi:ure 6
5
PARALLEL ARI ASSY. - 61032
I NIr lUll 1111 I trf.
I PARAlLEl ARM 5202\ 2
2 314. \51\6 • 314 lEAl/II(; 4400!1 2
OTHER REFERENCE CO.PONEIiTS
I
,.,-
NIl I
3 314. 1111 NYLl)l W~
0)25
4
4
314 WAVE WAS!£R
4lXXJ5
\
5 PARAllR ARM SHAFT 5\172
\
6 314 E-I1II(;
43201
2
7.3 Crank Arm (see Fig. 9) & Parallel (see Fig. 6) Shafts Lubrication
Apply a few drops of light machine oil (example: 'TRI-FLO' or 3-in-1 oil) on the pedal bearing surfaces. Wipe
off any excess so that it does not attract dirt.
At the base of each crank arm is a lubrication point. Apply three squirts of a polymer grease (example:
Clenesco Polylube') to each crank arm lubrication point. Apply one small squirt between the two parallel
arms.
8. Friction Belt Replacement / Switch Ends
The friction belt should be replaced when the speed control degrades (see sections 21 & 22). In many
cases the belt can be reversed to extend its life because the major wear is at the end that attaches to the
motor pulley. Inspect the flywheel surface and remove any flywheel deposits with Scotch Brite or sandpa-
per.
9. Pedal Bearing Inspection
Pedal/Parallel Arm Bearing - Fig. 10, Part # 4&# 3
The 3/8" bearings should be checked annually or after 7 million feet and replaced if needed (see section
39).
Page 13
