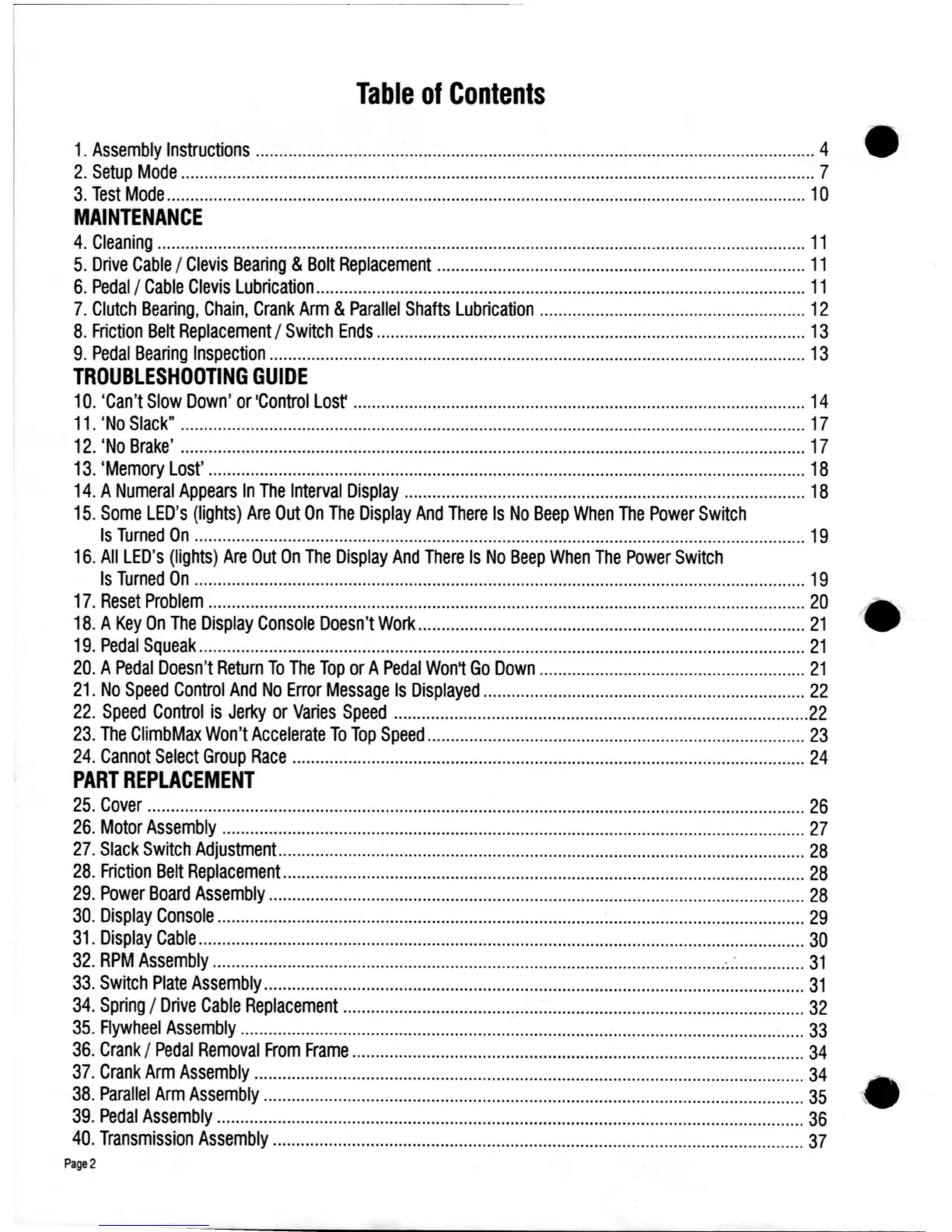

Tectrix Climbmax 150 - Table of Contents

Table of Contents
1. Assembly Instructions 4
2. Setup Mode 7
3. Test Mode 10
MAINTENANCE
4. Cleaning 11
5. Drive Cable / Clevis Bearing & Bolt Replacement 11
6. Pedal/Cable Clevis Lubrication 11
7. Clutch Bearing, Chain, Crank Arm & Parallel Shafts Lubrication 12
8. Friction Belt Replacement / Switch Ends 13
9. Pedal Bearing Inspection 13
TROUBLESHOOTING GUIDE
10. 'Can't Slow Down' or 'Control Lost 14
11. 'No Slack" 17
12. 'No Brake' 17
13. 'Memory Lost' 18
14. A Numeral Appears In The Interval Display 18
15. Some LED's (lights) Are Out On The Display And There Is No Beep When The Power Switch
Is Turned On 19
16. All LED's (lights) Are Out On The Display And There Is No Beep When The Power Switch
Is Turned On 19
17. Reset Problem 20
18. A Key On The Display Console Doesn't Work 21
19. Pedal Squeak 21
20. A Pedal Doesn't Return To The Top or A Pedal Won't Go Down 21
21. No Speed Control And No Error Message Is Displayed 22
22. Speed Control is Jerky or Varies Speed 22
23. The ClimbMax Won't Accelerate To Top Speed 23
24. Cannot Select Group Race 24
PART REPLACEMENT
25. Cover 26
26. Motor Assembly 27
27. Slack Switch Adjustment 28
28. Friction Belt Replacement 28
29. Power Board Assembly 28
30. Display Console 29
31. Display Cable 30
32. RPM Assembly :.: 31
33. Switch Plate Assembly 31
34. Spring / Drive Cable Replacement 32
35. Flywheel Assembly 33
36. Crank / Pedal Removal From Frame 34
37. Crank Arm Assembly 34
38. Parallel Arm Assembly 35
39. Pedal Assembly 36
40. Transmission Assembly 37
