18. A Key On The Display Console Doesn't Work
While in normal operating mode, test the keys by pressing them. If a key is good, the display will beep when
the key is pressed. To test the keypad for shorted keys, put the climber in Test Mode (see section 3). Press
each key individually. Each key will have its own distinctive beep. If one or more keys do not work or if two
keys have the same pitch (the keys are shorted together), substitute a known good key panel ovenay and
test. If they still do not work, replace the display board (see section 30).
19. Pedal Squeak
A squeak in the pedal generally means that one of the sleeve bearings in the pedal, crank arm or parallel
arm has become dry. Since it is almost impossible to determine which bearing is squeaking, it is best to
lube them all (see section 6& 7).
20. A Pedal Doesn't Return To The Top or A Pedal Won't Go Down
Remove the cover (see section 25) and inspect the chain (verify there are no foreign objects in the chain),
springs and cables (see section 34 and Fig. 7). Check that the clutch pulley will freewheel (see Fig. 11).
•
•
TRANSIISSION ASSY. - 61017
I NIl lUI NIl I ",.
I ClUTCH SHAFT 51049 I
2
SPIi!lD:ET - 40 TOOTH 51026 I
3
[WTCH PlLlEY ASSEI&. Y 61009 2
4 HeIST IaRII(; - I· x 118" 44002 3
5
WASI£I1 - I· x 1132" 44020 5
6
WAVE SPI1II(; WASI£I1 - I" 4l1lO4 I
7
lEAl/II(; - I" x I" FLAIG 44031 I
B
RETAINII(; 1111(; - 25M H~lIi I

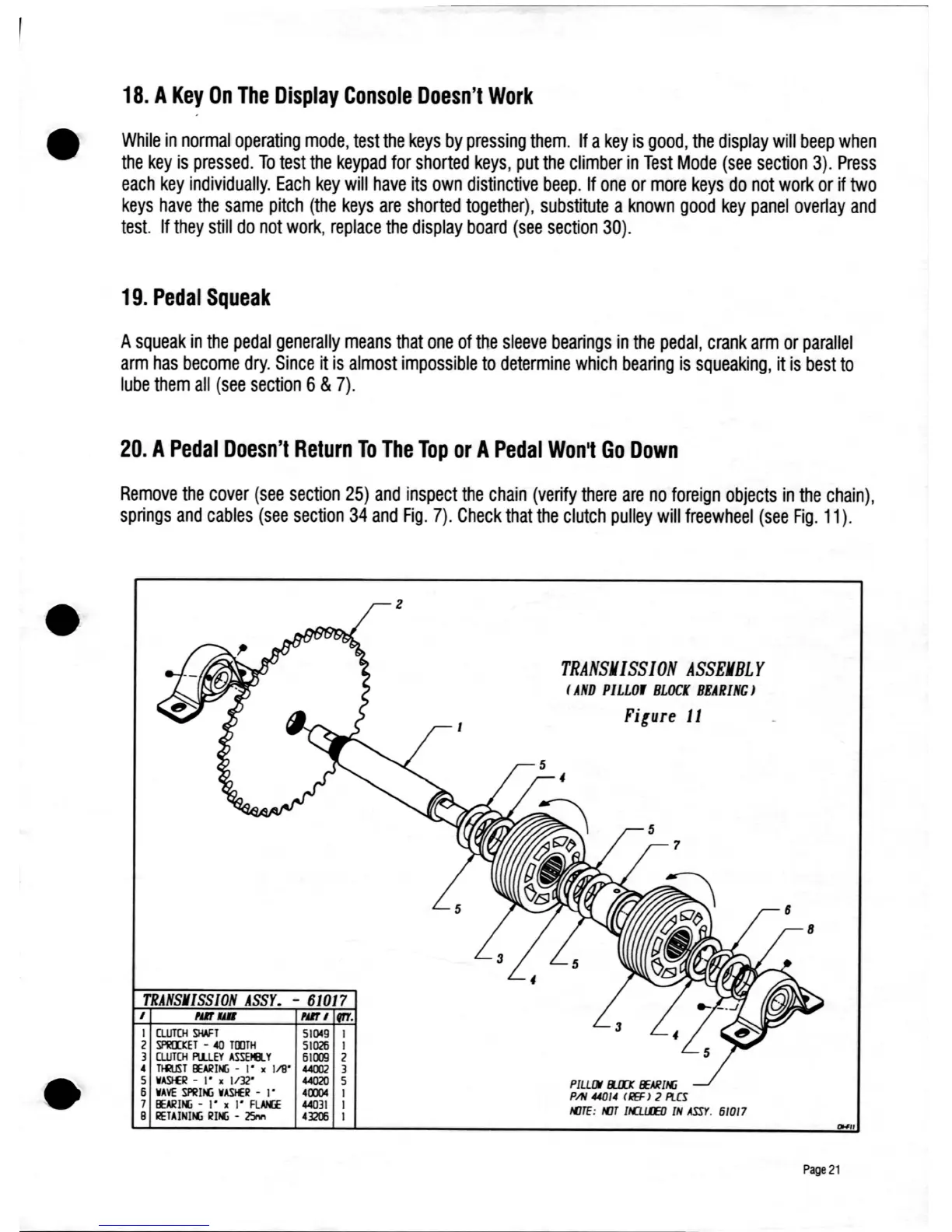

TRANSMISSION ASSEMBLY
(AND PILLOf BLOCK BEARING)
Fiture 11
PILLCM El.IU £EARl/Ii
PAl 44014 (fi!£f) :; PlCS
MITE: MIT IMJ.lIED IN Am. 61017
/H/I
Page 21
