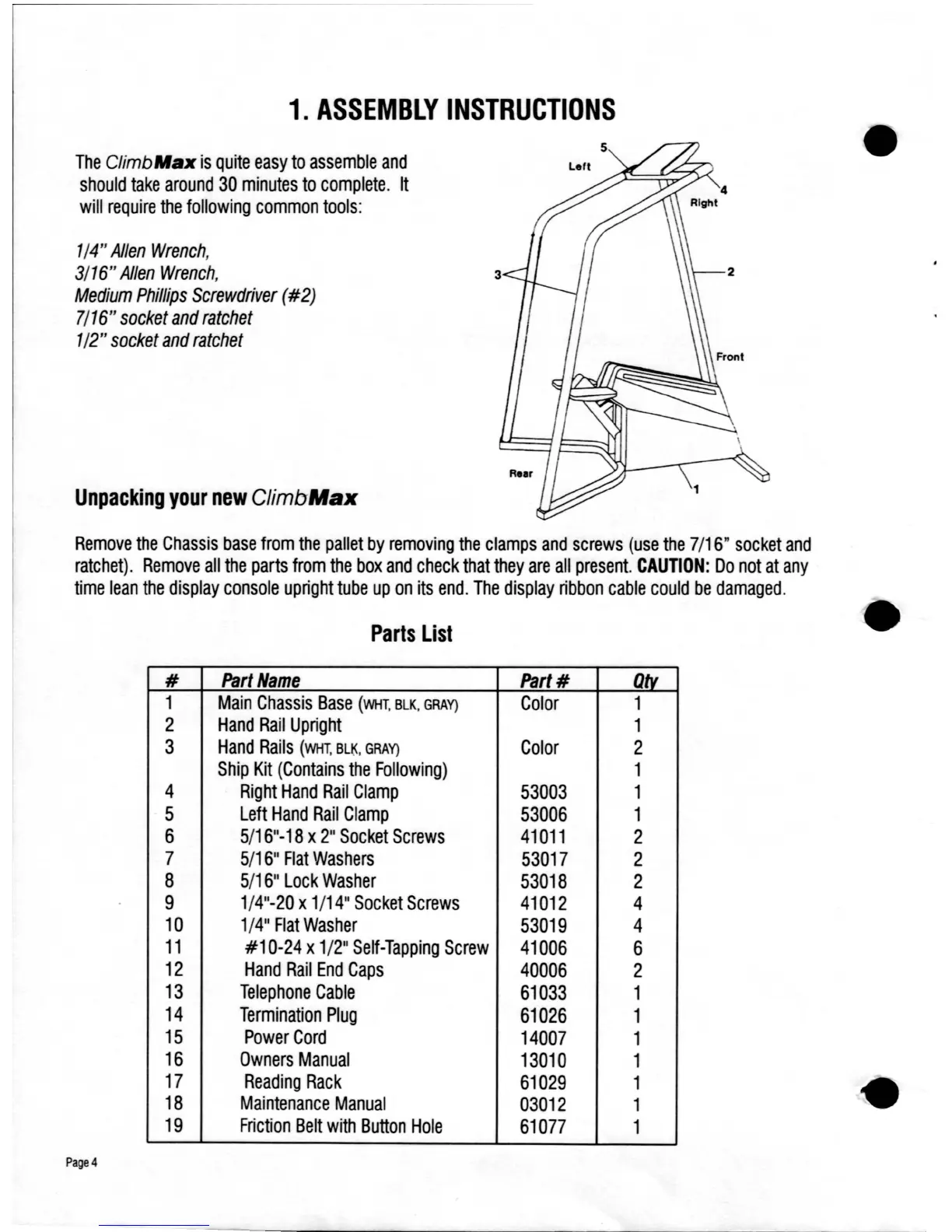

1. ASSEMBLY INSTRUCTIONS
The ClimbMax is quite easy to assemble and
should take around 30 minutes to complete. It
will require the following common tools:
1/4" Allen Wrench,
3/16" Allen Wrench,
Medium Phillips Screwdriver (#2)
7/16" socket and ratchet
1/2" socket and ratchet
Unpacking your new ClimbMaJC
Remove the Chassis base from the pallet by removing the clamps and screws (use the 7/16" socket and
ratchet). Remove all the parts from the box and check that they are all present. CAUTION: Do not at any
time lean the display console upright tube up on its end. The display ribbon cable could be damaged.
Parts List
#
Part Name Part #
atv
1
Main Chassis Base (WHT, BLK, GRAY)
Color
1
2
Hand Rail Upright 1
3
Hand Rails (WHT, BLt<, GRAY) Color 2
Ship Kit (Contains the Following) 1
4 Right Hand Rail Clamp
53003
1
5
Left Hand Rail Clamp
53006
1
6
5/16"-18 X 2" Socket Screws 41011 2
7 5/16" Flat Washers 53017 2
8
5/16" Lock Washer 53018 2
9
1/4"-20 X 1/14" Socket Screws 41012 4
10 1/4" Flat Washer
53019 4
11
#10-24 x 1/2" Self-Tapping Screw 41006
6
12 Hand Rail End Caps
40006
2
13
Telephone Cable
61033 1
14 Termination Plug
61026 1
15 Power Cord
14007
1
16 Owners Manual
13010
1
17 Reading Rack
61029
1
18 Maintenance Manual
03012 1
19 Friction Belt with Button Hole
61077
1
Page 4
•
