Tectrix Climbmax 150 - Spring Cable Routing

................
SPRING CABLE ROUTING
I 'AIr'UI ,AIr I fTY.
1 PEDAL RETlRN SPRIt(i 40027 2
2 ~IVE CAIl.E (3/8" CLEVIS) 51045 2
3 PEDAL RETlRN CAIl.E 45007 2
4 CLUTCH Pll.LEY 61009 2
5 RIGHT CRAN( ARM 61147 1
6 RIGHT PARALLEL ARM 61032 1
7 SPRIt(i Pll.LEY 05036 4
8 SPRIt(i Pll.LEY AXLE 51009 2
9
SPACER 3/8" X 3116" 43041 2
10 SPACER 3/8" x I" 43123 4
II PUSH NUT 42020 4
SEE DETAIL A
11
DETAIL A
<TYPICAL 2 PLCS)
---------7 ~
----
---------- --
\

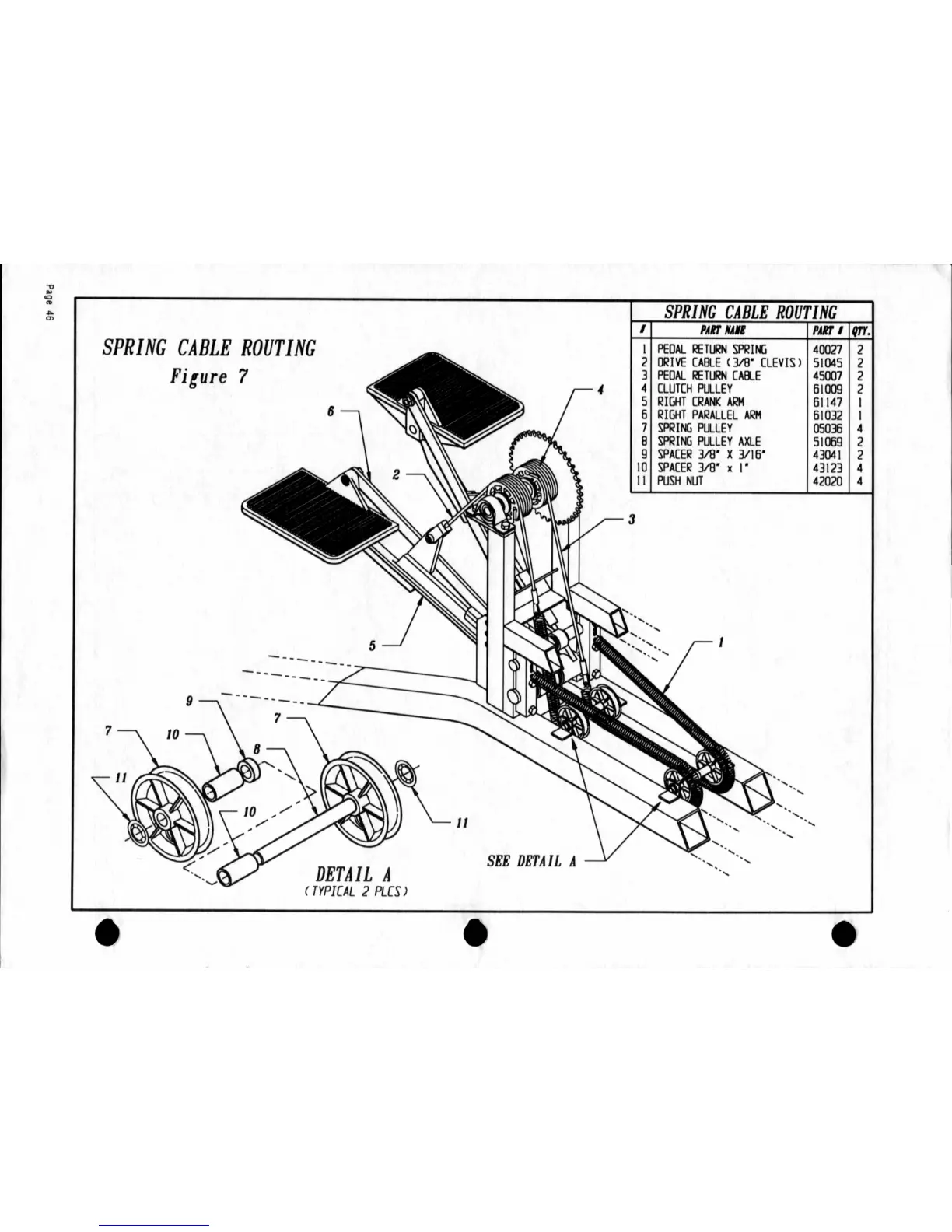

SPRING CABLE ROUTING
Fi~ure 7
