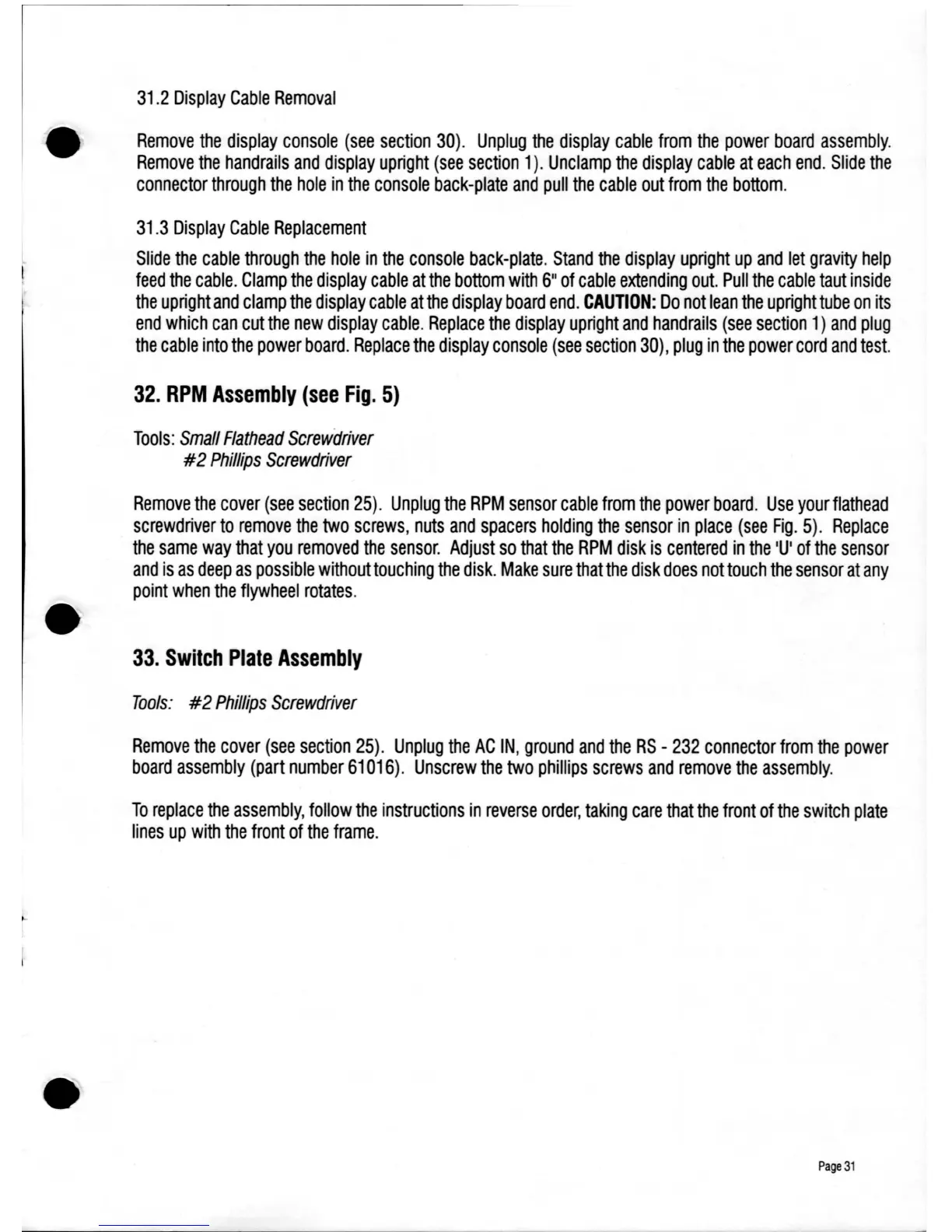

31.2

Display

Cable

Removal

Remove

the

display

console

(see

section

30).

Unplug

the

display

cable

from

the

power

board

assembly.

Remove

the

handrails

and

display

upright

(see

section

1).

Unclamp

the

display

cable

at

each

end.

Slide

the

connector

through

the

hole

in

the

console

back-plate

and

pull

the

cable

out

from

the

bottom.

31.3

Display

Cable

Replacement

Slide

the

cable

through

the

hole

in

the

console

back-plate.

Stand

the

display

upright

up

and

let

gravity

help

feed

the

cable.

Clamp

the

display

cable

at

the

bottom

with

6"

of

cable

extending

out.

Pull

the

cable

taut

inside

the

upright

and

clamp

the

display

cable

at

the

display

board

end.

CAUTION:

Do

not

lean

the

upright

tube

on

its

end

which

can

cut

the

new

display

cable.

Replace

the

display

upright

and

handrails

(see

section

1)

and

plug

the

cable

into

the

power

board.

Replace

the

display

console

(see

section

30),

plug

in

the

power

cord

and

test.

32.

RPM

Assembly

(see

Fig.

5)

Tools:

Small

Flathead

Screwdriver

#2

Phillips

Screwdriver

Remove

the

cover

(see

section

25).

Unplug

the

RPM

sensor

cable

from

the

power

board.

Use

your

flathead

screwdriver

to

remove

the

two

screws,

nuts

and

spacers

holding

the

sensor

in

place

(see

Fig.

5).

Replace

the

same

way

that

you

removed

the

sensor.

Adjust

so

that

the

RPM

disk

is

centered

in

the

'U'

of

the

sensor

and

is

as

deep

as

possible

withouttouching

the

disk.

Make

sure

thatthe

disk

does

not

touch

the

sensor

at

any

point

when

the

flywheel

rotates.

33.

Switch

Plate

Assembly

Tools:

#2

Phillips

Screwdriver

Remove

the

cover

(see

section

25).

Unplug

the

AC

IN,

ground

and

the

RS

-

232

connector

from

the

power

board

assembly

(part

number

61016).

Unscrew

the

two

phillips

screws

and

remove

the

assembly.

To

replace

the

assembly,

follow

the

instructions

in

reverse

order,

taking

care

that

the

front

of

the

switch

plate

lines

up

with

the

front

of

the

frame.

Page

31
